Leviton Compact Telephone Security & Video Panel

Compact Series With Space-Saving Profile

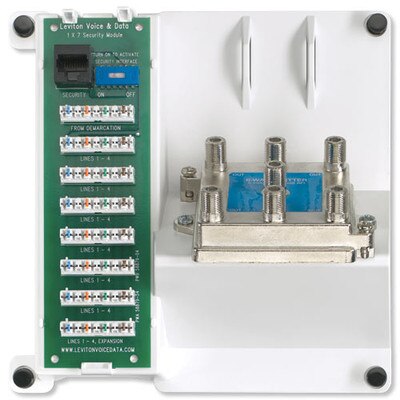

Leviton's Compact Series Telephone Security and 6-way Video Panel combines a Telephone Security Board and a 6-way 1 GHz Video Splitter in a dedicated plastic bracket for essential telephone and video distribution. It handles up to four telephone lines through to seven telephone connections with security interface. It also features video output for up to six video connections.

• Offers essential telephone and video distribution.
• Handles up to 4 telephone lines through to 9 locations and routes video to 6 locations.
• Fits in to any Leviton Structured Media enclosure or used as a stand-alone unit.

Compact pre-configured structured cabling panels from Leviton are simple solutions for basic telephone and TV distribution in multi-dwelling units and apartments or any place where space and budgets are a priority.

Compact Pre-Configured Panel Includes:

• Telephone Security Module: 1
• 6-Way Video Splitter: 1
• Mounting Bracket

Leviton Connected Home

The Connected Home is a requirement of modern living. Access to music, movies, entertainment, and information has never been easier, and a Leviton Connected Home system makes it possible to make the most of that access – individually or as a group – while being sure to safeguard access and maximize bandwidth performance. Leviton Connected Home solutions equip both single family homes and multifamily dwellings with enterprise-grade connectivity networks to provide the technologically-integrated homes that today's consumers expect, and that only a wired connection can ensure.

Design Considerations

• Determine outlet locations and carefully plan cable routing to ensure the selected unit satisfies requirements.
• Install 75 Ohm termination caps on unused outputs of 6-way 1 GHz Video Splitter to reduce signal distortion or hosting.
• Use Video Amplifier for increased signal strength.
• Supports security systems via RJ-45 style interface with on/off (bypass) switch.

Technical Details

• Manufacturer Part #: 47603-TSV
• 1x7 Telephone Security Board: 1
• 6-Way Video Splitter: 1
• Standards and Certifications: TIA/EIA-568-A and FCC Part 68 compliant.
• Warranty: 2 Year Limited

Mechanical

• Telephone Security: 7 110-IDC, 1 RJ45 Security, 1 RJ45 Expansion
• Video Splitter: 1 F-Type Female Input, 6 F-Type Female Output
  • Video Splitter Frequency: 1 GHz

  Materials

  • Bracket: ABS plastic, white.
  • 1x7 Telephone Security Board: Printed circuit board with seven bridged 4-pair 110-Type IDC connectors and security jack with switch.
  • 6-way 1 GHz Video Splitter: Die-cast housing and printed circuit board construction.

  Dimensions

  • Bracket: 6.55"H x .6.55"W x 3.01"D
  • 1x7 Telephone Security Board: 5.8"H x 3.5"W x .063"D
  • 6-way 1 GHz Video Splitter: 3.0"H x 6.58"W x 1.4"D
  • Insertion Loss: 10.0dB – 12.1dB
  • Return Loss: 6.5dB – 23.5dB
  • Isolation: 28.9dB – 37.5dB
