Leviton 1x7 Telephone Security Module

Support Security Systems

The 1x7 Telephone Security Module bridges up to four telephone lines through to seven outlet locations. It allows operation of up to seven separate telephones per line and a security interface. It is suitable for phone, fax or modem applications.

• Allows up to seven separate telephone connections, four lines each.
• Supports security systems via RJ-45 style interface with on/off (bypass) switch.
• RJ-45 Port for Security interface.
• RJ-45 Expansion Port.
• Fits into any Leviton Structured Media enclosure.

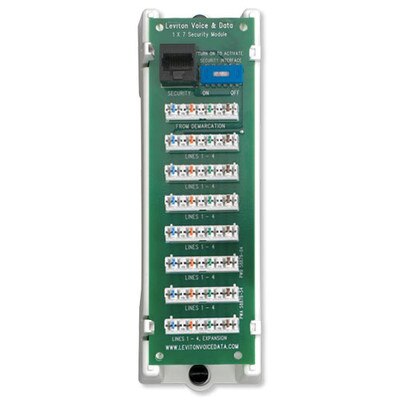

This stand-alone module includes the expansion board mounted on an ABS plastic bracket.

Leviton Connected Home

The Connected Home is a requirement of modern living. Access to music, movies, entertainment, and information has never been easier, and a Leviton Connected Home system makes it possible to make the most of that access – individually or as a group – while being sure to safeguard access and maximize bandwidth performance. Leviton Connected Home solutions equip both single family homes and multifamily dwellings with enterprise-grade connectivity networks to provide the technologically-integrated homes that today’s consumers expect, and that only a wired connection can ensure.

• Dimensions: 6.568"H x 2.132"W x 2.184"D
• Mechanical Specifications: 7 110-IDC, 1 RJ45 Security, 1 RJ45 Expansion
• Standards and Certifications: UL
• Warranty: 2 Year Limited

»Leviton 47609-TSV 1x7 Telephone Security Module Instruction Manual (.pdf)
»Leviton 47609-TSV 1x7 Telephone Security Module Data Sheet (.pdf)
