Leviton Telephone Patching Board

Route Phone Service To Remote Locations

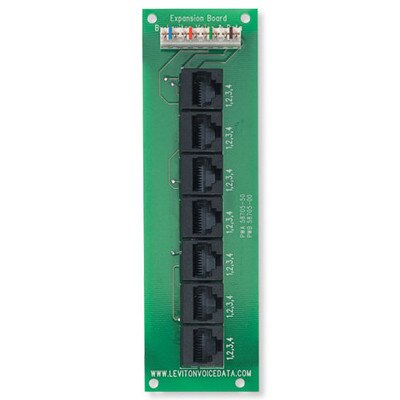

The Telephone Patching Expansion Board allows you to route telephone service to remote locations. It features a 110-Type IDC connector that brings telephone service in, distributing the line to seven RJ-45 ports. Expand your system by linking the Patching Expansion Board to additional modules, such as Leviton's Cat5e Voice & Data Board or Telephone Line Distribution Board. It is suitable for phone, fax or modem.

• 4-line bridged module with patching via modular plug, not 110 IDC punchdown
• Use with Cat5e Voice and Data Board and/or Telephone Line Distribution Board.
• Fits into any Leviton Structured Media enclosure.

Leviton expansion boards mount in structured media panel mounting brackets (sold separately).

Leviton Connected Home

The Connected Home is a requirement of modern living. Access to music, movies, entertainment, and information has never been easier, and a Leviton Connected Home system makes it possible to make the most of that access – individually or as a group – while being sure to safeguard access and maximize bandwidth performance. Leviton Connected Home solutions equip both single family homes and multifamily dwellings with enterprise-grade connectivity networks to provide the technologically-integrated homes that today's consumers expect, and that only a wired connection can ensure.

• Manufacturer Part #: 47609-EMP
• Dimensions: 5.75"H x 1.75"W x .63"D
• Mechanical Specifications: One 110-Type IDC Bridged to 7 8P8C/RJ45 Conn
• Standards and Certifications: UL
• Warranty: 2-Year Limited

»Leviton 47609-EMP Telephone Patching Expansion Board Instruction Manual (.pdf)
»Leviton 47609-EMP Telephone Patching Expansion Board Data Sheet (.pdf)
