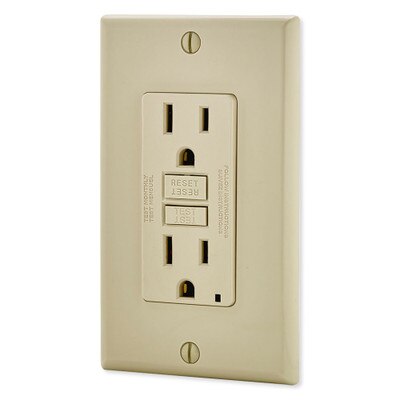

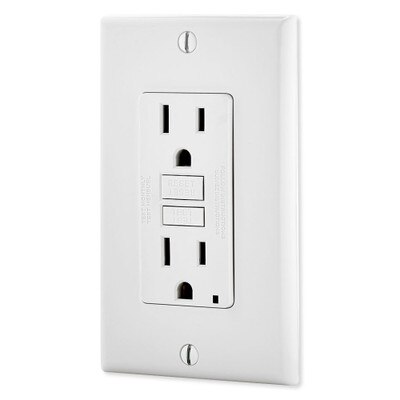

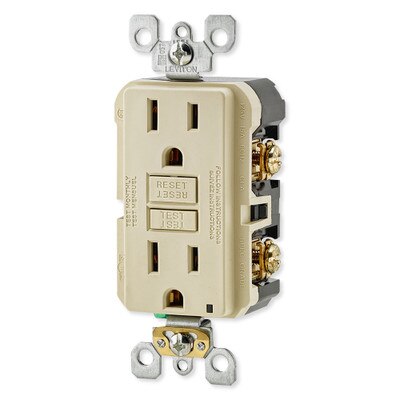

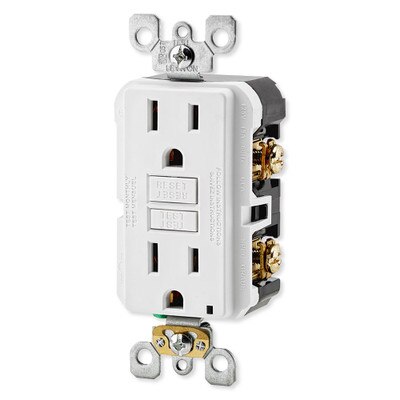

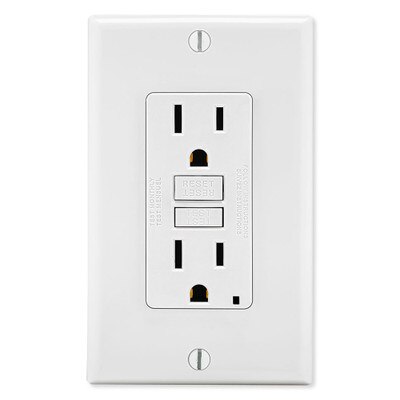

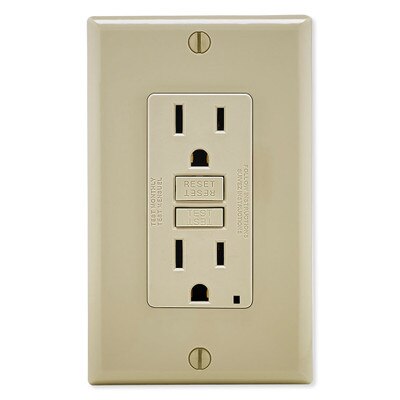

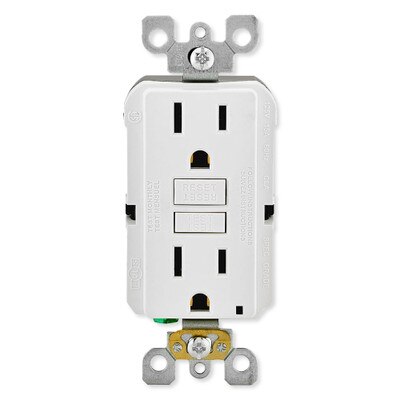

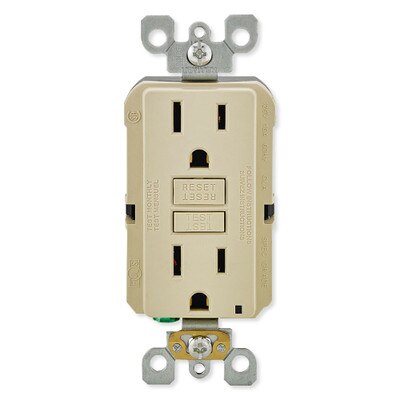

Leviton SmartlockPro Slim GFCI Receptacle, 15A
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Smart Protection for Electrical Applications
The Leviton SmartlockPro Self-Test GFCI Receptacle, 15A protects your wiring and your plug-in appliances from electrical surges and mishaps. This smart outlet routinely checks the status and safety of connected wires and plug-in appliances and indicates its power status with built-in LEDs.
- Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 seconds
- Indicator LED light displays on power and protection status as well as indication of line/load reversal
- Shallow design makes it easy to install in most electrical boxes
- Back and Side wire terminals allow for easy wiring options
- External back wire clamps provide visual indication of proper wire seating
The SmartlockPro Slim GFCI Receptacle routinely conducts an automatic internal test to protect against ground faults and damaged electrical wiring. In the event of an electrical malfunction, or if the outlet is not properly wired, Leviton's patented reset lockout mechanism prevents reset of the GFCI.
About Leviton
Leviton is the smart choice, providing the most comprehensive range of solutions to meet the needs of today's residential, commercial and industrial buildings. Leveraging more than a century of experience, Leviton helps customers create sustainable, intelligent environments through its electrical wiring devices, network and data center connectivity solutions, and lighting energy management systems. From switches and receptacles, to daylight harvesting controls, networking systems, and equipment for charging electric vehicles, Leviton solutions help customers achieve savings in energy, time and cost, all while enhancing safety.
Specifications
- Manufacturer Part #:
- Ivory: GFNT1-FI
- White: GFNT1-FW
- Electrical Ratings:
- Amperage: 15 A
- Rated Voltage: 1 HP, 125 VAC
- Grounding: Self-Grounding
- NEMA: 5-15R
- Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
- Short Circuit Current Rating: 10KA
- Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
- Trip Level: Class A, 5mA plus or minus 1mA
- Environmental Specifications:
- Flammability: Rated V-2 per UL 94
- Operating Temperature: -35°C to +66°C ( -31°F to 150°F)
- Material Specifications:
- Body Material: Polycarbonate
- Face Material: Thermoplastic
- Grounding Screw: Plated Steel
- Strap Material: Galvanized Steel
- Terminal Screws: Plated Steel
- Yoke: Zinc-Plated Steel
- Clamps: Brass
- Termination: Back & Side
- Line Contacts: Brass Double Wipe .031 Thick
- Mechanical Specifications:
- Terminal Accommodation: 14-10 AWG
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Feature: Self-Test
- Tamper Resistant: No
- Standards and Certifications:
- ANSI: C-73, CSA C22.2 No. 42, CSA-C22.2 No. 144.1-06: File LR-57811, Fed Spec WC-596, MIL-SPEC: A-A-55459-SB, NOM, UL498
- Warranty: 2-Year Limited
