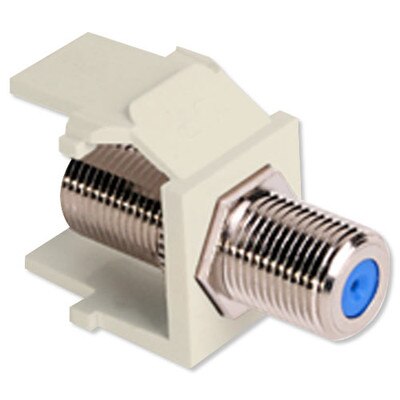

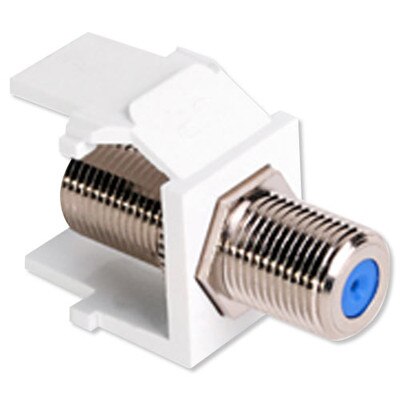

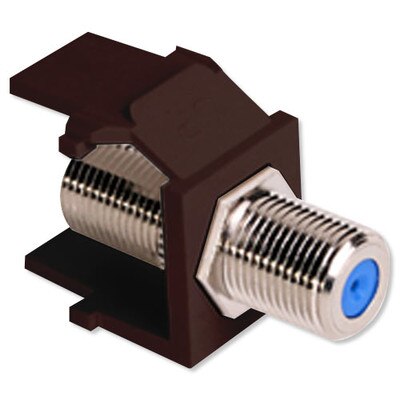

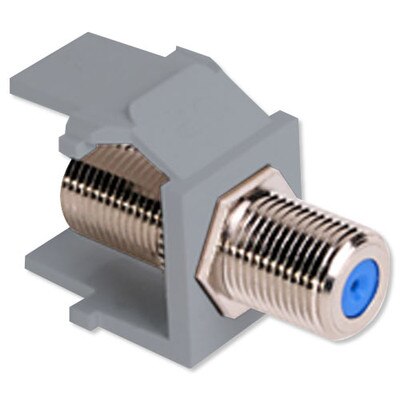

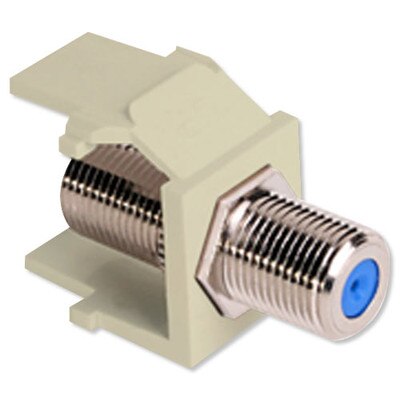

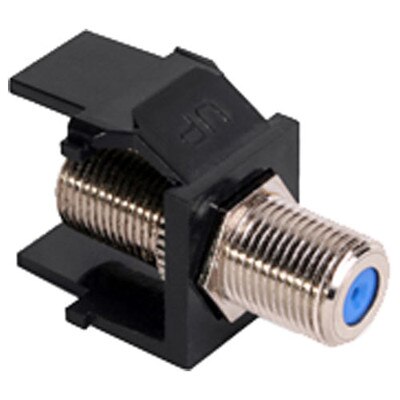

Leviton QuickPort F Snap-In Connector

SKU: LV41084FxF

Please Select Option To View Availability

$2.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Customize Your Own Multi-Media Wallplates With Mix & Match Components

The Leviton Quickport F to F Connector is used for Voice/data/video connectivity for workstation cabling termination on coaxial or multimode fiber cable. This Adapter snaps into any QuickPort housing or wallplate.

  • Voice/data/video connectivity for workstation cabling termination on coaxial cable.
  • Connection adapter is for cables that have male connectors already installed on cables.
  • Connectors are compatible with a variety of patch panels, QuickPort and MOS wallplates, including flush and surface mount styles.
  • Screw-on front and rear connections using Coax plugs for easy termination.
  • Check clearance behind proposed location of bulkhead module to ensure space for proper bend-radius of cabling.
  • Applications include TV, VCR, DVD, satellite, home theater, High-Speed Internet.

Leviton's QuickPort Family

The QuickPort system – Leviton's exclusive set of mix and match panels, connectors, wallplates, and surface-mount boxes – allows you to create the perfect mix of voice, data, video and audio, all in a single panel. The QuickPort family of connectors is compatible in any QuickPort housing. This simple solution is ideal for any environment that has frequent moves, adds and changes.

Specifications

Design Considerations

  • F-type connector works for all coax applications
  • QuickPort bulkhead modules snap into any QuickPort housing, including flush and surface mount outlets, Multimedia Outlet System (with adapter), patch panel, and patch blocks
  • Check clearance behind proposed location of bulkhead module, to ensure space for proper bend-radius

Technical Details

  • Dimensions: .64" h x .58" w x 1.24" d
  • Materials: Zinc die-cast body with machined threads
  • Insulation: Polypropylene
  • Compliances: Meets or exceeds all applicable standards; Bulkhead Modules are cULus Listed; Society of Cable Telecommunications Engineers (SCTE) Compliant

Performance Technical Details

  • Frequency Range: DC – 3.0 GHz
  • Insertion Loss:< 0.2 dB @ 3.0 GHz
  • Return Loss: > 26 dB @ 3.0 GHz
  • Electrical Impedance: 75 Ω
  • Contact Resistance:< 4 Milliohms
  • Holding Force:
    • > 160 Grams Initial
    • > 120 Grams after Insertion

Downloads

»Leviton 41084-F QuickPort F-Type Coax Snap-In Connector (Nickel Plated) Data Sheet (.pdf)
