Leviton QuickPort Wallplate, 1-Gang, 4-Port

SKU: LV410804xP

Please Select Option To View Availability

$2.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Customize Your Own Multi-Media Wallplates With Mix & Match Components

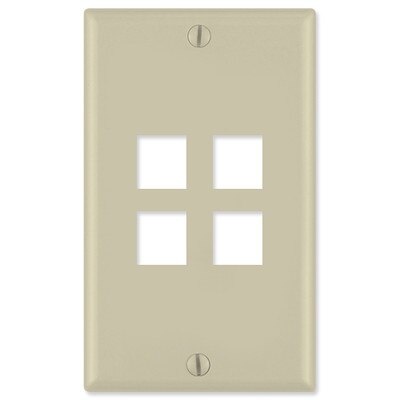

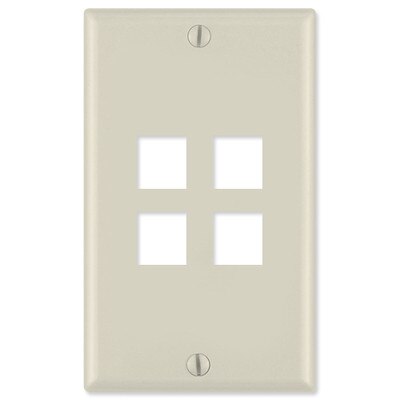

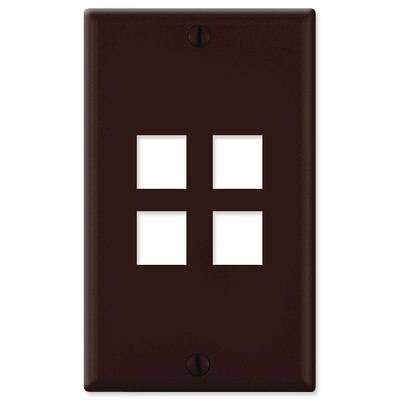

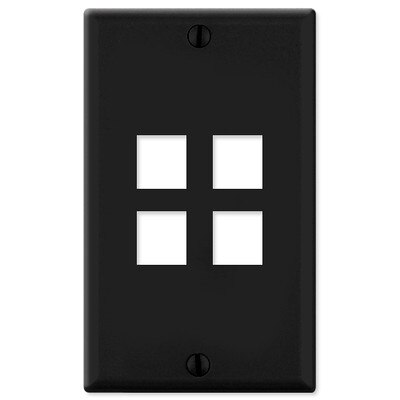

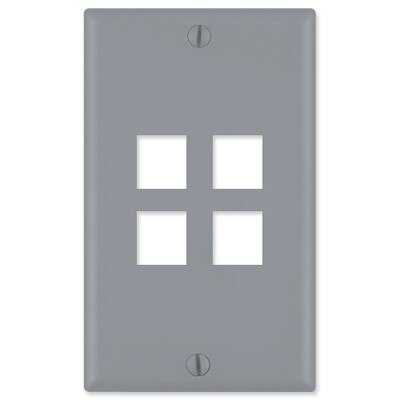

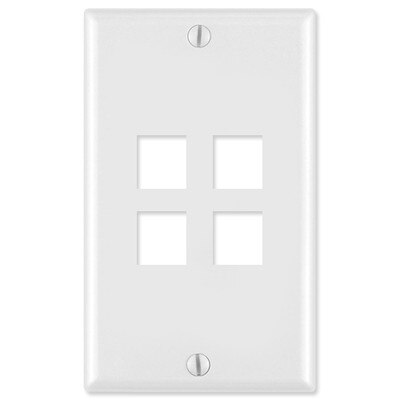

The Leviton QuickPort 4-Port Wallplate is field-configurable and accepts QuickPort snap-in modules to support multimedia applications. Use this Wallplate where a one-piece, single-gang, economical flush-mount housing is desired.

  • 4-Port Multimedia Wallplate
  • Color-matched wallplate screws
  • Fits within minimum rectangular NEMA openings
  • Compatible with all individual QuickPort modules
  • Individual-port configurability allows specification flexibility
  • Narrow module width allows high port density in a small area

Leviton's QuickPort Family

The QuickPort system – Leviton's exclusive set of mix and match panels, connectors, wallplates, and surface-mount boxes – allows you to create the perfect mix of voice, data, video and audio, all in a single panel. The QuickPort family of connectors is compatible in any QuickPort housing. This simple solution is ideal for any environment that has frequent moves, adds and changes.

Specifications

Design Considerations

  • Fits single-gang backboxes, or four-square boxes with appropriate user-provided reducer.
  • Put QuickPort blanks in unused ports for future expansion

Technical Details

  • Dimensions: 4.5" H x 2.75" W x .2" D (in-wall depth 1.2" with connectors installed)
  • Materials: High-impact, fire-retardant plastic rated UL 94V-0
  • Compliance: Meets or exceeds all applicable standards: cULus Listed; complies with TIA-568-C.
