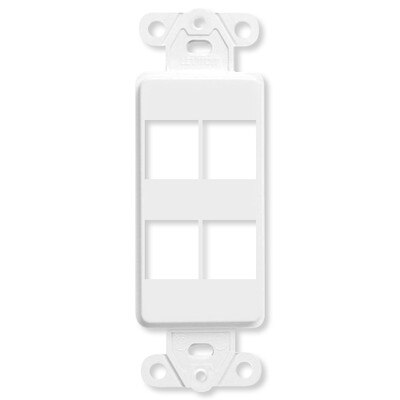

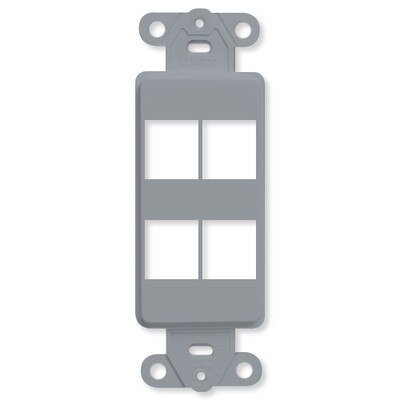

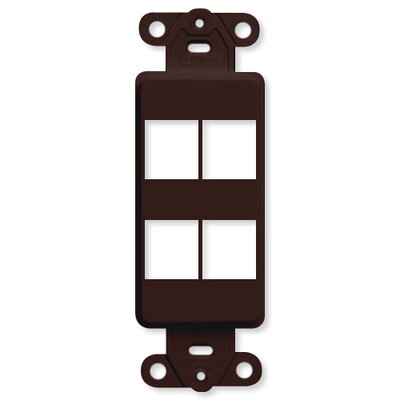

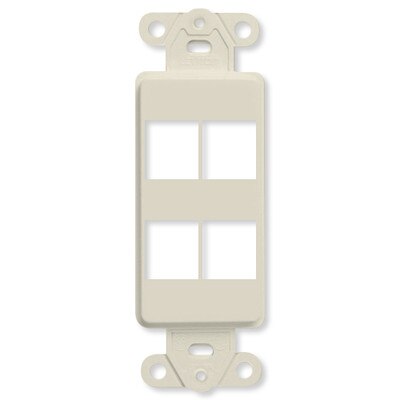

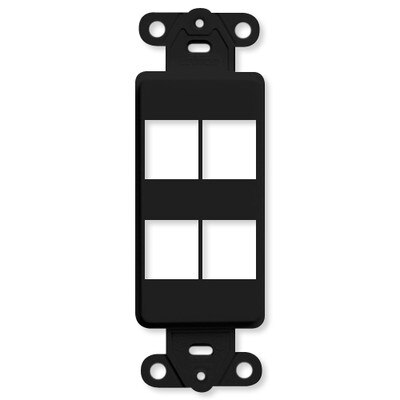

Leviton QuickPort Decora Insert, 4-Port
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Customize Your Own Multi-Media Wallplates With Mix & Match Components
The Leviton QuickPort Insert, 4-Port features a field-configurable Decora style housing that accepts all QuickPort snap-in modules. Use this insert to support voice, data, audio and video applications in NEMA openings where a Decora look is desired.
- 4-Port Decora Multimedia Insert
- Mounts completely flush
- True Decora brand design matches Leviton Decora rocker switches and electrical products
- Fits within minimum NEMA openings
- Compatible with individual Leviton QuickPort modules
- High port density options
- Simple snap-in installation enables easy upgrades and customizations
- Front-load installation wallplates and surface-mount boxes allow changes without dismantling
- Can be used in permanent or temporary applications
Leviton's QuickPort Family
The QuickPort system – Leviton's exclusive set of mix and match panels, connectors, wallplates, and surface-mount boxes – allows you to create the perfect mix of voice, data, video and audio, all in a single panel. The QuickPort family of connectors is compatible in any QuickPort housing. This simple solution is ideal for any environment that has frequent moves, adds and changes.
Specifications
Design Considerations
- Use where a Decora look and flush-mounting are important
- Fits locations where a Decora opening exists
- If ganged with electrical devices, use a barrier box
- Put blanks in unused ports to allow for future expansion
- To ID ports, use different colored connectors for each application
Specifications
- Type: Decora Multimedia Inserts
- Ports: 4-Port
- Dimensions: 4.15" H x 1.41" W x 0.45" D
- Capacity: 1 to 4 snap-in modules
- Materials: High-impact, fire-retardant plastic rated UL 94V-0
