Leviton QuickPort Wallplate, 1-Gang, 3-Port

SKU: LV410803xP

Please Select Option To View Availability


WARNING: Cancer and Reproductive Harm –


Customize Your Own Multi-Media Wallplates With Mix & Match Components

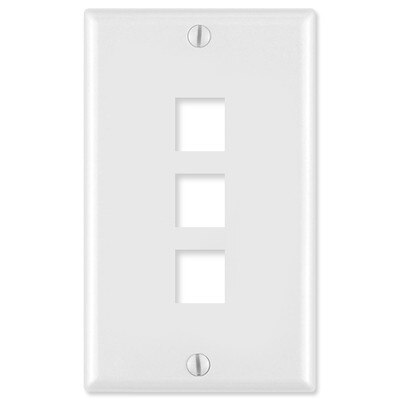

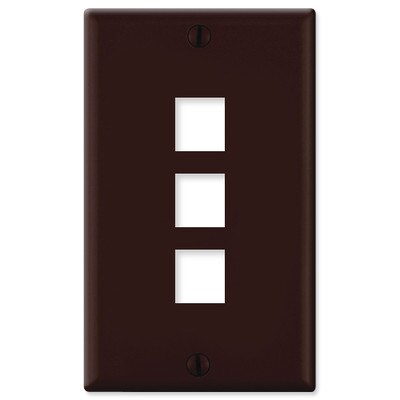

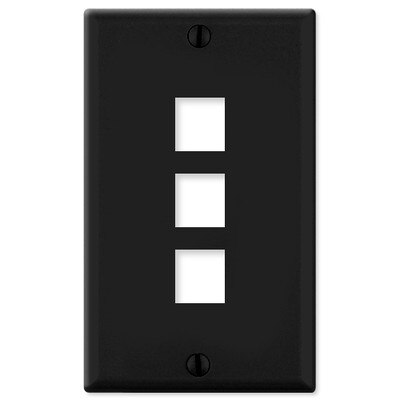

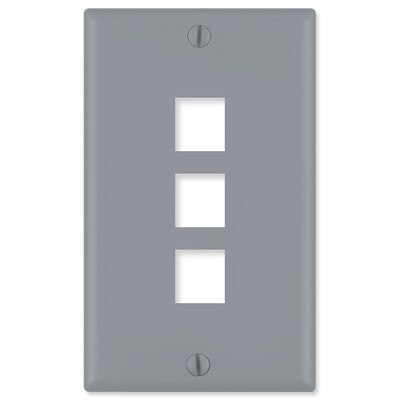

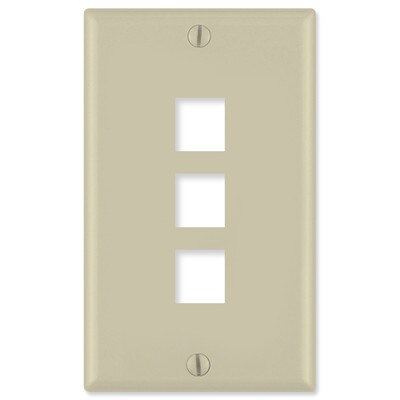

The Leviton QuickPort 3-Port Wallplate is field-configurable and accepts QuickPort snap-in modules to support multimedia applications. Use this Wallplate where a one-piece, single-gang, economical flush-mount housing is desired.

  • 3-Port Multimedia Wallplate
  • Color-matched wallplate screws
  • Fits within minimum rectangular NEMA openings
  • Compatible with all individual QuickPort modules
  • Individual-port configurability allows specification flexibility
  • Narrow module width allows high port density in a small area

Leviton's QuickPort Family

The QuickPort system – Leviton's exclusive set of mix and match panels, connectors, wallplates, and surface-mount boxes – allows you to create the perfect mix of voice, data, video and audio, all in a single panel. The QuickPort family of connectors is compatible in any QuickPort housing. This simple solution is ideal for any environment that has frequent moves, adds and changes.


Design Considerations

  • Fits single-gang backboxes, or four-square boxes with appropriate user-provided reducer.
  • Put QuickPort blanks in unused ports for future expansion

Technical Details

  • Dimensions: 4.5" H x 2.75" W x .2" D (in-wall depth 1.2" with connectors installed)
  • Materials: High-impact, fire-retardant plastic rated UL 94V-0
  • Compliance: Meets or exceeds all applicable standards: cULus Listed; complies with TIA-568-C.
