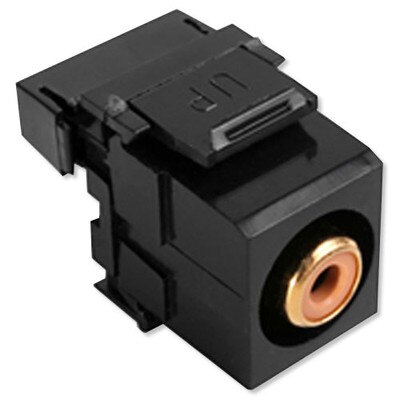

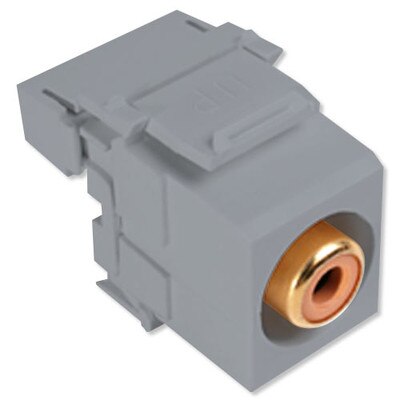

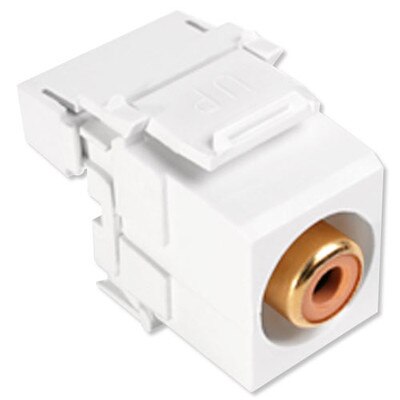

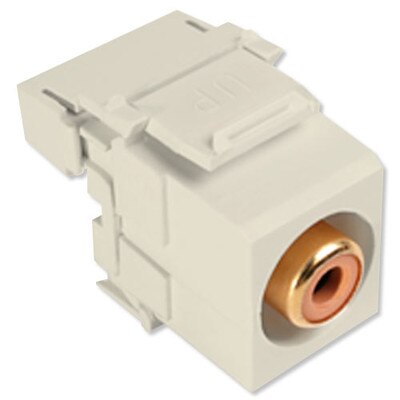

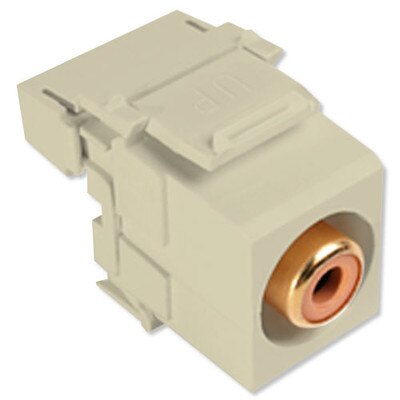

Leviton QuickPort RCA to 110 Snap-In Connector, Orange Insert
Compatible With QuickPort Housings, Patch Panels & Patch Blocks
When used with UTP cabling, the Leviton QuickPort RCA 110-Type Snap-In Connector, Orange Stripe allows you to locally distribute baseband audio/video signals 10 to 40 feet away from the source. To support larger, high-end audio/video plugs (male), these connectors feature an oversized diameter and depth, in addition to gold-plating for long-term reliability.
- Supports connectivity for up to two pairs
- Oversized diameter and depth accommodate large plugs
- Standard IDC slots for quick and easy terminations
Each connector supports connectivity for up to two pairs. You can use both pairs to reduce wire losses in longer cable runs. The connectors snap into any QuickPort wallplates or housings, a variety of patch panels, and MOS wallplates. They also feature industry-standard barrel colors.
Leviton's QuickPort Family
The QuickPort system – Leviton's exclusive set of mix and match panels, connectors, wallplates, and surface-mount boxes – allows you to create the perfect mix of voice, data, video and audio, all in a single panel. The QuickPort family of connectors is compatible in any QuickPort housing. This simple solution is ideal for any environment that has frequent moves, adds and changes.
- Dimensions: 0.64(H) x 0.58(W) x 1.1(D) inches
- Materials: High-impact, fire-retardant plastic rated UL 94V-0
