Leviton QuickPort Decora Insert, 1-Port

SKU: LV41641x

Please Select Option To View Availability

Pay in 4 interest-free payments. Learn More.


WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov


Customize Your Own Multi-Media Wallplates With Mix & Match Components

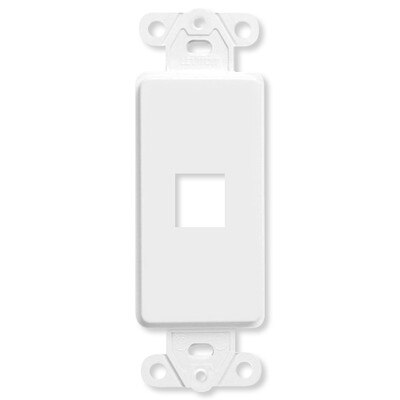

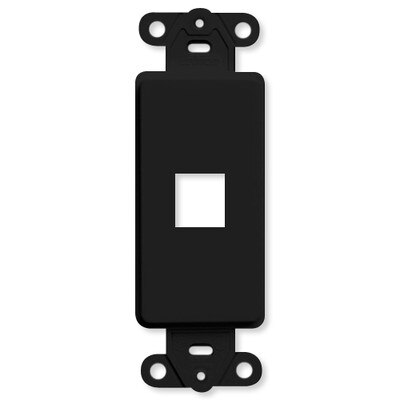

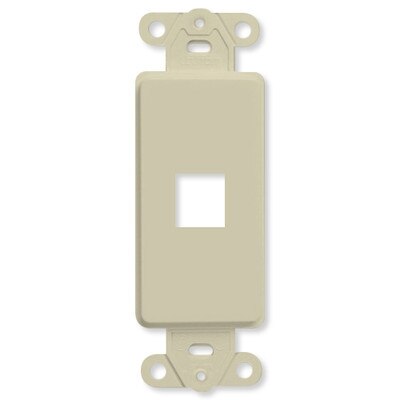

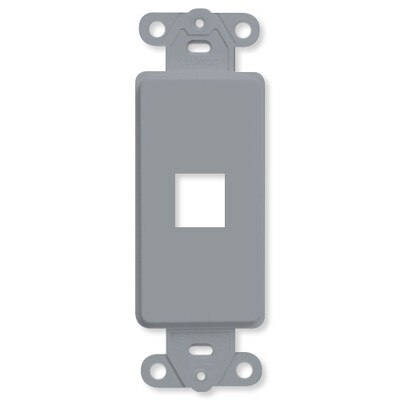

The Leviton QuickPort Insert, 1-Port features a field-configurable Decora style housing that accepts all QuickPort snap-in modules. Use this insert to support voice, data, audio and video applications in NEMA openings where a Decora look is desired.

  • 1-Port Decora Multimedia Insert
  • Mounts completely flush
  • True Decora brand design matches Leviton Decora rocker switches and electrical products
  • Fits within minimum NEMA openings
  • Compatible with individual Leviton QuickPort modules
  • High port density options
  • Simple snap-in installation enables easy upgrades and customizations
  • Front-load installation wallplates and surface-mount boxes allow changes without dismantling
  • Can be used in permanent or temporary applications

Leviton's QuickPort Family

The QuickPort system – Leviton's exclusive set of mix and match panels, connectors, wallplates, and surface-mount boxes – allows you to create the perfect mix of voice, data, video and audio, all in a single panel. The QuickPort family of connectors is compatible in any QuickPort housing. This simple solution is ideal for any environment that has frequent moves, adds and changes.


Design Considerations

  • Use where a Decora look and flush-mounting are important
  • Fits locations where a Decora opening exists
  • If ganged with electrical devices, use a barrier box
  • Put blanks in unused ports to allow for future expansion
  • To ID ports, use different colored connectors for each application


  • Type: Decora Multimedia Inserts
  • Ports: 1-Port
  • Dimensions: 4.15" H x 1.41" W x 0.45" D
  • Capacity: 1 snap-in module
  • Materials: High-impact, fire-retardant plastic rated UL 94V-0
