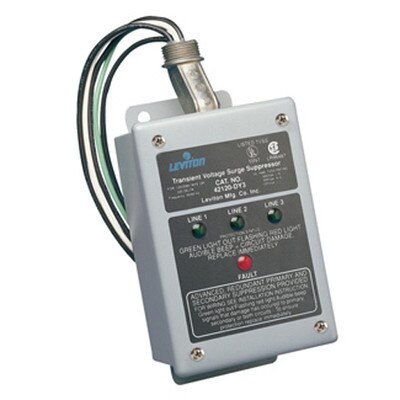

Leviton Industrial Grade Panel Mounted Surge Protector

Compatible With Decora Home Controls In NEMA 3R Enclosure

The Leviton Panel Mounted Surge Protector is a high-performance Transient Voltage Surge Suppressor. This unit is designed for use at the service entrance, sub-distribution or branch circuit panels. Diagnostics provide visual, audible and remote contacts (Relay Leads) for the monitoring of protection status.

Protect The Whole Home

The popularity of home offices, the internet and home theaters means that there are more home electronics that are vulnerable to voltage surges than ever before. A Whole-House protection plan must protect against voltage surges on both the powerline and the telephone or communication lines. Homeowners may be unaware that surges can enter their expensive electronic equipment (modems, FAX machines, answering machines, TV’s and VCR’s) through telephone lines and cable TV or satellite dish connections. Most surge protective devices (SPD’s) designed for the AC powerline will not prevent telephone or communication line surges from damaging valuable equipment. As a result, Leviton offers a complete selection of SPD’s for powerline, telephone and communication line applications.

Product Features

• Redundant suppression (for both Delta and Wye systems)
• Hybrid component suppression design
• TVSS protection on all phases
• Common mode TVSS protection for Wye configured AC systems
• All three-phase models may be used on either Delta or Wye systems as sold
• Three multi-voltage models cover eight common voltage systems
• Diagnostic monitoring of TVSS circuitry for each phase
• Audible and visual failure indicators
• Remote N.O./N.C. Form C contacts for remote monitoring
• Close nippled housing allowing close installation to electrical distribution panels, thereby providing a short suppression path which significantly reduces transient levels
• 3/4" (1.9 cm) nipple for wire connections
• Convenient surface mounting
• UL Listed/CSA Certified design

Technical Details

• Voltage: 120/240 Volt
• Protection Mode: 4-Mode
• Diagnostics: LED
• Feature: Compatible with Decora Home Controls
• Modules: Fixed
• Alarm: Audible
• Dry Contacts: NO-C-NC
• MCOV: 150V AC
• UL1449 Impluse 6kV/500A L-N/N-G/L-L: 500/500/700
• Max Surge Current kA L-N: 80kA
• Noise Rejection: -20 to -30 dB at 1.5kHz-1.2MHz
• Circuitry: MOV-Based Suppression
• Enclosure Rating: NEMA 3R
• Standards and Certifications: UL1449 / CSA / ANSI/IEEE Cat ABC
