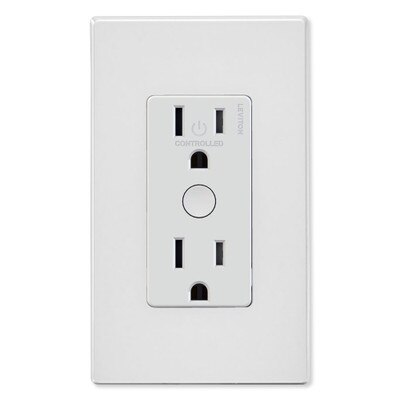

Leviton Decora Smart Z-Wave Plus v2 Tamper-Resistant Outlet, Gen7

Control A Single Device Or Lamp From Your Phone Via Z-Wave Plus

Add plug-in appliances and lights at home to your Z-Wave network with the Leviton Decora Smart Z-Wave 700 Tamper-Resistant Outlet. This Z-Wave Plus connected outlet can command a single plug-in device to turn On/Off at your discretion or at scheduled times according to pre-programmed events or time of day. It's top outlet is a Z-Wave 700 connected outlet while its bottom outlet is an "always on" standard outlet. Unlike most other wireless devices, the Smart Z-Wave 700 Outlet can be directly controlled from your smartphone or tablet via Z-Wave Plus and does not require an automation hub or gateway to operate. Through the My Leviton app you can add the Outlet to Leviton or third-party automation hubs.

• Control a single plug-in appliance rated to 120VAC, 50/60HZ over Z-Wave Plus
• Supports LEDS & CFLS up to 600W and incandescents up to 1500W
• Turn On/Off locally with button or over Z-Wave via My Leviton app
• Tamper-resistant design prevents insertion of non-electrical plug objects
• Operate as a standalone device or integrate into an automation system
• Schedule load to turn On/Off at specific times
• Group devices together in scenes to control simultaneously
• LED locator light indicates status and reveals Outlet in the dark
• Voice-control compatible with Amazon Alexa and Google Home devices (sold separately)

The Smart Z-Wave Plus Outlet supports incandescent bulbs up to 1500W and LED/CFL bulbs up to 600W. As a scene-capable device, it can be included into automation scenes or group applications. The button on the front of the Outlet is used for local manual On/Off commands. In case of power malfunctions, the Outlet remembers the status of plugged-in devices.

Decora Smart With Z-Wave Plus

Introducing the Decora Smart with Z-Wave Plus Technology family of products, featuring various devices including in-wall dimmers/switches and plug-in modules for appliances and lamps, supporting a wide range of load types including LED and incandescent with multi-way capability.

Control from Anywhere – No Hub Required

Control connected loads and lights using the free My Leviton app for iOS and Android, no hub required. Simplify control of the residence – schedule lights and connected loads to turn on/off at specific times or based on sunrise/sunset, easily group smart devices into rooms, and create scenes to activate multiple lights at once.

My Lights. My Home. My Family. My Leviton.

Create schedules like "Good Morning" to activate appropriate lighting at preset times. For instance, at 6:30AM every Monday through Friday, turn the bedroom lights to 25% and master bath lights to 50%. As well, Activities can be created so that you can manually push "Movie Time" and have all lights appropriately react as soon as you begin your movie.

Voice Control

Compatible with both Amazon Alexa and Google Assistant.

Z-Wave Plus v2 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 700 Series or Gen7 Z-Wave. Z-Wave Plus v2 compatible devices include extended wireless range up to 2600 ft/800 m, three layers of encryption, faster operation, and longer battery life.

Contents

• Smart Z-Wave Plus Outlet
• Single-gang Decora Screwless Wallplate

NOTE: For Indoor use only. Wireless operation requires a Z-Wave Plus network and the free My Leviton app.

About Leviton

Leviton is the smart choice, providing the most comprehensive range of solutions to meet the needs of today's residential, commercial and industrial buildings. Leveraging more than a century of experience, Leviton helps customers create sustainable, intelligent environments through its electrical wiring devices, network and data center connectivity solutions, and lighting energy management systems. From switches and receptacles, to daylight harvesting controls, networking systems, and equipment for charging electric vehicles, Leviton solutions help customers achieve savings in energy, time and cost, all while enhancing safety.

• Manufacturer Part #: ZW15R-1BW
• Color: White
• Network: Z-Wave Plus v2, 700 series
• Security: S0 or S2 Security
• Dimensions: 1.5 (H) x 3 (W) x 1.125 in (D)
• Ratings:
  • General Use: 15A – 120VAC, 50/60Hz
  • Magnetic: 15A – 120VAC, 50/60Hz
  • LED/CFL: 5A, 120VAC, 50/60Hz
  • Incandescent: 1500W – 120VAC, 50/60Hz
  • Motor: 3/4 HP – 120VAC, 50/60Hz
  • Requires uninterrupted power, not for use in switched receptacle applications.
• Operating Humidity: 0 to 90% non-condensing
• Certifications: cULus Listed, Energy Mgmt Equip. 9D34, NOM (Mexico), Z-Wave Plus CERTIFIEDâ„¢, FCC Part 15 Class B, IC: 772C-LB1GC,
• Warranty: 2-Year Limited

»Leviton Decora Smart with Z-Wave Plus Technology (.pdf)
»Leviton ZW15R-1BW Decora Smart Z-Wave Plus Tamper-Resistant Outlet Spec Sheet (.pdf)
»Leviton ZW15R-1BW Decora Smart Z-Wave Plus Tamper-Resistant Outlet Installation Manual (.pdf)
