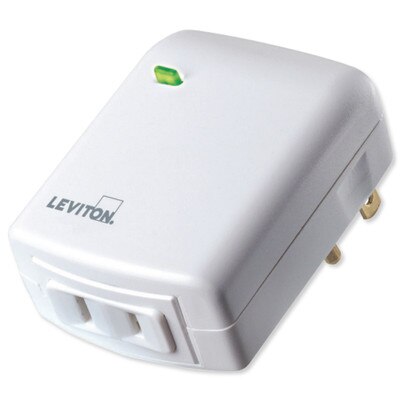

Leviton Decora Smart Z-Wave Plus Plug-In Dimmable Lamp Module, Gen5

Enables Z-Wave Control For A Dimmable Plug-In Lamp

Add Z-Wave remote control to a dimmable plug-in lamp using the Leviton Decora Z-Wave Plug-In Dimmable Lamp Module. Simply plug your lamp into the module, and plug the module into a power outlet. Once the module is enrolled into your Z-Wave network, you can use a wireless Z-Wave controller to Dim/Brighten and turn On/Off the connected lamp!

• Responds to On/Off and Dim/Bright Z-Wave commands
• Supports dimmable incandescents, CFLs, and LEDs
• Can be included in scenes or zones
• Remembers status during power outage
• Provides two-way status updates
• Compatible with the Samsung SmartThings Automation Hub

The Plug-In Dimmable Lamp Module supports dimmable incandescent bulbs up to 300W/2.5A and dimmable LED or CFL bulbs up to 100W. As a scene-capable module, it also allows you to incorporate the connected device into scene or zone control applications. The button on the front of the module is used to easily include/exclude the device in a Z-Wave network. In case of power malfunctions, the Module remembers On/Off status of plugged-in devices.

Z-Wave Plus Certification

Z-Wave Plus is an upgraded certification program to help you identify products that take advantage of the "Next Gen" Z-Wave hardware platform, also known as 500 Series or Gen5 Z-Wave. Z-Wave Plus certified solutions feature a selected set of extended features and capabilities that enhance your experience with faster and easier installation and setup. Z-Wave Plus advancements also provide longer battery life, faster operation, better wireless range and improved noise immunity.

NOTE: Must be enrolled into a Z-Wave network controller (sold separately).

Leviton Lighting & Appliance Control, Featuring Z-Wave

Leviton incorporates Z-Wave technology, a versatile home control technology that effectively transforms any component – switches, lighting controls, shades, thermostats, appliances and more – into an intelligent device that can be wirelessly controlled and monitored. It delivers the reliability and performance of a high-end "custom" system at an affordable cost. With more than ten years of experience with Z-Wave technology, Leviton offers a complete product line of in-wall and plug-in smart devices for both homes and businesses, which include dimmers, switches, fan speed controls, and other smart receptacles.

• Manufacturer Part #: DZPD3-2BW
• 120VAC, 60 Hz
• Incandescent: 300W, 2.5A
• LED/CFL: 100W
• Operating Temperature: 0° to 55° C
• Storage Temperature: -10° to 85° C
• Relative Humidity: 20 to 90 percent (non-condensing)
• Weight: 0.336 pounds
• Dimensions: 2.25(L) x 2(W) x 3(H) inches
• Agency Standing and Compliance:
• Complies with FCC Part 15, Class B
• UL Listed (E66800)
• NOM Certified (#057)
• CSA Certified (File #152105)
• UL Listed (File #898F)
• Z-Wave Certified
• Warranty: 5 Year Limited

»Leviton DZPD3-2BW Z-Wave Plug-In Dimmable Lamp Module Installation Manual (.pdf)
