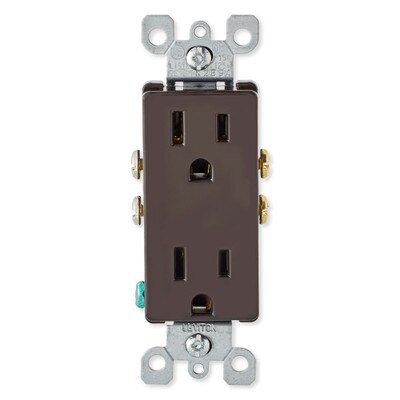

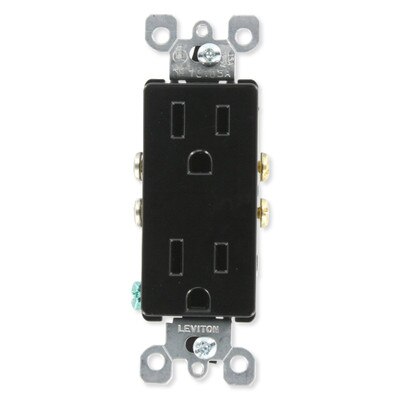

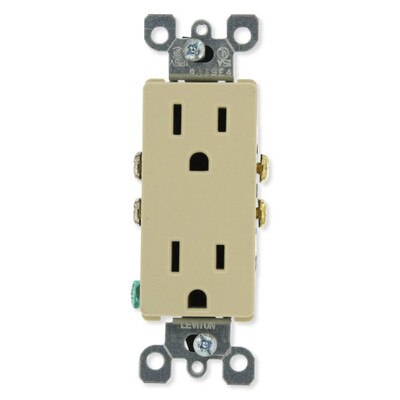

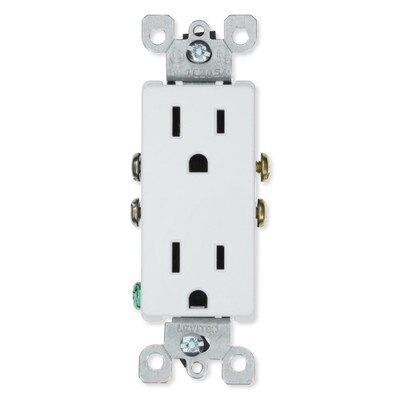

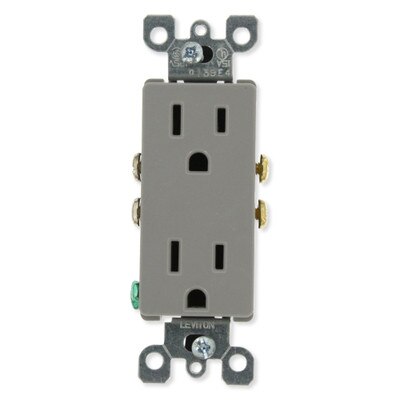

Leviton Decora Plus Duplex Receptacle, Residential Grade, 15A
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Add Electrical Outlets That Can Handle Any Application
The Leviton Decora Plus Duplex Receptacle, Residential Grade, 15 Aamp is a self grounding, commercial grade electrical outlet capable of handling heavy-duty devices and appliances. Its heavy-gauge double-wipe brass contacts are designed for long service life and a reliable performance. The receptacle's shallow build allows for maximum spacing for wiring within an installation. Brass terminal screws accept up to No. 10 copper or copper-clad wire, solid or stranded.
- Terminal screws accepts up to No. 12 AWG copper-clad wire
- Quickwire push-in terminals accept No. 14 AWG copper wire only
- Double-wipe power contacts for reliable conductivity and plug retention
- Heavy-gauge zinc-plated steel mounting strap
- 2-Year Limited Warranty
About Leviton
Leviton is the smart choice, providing the most comprehensive range of solutions to meet the needs of today's residential, commercial and industrial buildings. Leveraging more than a century of experience, Leviton helps customers create sustainable, intelligent environments through its electrical wiring devices, network and data center connectivity solutions, and lighting energy management systems. From switches and receptacles, to daylight harvesting controls, networking systems, and equipment for charging electric vehicles, Leviton solutions help customers achieve savings in energy, time and cost, all while enhancing safety.
Specifications
Product Features
- Body and Face Material: Thermoplastic
- NEMA: 5-15R
- Pole: 2
- Wire: 3
- Strap Material: Steel
- Termination: Quickwire Push-In & Side
Technical Details
- Manufacturer Part #:
- Black: 5325-E
- Brown: 5325
- Gray: 5325-GY
- Ivory: 5325-I
- Light Almond: 5325-T
- White: 5325-W
- Electrical Ratings:
- Amperage: 15 A
- Voltage: 125 VAC
- Environmental Specifications:
- Flammability: Rated V-2 per UL 94
- Operating Temperature: -40°C to 60°C (-40°F to 140°F)
- Material Specifications:
- Ground Clips: Brass-Plated
- Grounding Screw: Steel 8-32
- Strap Material: Steel
- Terminal Screws: Brass
- Mechanical Specifications:
- Terminal Accommodation: 14-12 AWG
- Terminal ID: Brass-Hot, Green-Ground, White-Neutral
- Standards and Certifications:
- CSA C22.2 No. 42: File 152105; Class 6233-01
- NOM Certified: 057
- UL 498: File E13399
- UL Listed: File E-13399
- Warranty: 2 Year Limited
