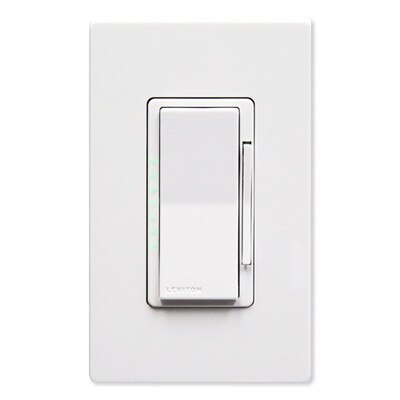

Leviton Decora Digital Quiet Fan Speed Wall Control with Bluetooth, 1.5A

Ceiling Fan Switch with Bluetooth Remote Control

Control your ceiling fan using a local switch or wirelessly via your Bluetooth mobile device by installing the Leviton Decora Digital Quiet Fan Speed Wall Control with Bluetooth (1.5A). This fan speed wall switch controls Off, Low, Medium, and High speed settings for 120VAC fans up to 1.5 Amps. Settings are chosen at the switch or through a free mobile app. The switch and app also feature various timer settings that allow you to program automatic On/Off times for your fan.

• Sets ceiling fan speed to Off, Low, Medium, or High
• Control locally at switch or remotely via Bluetooth up to 30 feet
• Free app provides intuitive menu with timer feature
• Compatible with iOS/Apple and Android smartphones or tablets
• Allows setting a maximum fan speed level for energy savings
• Decora style for compatibility with Decora wallplates
• Supports multi-location control with Decora Digital remotes (sold separately)

White faceplate installed. Light Almond and Ivory color change kits included.

Local Control

The local rocker switch provides On/Off control, and the slide bar lets you select fan speed with settings for low, medium, and high. The slide bar preserves your desired fan speed. Additionally, the "Preset On Level" option allows you to choose which fan speed you want to return to any time you turn the fan on. If you choose Medium, for example, the fan will automatically start at Medium, regardless of your previous setting.

Bluetooth Wireless Control

Remote control is provided via Bluetooth through the free Decora Digital Dimmer & Timer app for iOS/Apple and Android smartphones or tablets. The app features a simple, intuitive user interface where you can independently control each fan in your home (multiple fans require multiple control switches) and custom-name them within the app for easy identification. App controls include adjust fan speed, turn On/Off the LED locator light and/or the Fan Level brightness display, set maximum and minimum fan speed, and set a timer for the fan to turn On/Off automatically.

Timer Features:

• Program timed events for weekdays, weekends, or any combination of days at set or random times
• Astronomical clock automatically adjusts to local sunrise/sunset times
• Automatic daylight saving time adjustment
• Countdown sleep timer can be set for up to 12 hours

Installation Details

The Leviton Decora Digital Quiet Fan Speed Wall Control with Bluetooth is designed to control ceiling paddle fans with split-capacitor or shaded pole motors up to 1.5 Amps. The switch installs into a standard wallbox and can easily replace a traditional fan speed switch. It can be used in single pole, 3-way or more applications (Digital Decora remote(s) required for multi-location control).

• No fins for multi-gang installation
• Built-in radio/TV interference filter
• Neutral wire required

An LED locator helps guide you to the switch in the dark, while a Fan Level brightness display indicates the set fan speed. In case you're installing the switch in a bedroom where LED lights could be disruptive, you can turn one or both off.

Contents

• Decora Digital Fan Speed Wall Control with Bluetooth
• White Faceplate
• Ivory Faceplate
• Light Almond Faceplate

Notes

• For use on 120VAC ceiling paddle fans with split-capacitor or shaded pole motors only. Use with any other type of motors or equipment may cause overheating and/or damage to the load.
• Neutral wire required.
• Wallplate sold separately. Compatible with Decora wallplates.
• Not compatible with standard 3-way or 4-way switches. For multi-location control, must be used with Decora Digital DD00R-DL remotes.

About Leviton

Leviton is the smart choice, providing the most comprehensive range of solutions to meet the needs of today's residential, commercial and industrial buildings. Leveraging more than a century of experience, Leviton helps customers create sustainable, intelligent environments through its electrical wiring devices, network and data center connectivity solutions, and lighting energy management systems. From switches and receptacles, to daylight harvesting controls, networking systems, and equipment for charging electric vehicles, Leviton solutions help customers achieve savings in energy, time and cost, all while enhancing safety.

Compatibility

Wireless control requires device with Bluetooth 4.0 (BT LE) or later. Compatible with iOS 6.0 or later (iPhone, iPad, and iPod touch) or Android 4.0 and later.

Technical Details

• Manufacturer Part #: DDF01-BLZ
• Style Name: Decora
• Color: White, Ivory, Light Almond
• LED Color: Green
• Switch Type: Single-Pole, 3-Way or More Applications
• Load Type: 120VAC Fan
• Load Rating: 1.5 Amp
• Timer Type: Digital 24 Hour and Countdown
• Voltage: 120VAC, 60Hz
• Wireless Connectivity: Bluetooth
• Wireless Range: Up to 30 feet
• Action: Rocker switch for ON/OFF, Slide bar to select speed
• Preset: Slide bar preserves desired fan speed with settings for low, medium, and high
• Light: None
• Protection: Radio/TV Filter
• Operating Temperature Range: 32°F to 104°F (0°C to 40°C)
• Storage Temperature Range: 50°F to 185°F (10°C to 85°C)
• Relative Humidity: 0 to 98 percent
• Wallplate: Order Separately
• Wiring Notes: Neutral required
• Approvals: FCC/IC, CSA Certified to Standard 156, NOM, Bluetooth SIG, Complies with UL 1917
• Warranty: 5-Year Limited
