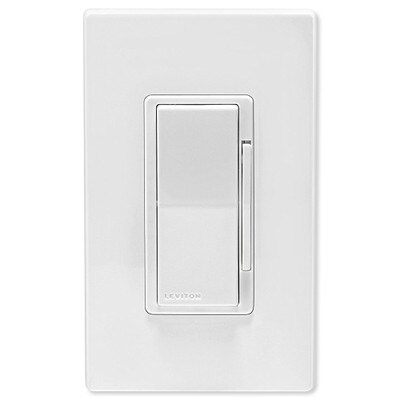

Leviton Decora Digital Dimmer Switch, 600W
Digitally Connected Dimmer Switch
Control dimmable lights with a switch with the Leviton Decora Digital Dimmer, 600W. This dimmer switch can command and schedule individual or multiple lights to turn On/Off and Dim/Brighten automatically at scheduled times or in response to programmed events or scenes. The switch features LED indicators on the left side and bottom to indicate light levels and On/Off status respectively.
- Supports dimmable LED and CFL lights up to 300W and incandescents up to 600W
- On/Off and Dim/Brighten commands locally
- Remembers last used light levels and can set max light level for energy savings
- Single pole or 3 way/multi-location control with Decora Digital Digital & Timer App
Decora Digital Devices are compatible with most Decora and Decora Plus color change kits, wallplates, and 3-way device setups.
White faceplate installed. Light Almond and Ivory color change kits included.
The Decora Digital Dimmer easily replaces an existing light switch using single-pole wire connections. A ground wire is required to connect during installation. A neutral wire is also required.
- Decora Digital Dimmer
- Light Almond Faceplate
- Ivory Faceplate
NOTE: Ground and neutral wiring are required for installation. Wallplate sold separately.
Leviton is the smart choice, providing the most comprehensive range of solutions to meet the needs of today's residential, commercial and industrial buildings. Leveraging more than a century of experience, Leviton helps customers create sustainable, intelligent environments through its electrical wiring devices, network and data center connectivity solutions, and lighting energy management systems. From switches and receptacles, to daylight harvesting controls, networking systems, and equipment for charging electric vehicles, Leviton solutions help customers achieve savings in energy, time and cost, all while enhancing safety.
- Manufacturer Part #: DDL06-1LZ
- Switch Type: Single-Pole, 3-Way or More
- Preset: Slide bar preserves desired lighting level
- Load Type: Incandescent, Dimmable LED, Dimmable CFL
- Load Rating: 300W LED and CFL, 600W Incandescent
- Voltage: 120VAC, 60Hz
- Light: LED Locator and Brightness Display
- Operating Temperature: 32 to 104 degrees Fahrenheit (0 to 40 degrees Celsius)
- Storage Temperature: 50 to 185 Fahrenheit (10 to 85 degrees Celsius)
- Relative Humidity: 0 to 98 percent
- Standards and Certifications: CSA, NOM, FCC
- Warranty: 5-Year Limited
