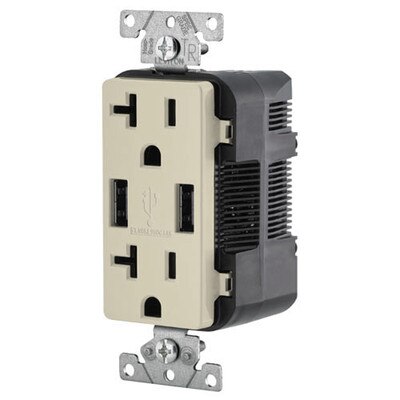

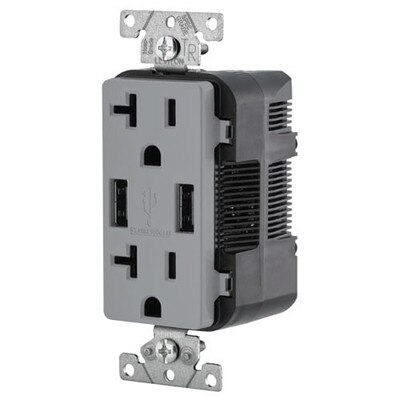

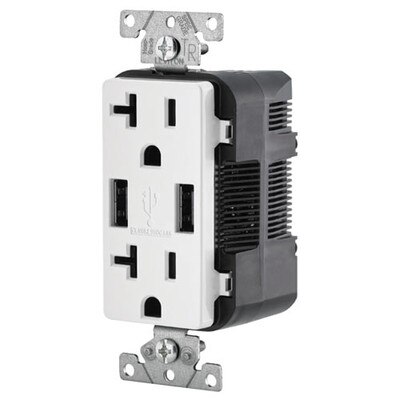

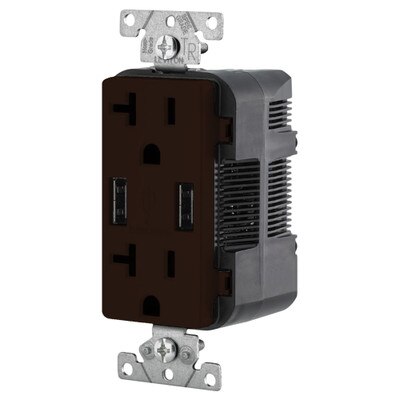

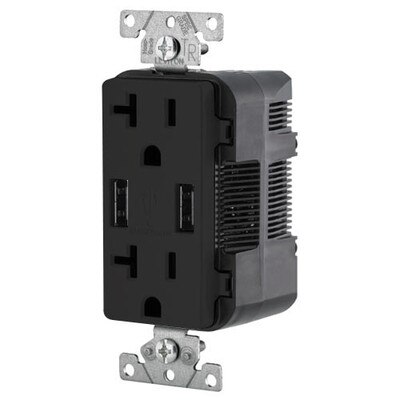

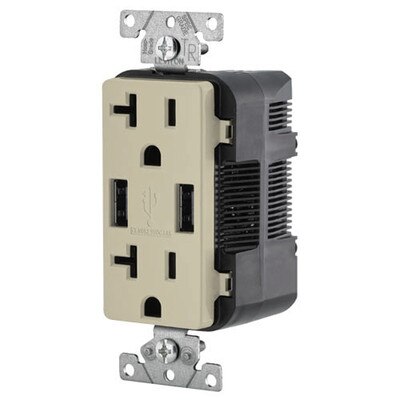

Leviton 2-Port USB Charger & Tamper-Resistant Duplex Receptacle, 20A
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Replaces A Standard Duplex Receptacle
You can plug USB charging cables directly into a power outlet when you install the Leviton Combination Duplex Receptacle and USB Charger (20A). Designed to replace existing duplex power outlets, this hybrid receptacle and USB charger is simple to install and perfect for any outlet location in your home.
- Outlets support 20A plug-in devices
- USB ports deliver 3.6A of charging power
- Smart chip optimizes USB charging
- Compatible with USB 2.0 devices
The Combination Duplex Receptacle and USB Charger features two power outlets and two USB ports, which are positioned to allow use of all four at the same time. This 20A model supports 20 Amp plug-in devices and delivers 3.6 Amps of charging power through the USB ports. When a USB device is plugged in, the receptacle's smart chip detects the type of device and optimizes charging for that individual device.
The unit fits into a standard electrical box. Installation can be finished with a standard wallplate (sold separately). The unit can also be multi-ganged with other devices.
NOTE: Wallplate not included.
About Leviton
Leviton is the smart choice, providing the most comprehensive range of solutions to meet the needs of today's residential, commercial and industrial buildings. Leveraging more than a century of experience, Leviton helps customers create sustainable, intelligent environments through its electrical wiring devices, network and data center connectivity solutions, and lighting energy management systems. From switches and receptacles, to daylight harvesting controls, networking systems, and equipment for charging electric vehicles, Leviton solutions help customers achieve savings in energy, time and cost, all while enhancing safety.
Specifications
Electrical
- Receptacle Amperage: 20 Amp
- Receptacle Voltage: 125VAC
- Ratings: 20A-125V
- Horsepower Rating: 20A-1 HP
Environmental
- Operating Temperature: -10 to 40° C
- Flammability: Rated V-0 per UL94
Material
- Cover Material: Thermoplastic
- Strap Material: Steel
- Body Material: Thermoplastic
Mechanical
- Torque Range: 12-14 inch pounds
- Terminal Accommodation: 14-12 AWG
- Product ID: Stamped on Strap
- Termination: Back and Side
- Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
Standards and Certifications
- Warranty: 5 Year Limited
- Listed: cCSAus
- NOM: 057
- FCC Part 15: Class B for Residential Compliance
