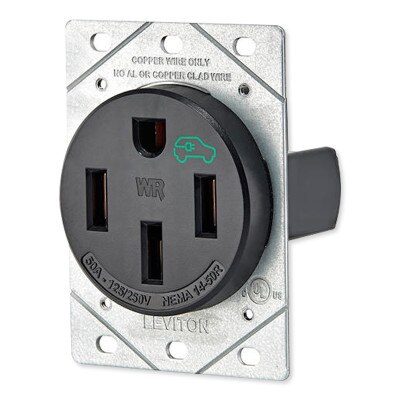

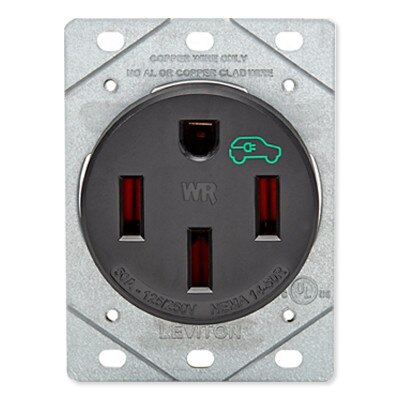

Leviton 50A Heavy Duty Flush Mount Receptacle/Outlet for EV Charging Stations, Weather-Resistant

SKU: LV1450W

Usually ships in 3-5 days.

$69.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

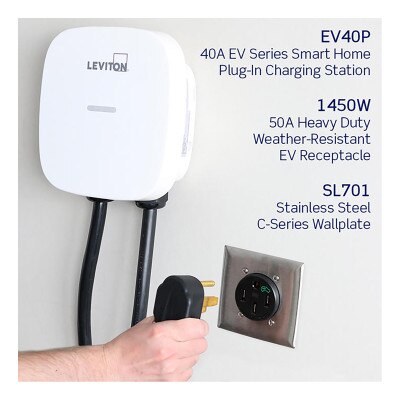

Install a Low Profile EV Charging Station

Save space in your garage or replace your outdoor outlet in order to charge your EV with the Leviton 50A Heavy Duty Flush Mount Receptacle/Outlet for EV Charging Stations, Weather-Resistant! This high voltage electrical outlet is specifically designed to enable EV charging in residential applications where limited space prevents the installation of traditionally sized EV charging stations. This weather resistant model can reliably endure external conditions while handling the high power electrical delivery needed to charge electric vehicles. The Receptacle fits into 2-gang electrical boxes and must be wired using a 3-pole, 4-wire configuration to properly deliver power.

  • Compact, weather resistant EV charging outlet for homes with limited space
  • Designed to replace outdoor plugs
  • Built of durable, high-impact nylon face and heavy-gauge, high-performance copper contacts

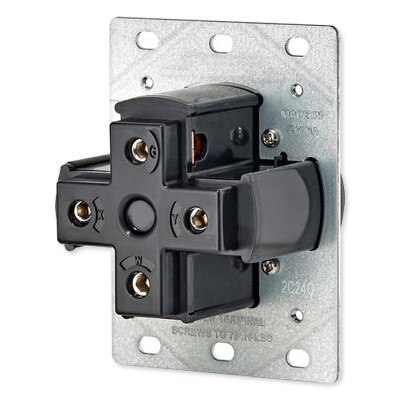

  • Pressure-wire terminal connections ensures full-contact with the conductors
  • Accurate, efficient wiring with terminal IDs clearly marked
  • High torque value terminals require 75 in lbs to ensure proper connection
  • Must be installed in a 2-gang outdoor box and must use code compliant weatherproof cover

Installation Details

The Heavy Duty Flush Mount Receptacle/Outlet replaces a 2-gang outdoor or indoor outlet and must be wired using a 3-pole, 4-wire configuration.

Contents

  • Outlet
  • Weatherproof Cover
  • Mounting Screws

NOTE: Must be wired into a 2-gang electrical box and must be installed with code compliant weatherproof cover.

About Leviton

Leviton is the smart choice, providing the most comprehensive range of solutions to meet the needs of today"s residential, commercial and industrial buildings. Leveraging more than a century of experience, Leviton helps customers create sustainable, intelligent environments through its electrical wiring devices, network and data center connectivity solutions, and lighting energy management systems. From switches and receptacles, to daylight harvesting controls, networking systems, and equipment for charging electric vehicles, Leviton solutions help customers achieve savings in energy, time and cost, all while enhancing safety.

Specifications

  • Manufacturer Part #: 1450W
  • UPC: 078477013359
  • Device: Flush Mounted Single Receptacle
  • Grade: Industrial
  • Features: Weather Resistance
  • Type: 3-Pole 4-Wire
  • Amperage: 50A
  • Voltage: 125/250 VAC
  • AC Horsepower Ratings: 3 HP
  • Temperature Rating: -40° to 140°F (-40° to 60°C)
  • Wire Gauges: #4, #6, #8. #10 for ground only
  • Torque: 75 in-lbs.
  • Face Material: Nylon
  • Strap Material: Heavy Gauge Galvanized Steel
  • Flammability: Rated HB or better UL94
  • Ratings and Certifications: cULus

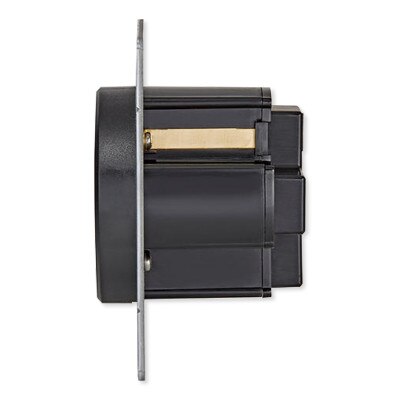

  • Dimensions: 2.75 W x 3.75 H x 2.327 D inches
  • Warranty: 2-Year Limited
