KBSound SOUNDAROUND Wi-Fi In-Ceiling Amplifier

SKU: ES60252

Usually ships in 3-5 days.

$299.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Deliver Audio Via Your Wi-Fi Network

The KBSound SOUNDAROUND Wi-Fi Amplifier uses your Wi-Fi network to stream wireless audio from your preferred audio source through your SOUNDAROUND Wi-Fi system. This audio transmitter module connects Wi-Fi or auxiliary audio sources to connected speakers, and delivers power to connected speakers to expand the size and range of your home audio system. Each Amplifier supports a single pair of 25W speakers or two pairs of 8W speakers (not included).

  • Wi-Fi amplifier connects Wi-Fi and auxiliary audio sources to SOUNDAROUND audio system
  • Stream music from preferred audio apps including Spotify, Napster, and more
  • Supports line output connections with two 25W speakers or four 8W speakers
  • Play audio from connected speakers or in other audio zones of the SOUNDAROUND system
  • Control your KBSOUND STAR system using the AllPlay or Home Studio Apps

The Amplifier is controlled by either the All Play App for Android or Home Studio App for iOS. The Amplifier can be installed and operated as a standalone device or be paired with existing SOUNDAROUND devices, such as the In-Wall Wi-Fi Controller (sold separately). In order to play audio using the SOUNDAROUND Wi-Fi audio system, the SOUNDAROUND device and controlling device must be on the same Wi-Fi network. Using the app, you can select where you want to play your audio, either across the entire system, or from select audio zones.

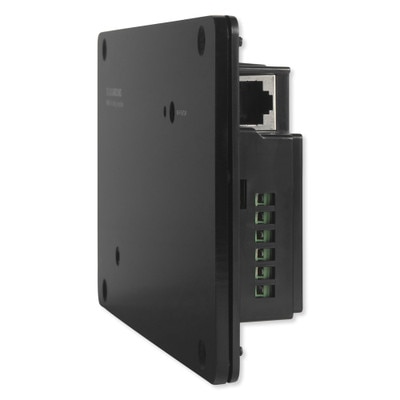

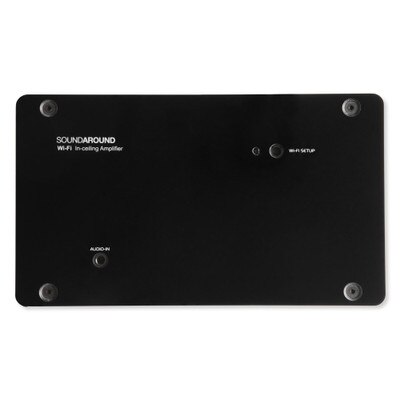

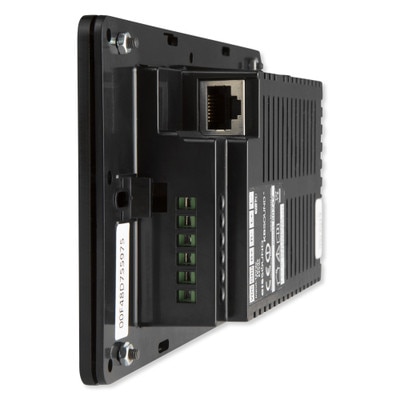

The Wi-Fi Amplifier is designed to mount onto the ceiling, preferably behind or near connected speakers. The amplifier uses wired line output connections to deliver power and audio to connected speakers. The Amplifier is powered by an external power supply. The Amplifier works with various power supplies depending on the number of connected speakers, from 12VDC to 24 VDC. Connect the Amplifier to your Internet connection via Wi-Fi or with an Ethernet cable.

Contents

  • SOUNDAROUND WiFi Amplifier
  • Power supply

Notes

  • Speakers sold separately.
  • Controlling devices and Wi-Fi Amplifier must be on the same Wi-Fi network in order to operate.
  • In-Wall SOUNDAROUND Wi-Fi Controller sold separately.

KBSound: Providing Quality Audio Solutions

Since 1993, KBSound has been producing innovative products in the Multiroom Audio Sector. As the first to create an audio control unit specifically designed to fit and mimic the look of most popular light switches, KBSound's in-wall audio control units provide an easy way to listen to digital audio content in quality sound. From In-Wall Bluetooth Audio Receivers to Soundaround Wi-Fi Speakers, KBSound's product range is always evolving so that consumers have the very best audio solutions available.

Specifications

  • Manufacturer Part #: 60252
  • UPC: 8436031618686
  • Dimensions: 6.89 W x 3.93 H x 1.45 D inches (175 W x 100 H x 37 D mm)
  • WiFi Transceiver: 2.4 GHz/ 5GHz
  • WiFi Streaming: 24 bits/ 192 KHz
  • WiFi Connection: WPS/Webpage
  • WiFi Standards: 802.11a/b/g/n
  • Ethernet/LAN: Yes
  • RF Antenna: internal
  • Voltage: 12 to 24 VDC
  • Consumption: 60W
  • Input Signal: 775 to 1000 Vrms
  • Speaker Impedance: 16/8/4 ohms
  • Speaker Audio Power:
    • 12 VDC: 3.5W to 10W
    • 15 VDC: 5.5W to 16W
    • 24 VDC: 15W to 25W
  • Speaker Power Consumption:
    • 12 VDC: 14W to 30W
    • 15 VDC: 18W to 45W
    • 24 VDC: 44W to 60W
  • Dynamic Range: 90 dB
  • Left/Right Channel Separation: 75 dB
  • Distortion: 0.1%
  • Warranty: 2-Year
