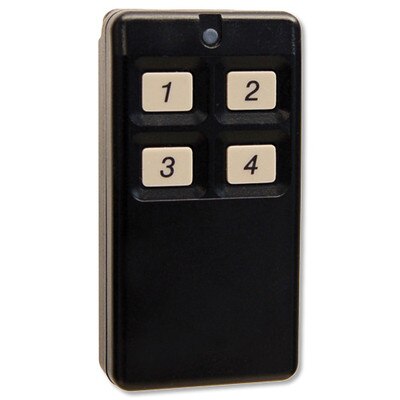

Inovonics 4-Button Multiple Condition Pendant Transmitter

Signal Up To 10 Different Alerts For Comprehensive Personal Security

The 4-Button Multiple Condition Pendant Transmitter can send up to ten different alerts by allowing multiple-button combinations. Wear the pendant in your home or business to protect yourself from sudden security risks.

For use with mobile duress alarm systems, Inovonics Pendant Transmitters protect individuals from personal harm by providing instant alerts in the case of an emergency. This transmitter also helps prevent accidental activation when alert signals require multiple-button activation.

• Four-button design can be used to signal up to 10 alert conditions
• Utilizes a 250 millisecond debounce time to activate conditions, and to help prevent false activation
• Can be worn on the included belt clip or mounted for fixed position signaling
• LED flashes with all transmissions, ensuring operation at a glance
• Fully supervised to help ensure reliability

How It Works

Condition signals are transmitted multiple times and are indicated by the blinking transmission LED. When supervised, the transmitter sends a check-in message to the serial receiver or network coordinator. Pendants using the 868MHz frequency range for Europe send a check-in message every 12 minutes; all other transmitters send a check-in message every three minutes.

NOTE: The multiple condition pendant transmitter must be used with an EchoStream EN4000 of EN4200 serial receiver, or with the EN6040 network coordinator. In addition, the application controller (e.g. control panel) must be designed to accept multiple conditions.

Contents

• Pendant transmitter
• 3V lithium battery
• Belt clip

Inovonics Wireless: Developed For Commercial Applications

The Inovonics Commercial Mesh Network has been specifically developed for commercial applications to provide the most cost-effective solution for a wide range of applications, while setting new standards for performance and reliability in a wireless sensor network.

Reliability: Inovonics EchoStream 900MHz radio utilizes a unique frequency hopping, spread spectrum technology to meet the demands of an increasingly cluttered wireless world.

Flexibility: The flexibility of wireless is a necessity in today's dynamic commercial environments. The self-configuring EchoStream Commercial Mesh Network allows you to adapt to changing floor plans and requirements in a matter of minutes. New sensors can be added to the network as fast as they can be mounted.

Scalability: The EchoStream Commercial Mesh Network's backbone of intelligent repeaters can extend coverage to thousands of sensors across entire commercial campuses.

• Dimensions: 3.0x1.6x1.0"
• Typical battery life: 3-5 years
• Battery type (BAT608): Panasonic CR2 or equivalent
• Operating environment: 0 to 60 degrees C (32 to 140 degrees F), noncondensing
• Platform: EchoStream
• Frequency:
• 902 - 928 MHz North America
• 915 - 928 MHz Australia
• 922 - 928 MHz New Zealand
