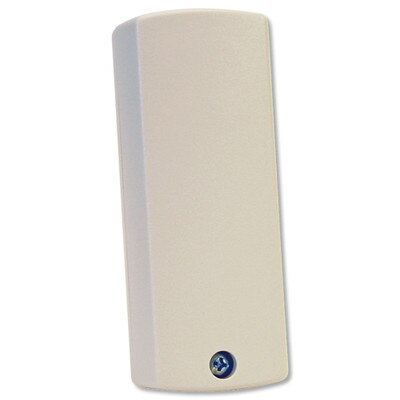

Inovonics 2-Input Transmitter with Wall Tamper

Increase Security With Wall Tamper

Designed for use with standard contacts or sensors, the Inovonics 2-Input Transmitter with Wall Tamper provides enhanced security through a wall tamper switch that notifies your security system when the transmitter is removed from its mounted surface. Dual input support ensures maximum flexibility.

• Supports dual inputs
• Use with almost any standard NO/NC contact
• Screw closure housing and wall tamper switch provide additional security
• Fully supervised

NOTE: The EN1216 requires use of a serial receiver or network coordinator, as well as an application designed to support advanced functionality.

Contents

• Transmitter
• Battery
• Mounting bracket

Inovonics Wireless: Developed For Commercial Applications

The Inovonics Commercial Mesh Network has been specifically developed for commercial applications to provide the most cost-effective solution for a wide range of applications, while setting new standards for performance and reliability in a wireless sensor network.

Reliability: Inovonics EchoStream 900MHz radio utilizes a unique frequency hopping, spread spectrum technology to meet the demands of an increasingly cluttered wireless world.

Flexibility: The flexibility of wireless is a necessity in today's dynamic commercial environments. The self-configuring EchoStream Commercial Mesh Network allows you to adapt to changing floor plans and requirements in a matter of minutes. New sensors can be added to the network as fast as they can be mounted.

Scalability: The EchoStream Commercial Mesh Network's backbone of intelligent repeaters can extend coverage to thousands of sensors across entire commercial campuses.

• Platform: EchoStream
• Dimensions: 3.5 x 1.7 x 0.9 inches (89 x 43 x 23mm)
• Weight: 3 oz (85g)
• External contacts: NO or NC
• Distance, external contact to EN1216: 10 feet (3 meters) maximum
• Typical battery life: 3-5 years
• Battery type (BAT604): Panasonic CR123A or equivalent
• Operating environment: -20 to 60 degrees C (-4 to 140 degrees F), noncondensing
• Operating frequency:
• 868 - 870 MHz Europe
• 902 - 928 MHz North America
• 915 - 928 MHz Australia
• 922 - 928 MHz New Zealand
• Compatible Inovonics gateways and repeaters: Network Coordinator, Security Only Serial Receiver, Serial Receiver/Interface Kit for DMP, Universal Serial Receiver, High Power Repeater, High Power Repeater with Transformer
