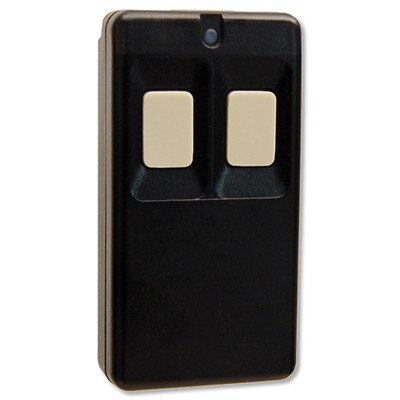

Inovonics 2-Button Fixed Position Hold Up Transmitter


Usually ships in 1-2 days.


WARNING: Cancer and Reproductive Harm –


DEALER ONLY ITEM: Not Available Directly to End Users.

Dealers, log on to see pricing. »Sign up to become an authorized installer.

Fixed Mounting Increases Security

Designed to mount in a fixed location, the Inovonics 2-Button Fixed Position Hold Up Transmitter comes with a mounting plate for easy installation and quick access. Double-button activation helps prevent false alarms. Because the transmitter is mounted in a fixed location, it also includes back tamper for increased security.

  • Double-button design helps prevent false alarms
  • Back tamper for secure fixed position alarm signaling
  • LED flashes with all transmissions, ensuring operation at a glance
  • UL listed

How It Works

The pendant is activated by pressing both buttons simultaneously. Alarm signals are transmitted multiple times and are indicated by the blinking transmission LED. When the buttons are released, the transmitter sends an alarm restoral signal. When supervised, the transmitter sends a check-in message to the serial receiver or network coordinator every three minutes.


  • Transmitter
  • Battery

Inovonics Wireless: Developed For Commercial Applications

The Inovonics Commercial Mesh Network has been specifically developed for commercial applications to provide the most cost-effective solution for a wide range of applications, while setting new standards for performance and reliability in a wireless sensor network.

Reliability: Inovonics EchoStream 900MHz radio utilizes a unique frequency hopping, spread spectrum technology to meet the demands of an increasingly cluttered wireless world.

Flexibility: The flexibility of wireless is a necessity in today's dynamic commercial environments. The self-configuring EchoStream Commercial Mesh Network allows you to adapt to changing floor plans and requirements in a matter of minutes. New sensors can be added to the network as fast as they can be mounted.

Scalability: The EchoStream Commercial Mesh Network's backbone of intelligent repeaters can extend coverage to thousands of sensors across entire commercial campuses.


  • Platform: EchoStream
  • Dimensions: 3.0 x 1.6 x 0.72 inches
  • Typical battery life: 3-5 years
  • Battery type (BAT608): Panasonic CR2, Sanyo CR2
  • Operating environment: 0 to 60 degrees C (32 to 140 degrees F), 90 percent relative humidity, noncondensing
  • Power requirement: 3 VDC, 60 Ma
  • Operating frequency:
    • 902 - 928 MHz North America
    • 915 - 928 MHz Australia
    • 922 - 928 MHz New Zealand
  • UL listings: UL 365, UL 636, UL 1076, UL 1610.
  • Compatible Inovonics gateways and repeaters: Four Zone Add-On Receiver with Relay Outputs, Network Coordinator, Security Only Serial Receiver, Serial Receiver/Interface Kit for DMP, Universal Serial Receiver, High Power Repeater, High Power Repeater with Transformer
