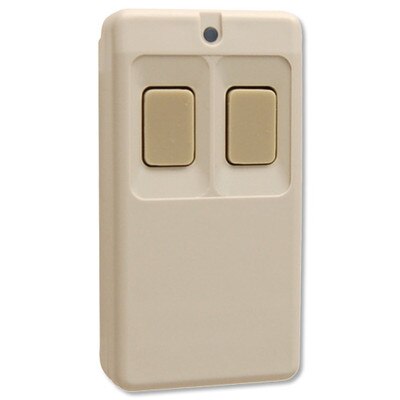

Inovonics 2-Button Necklace Pendant Transmitter

Simple Protection With False Alarm Prevention

The Double-Button Necklace Pendant Transmitter features a rugged design for simple and effective home security with double-button activation to minimize false alarms. For use with mobile duress alarm systems, Inovonics Pendant Transmitters protect individuals from personal harm by providing instant alerts in the case of an emergency. The transmitter can be fully supervised when registered with your system.

• Double-button design reduces false alarms
• Can be worn as a neck pendant or mounted for fixed position signaling
• LED flashes with all transmissions, ensuring operation at a glance
• Fully supervised to help ensure reliability

How It Works

The pendant is activated by pressing both buttons simultaneously. Alarm signals are transmitted multiple times and are indicated by the blinking transmission LED. When the buttons are released, the transmitter sends an alarm restoral signal. When supervised, the pendant transmitter will send a check-in message to the serial receiver or network coordinator every three minutes.

Contents

• Pendant transmitter
• 3V lithium battery
• Neck cord

Inovonics Wireless: Developed For Commercial Applications

The Inovonics Commercial Mesh Network has been specifically developed for commercial applications to provide the most cost-effective solution for a wide range of applications, while setting new standards for performance and reliability in a wireless sensor network.

Reliability: Inovonics EchoStream 900MHz radio utilizes a unique frequency hopping, spread spectrum technology to meet the demands of an increasingly cluttered wireless world.

Flexibility: The flexibility of wireless is a necessity in today's dynamic commercial environments. The self-configuring EchoStream Commercial Mesh Network allows you to adapt to changing floor plans and requirements in a matter of minutes. New sensors can be added to the network as fast as they can be mounted.

Scalability: The EchoStream Commercial Mesh Network's backbone of intelligent repeaters can extend coverage to thousands of sensors across entire commercial campuses.

• Weight: 61 grams
• Dimensions: 3.0x1.6x0.72" (76x41x18mm)
• Typical battery life: 3-5 years
• Battery type (BAT608): Panasonic CR2 or equivalent
• Operating environment: 0 to 60 degrees C (32 to 140 degrees F), noncondensing
• Platform: EchoStream
• Frequency:
• 902 - 928 MHz North America
• 915 - 928 MHz Australia
• 922 - 928 MHz New Zealand
