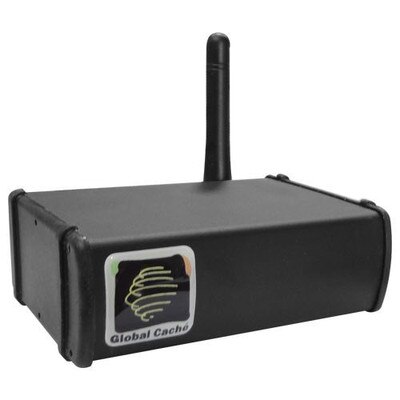

Global Caché iTach, Wi-Fi to IR

Invent Your Own "IP-Enabled" IR Devices

Add smart control to any infrared (IR) devices in your home with the Global Caché iTach for IR Devices (WiFi). The iTach WiFi IR blaster offers a simple solution for connecting up to three IR-controlled devices, such as a TV or stereo, to the Internet over WiFi, enabling remote control. Featuring wide compatibility, the Global Cache iTach WiFi to IR can integrate your IR devices into almost any 3rd-party, network-connected system.

If you have access to at least one of the three following control options, you can unleash the power of iTach WiFi IR blaster on your IR devices: 1) PC-based control software, 2) iOS/Android control apps (such as iRule), or 3) a high-end control system. Yep, even if your only control system is an iPhone, you're in iTach business.

• Connects up to 3 infrared (IR) devices to the Internet via WiFi
• Enables remote/automated monitoring and control for almost any IR device
• Works with PC software, iOS/Android control apps, and high-end control systems
• Based on open standards for easy integration into most 3rd-party systems
• Compact design, fits anywhere in your home (just over 3" long and 2" wide)
• Built-in IR learner and onboard web server make for easy setup (HTTP, DHCP)
• Flash upgradeable for firmware enhancements in the field

What is the Global Cache iTach WiFi to IR?

Each one of the nine different models in the Global Caché iTach series is a simple device that allows you to connect nearly any infrared (IR), serial (RS232), or contact closure (relay) device to your home network (the Internet). Once your device is connected to the Internet through the iTach WiFi IR blaster, that device becomes "IP-enabled", meaning you can access and control it over the Internet. Each iTach unit supports up to eight simultaneous network connections.

The Global Cache iTach WiFi to IR is perfect for creating an ultra-customized home automation and/or security system. With the Global Caché iTach WiFi IR blaster in your control arsenal, you can add intelligence to just about any electronic device in your home or business.

Choose the Best Connection Type

The Global Caché iTach product line includes a model for each of three types of devices (IR, serial, or contact closure), as well as each type of Internet connection (Wired, WiFi, or Wired PoE).

This Global Cache iTach WiFi to IR model is used to connect up to three infrared (IR) devices to your network via WiFi. Please Note, all other models are sold separately. This WiFi IR blaster model must be connected to the network via WiFi (wireless Internet router required) and powered by the included plug-in power adapter.

Integrate iTach into Your Control System

Global Caché, makers of the iTach, have partnered with almost every software control and home automation company out there. The iTach is widely compatible with 3rd-party systems due to Global Caché's published API, which enables anyone, anywhere to develop a driver that allows a 3rd-party system to control your iTach-connected devices.

See additional product features under the Specifications tab.

Contents

• iTach for IR Devices (WiFi)
• (3) IR Emitters
• IR Blaster
• Power Adapter
• USB Cable
• Quickstart Guide

IMPORTANT NOTE: Global Caché products are not available to ship outside the U.S. Please contact Global Caché directly for international orders.

Simply Connect With Global Caché

The Global Caché family of connectivity products provides choices for the industry professional and the consumer – significantly reducing costs and providing a scalable platform for today and the future. Global Caché's belief in open systems and the evolution of the automation market is being played out today, since cost-effective PC-based and phone-based control applications are now becoming widely available. iTach devices, Network Adapters, and other Global Caché connectivity products have radically changed the automation dynamic. These products are engineered to integrate easily into any control environment, even high-end proprietary systems, providing a path to open systems and better competitive leverage.

Product Features

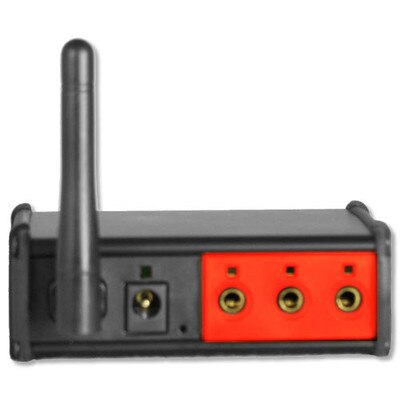

• IR and Sensor Interface: Connector: 3.5mm stereo jack; 3 Independent selectable IR outputs or sensor inputs; 3 IR emitters included; 1 IR blaster included (supported on 3rd IR port)
• Network Connection: Industry standard 802.11b wireless interface, 2.5-inch antenna; Supports wireless LAN, adhoc (for setup) and Infrastructure modes; Compatible with 802.11b
• Setup: Integrated web server for easy configuration; Configure through TCP/IP setup commands
• iHelp Setup Utility: Downloadable iHelp software simplifies network discovery and setup
• IR Learning Utility: Downloadable iLearn software allows for the capture and playback of IR commands for control uses
• LED Indicators: Power and connectivity Indicators

Global Caché Partners that provide compatible iPad/iPod/iPhone/Android control apps include (but are not limited to):

• Comfortclick
• Control4
• Cortexa
• Demopad
• HC-Skipper
• iRidium
• iRule
• iSimplex
• JDS Technologies
• MBH Remote
• Melloware
• MyURemote
• Perceptive Automation
• reYmote.com
• RocketGUI
• Roomie Remote
• tin:b Software
• TouchControl
• Touch Squid
• Worried Cat Mote
• Xpertise Consulting

Technical Details

• Manufacturer Part #: WF2IR
• Power Input: 5 to 16V DC@300mA (wall power adapter included); USB power cable draws power from USB port (included)
• Device Packaging: Aluminum extrusion case, rubber end caps and plastic face plates
• Weight: 3.25 ounces (6 oz. with power supply)
• Dimensions: 3.25(L) x 2.25(W) x 1.25(H) inches
• Shipping Box Dimensions: 9.0(L) x 3.5(W) x 2.0(H) inches
• Certifications: FCC (Part 15, Class B), C-tick, CE; RoHs compliant
• Warranty: 2-Year Limited

»Global Caché iTach Wi-Fi Spec Sheet (.pdf)
»Global Caché iTach Wi-Fi Installation Manual (.pdf)
