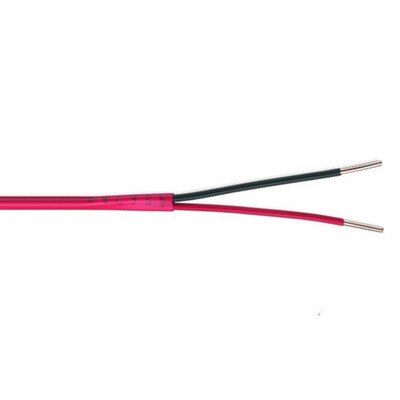

Fire Alarm Wire, 18AWG, 2C, 1,000'

SKU: WR182FIRE10R

Usually ships in 3-5 days.

NOTE: This is a heavy/dimensional part; it is not eligible for free shipping.

$158.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Power Limited Fire Alarm Cable

This Fire Alarm Wire is designed for wiring fire-protective signaling circuits. The wire’s code restrictions support use with power limited circuits.

NOTICE: This part is a heavy/dimensional product; it is not eligible for free shipping. Wire products are not returnable.

Bundled Wire & Media Cable

Home Controls offers just about any cable or wiring you would need to connect your home systems. Choose from security wire, F-type coax, Cat5, Cat5e, Cat6, monster speaker cable and more. Home Controls also features several bundled cables. If you need help choosing the right wire, feel free to call our Technical Support Team at 1-800-266-8765 for free product advice!

Specifications

Construction

  • Conductor: 18 AWG Solid Bare Copper
  • Assembly: Tubed jacket over twisted insulated conductors
  • Insulation Type: Polypropylene
  • Insulation Thickness: 0.006 inch nom.
  • Insulation Diameter: 0.052 inch nom.
  • Lay Length: 1.75 inches nom.
  • Jacket Type: PVC
  • Jacket Thickness: 0.015 inch nom.
  • Jacket Diameter: 0.134 inch nom.

Properties

  • Temperature Rating: -20 to 75 degrees C
  • Operating Voltage: 300 Volts max.
  • Capacitance: 20 pf/foot nom.
  • Impedance: 81 Ohms nom.
  • DC Resistance: 6.5 Ohms/M' at 20 degrees C
  • Flame Rating: UL 1685 Vertical Tray
