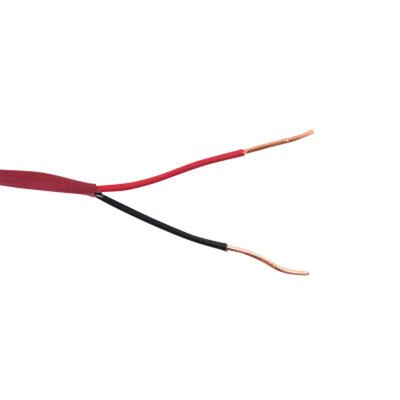

Fire Alarm Wire, 14AWG, 2C, FPLP Plenum Rated, 500'

Wire for Fire-Protective Signaling Circuits

Designed for fire-protective signaling circuits, this Fire Alarm Wire (14AWG, 2C, FPLP Plenum Rated, 500') offers insulated solid bare copper conductors in an unshielded twisted pair configuration. This wire is suitable for riser use on fire control stations, smoke detection, voice communications, supervisory and all associated systems. Plenum rated for use in air circulation spaces, the wire's PVC jacket meets low smoke and low flame requirements to reduce the spread of flames in the event of fire. It comes in boxes of 500 feet, and includes a ripcord and the SCP Cable Labeling System with sequential foot/meter markings and room/zone/outlet designations for easy identification.

• AWG (American Wire Gauge): 14
• Conductors: 2 (Red, Black)
• Type: UL, FPLP, 60C
• Jacket Color: Red
• Package: Box
• Applications: Wiring for fire-protective signaling circuits. Power limited fire alarm and communications cable for Riser and Non-Riser applications. Fire Alarm, Fire Protective Circuits, Smoke Detectors, Monitor/Detection, Signal, Control Circuits, Initiating Circuits, and Notification Circuits.

NOTICE: This part is a heavy/dimensional product; it is not eligible for free shipping. Wire products are not returnable.

Quality Installations Deserve Quality Products

Structured Cable Products is a manufacturer of high quality structured wiring products, security, fire alarm, speaker as well as LAN cable and accessories. With over 15 years of manufacturing and distribution experience of quality cable and accessories SCP can provide all of your cable and accessory solutions.

• Manufacturer Part #: 14/2FPLP-500
• Conductor: 14 AWG Solid SBC Conductor
• Total Cable Weight: 56 kg/km
• Final Diameter: 0.206 inches
• Insulation: PVC
• Jacket: PVC
• DC Resistance: 25°C: 2.6 Ohms / 1000 feet
• Mutual Capacitance: 24.6 pF/ft
• Impedance: 73.7 Ohms
• Velocity Of Propagation: 67 percent
• Inductance: 1.2 mH/km
• Print Notes: Sequentially marked per 2FT (0 – infinity)
• Standard Print: STRUCTURED CABLE PRODUCTS – – – P/N 14/2FPLP – – – (UL) CL2P/CL3P E198137 OR FPLP 75°C FT-6 UNSH 2/C 14 AWG SOLID – – – ZONE/DEVICE A B C D E 0 1 2 3 4 5 6 7 8 9 RoHS
• Cabled OD Avg: 0.142
• Insulation Thickness: 0.011
• Jacket Thickness: 0.017
• Certified: UL CL2P/CL3P OR FPLP
• Flame Rating: FT-6
• Max Voltage: 300V
• NEC Articles: 760 FPLP
• Min. Bend Radius/Minor Axis: 1.442 inches
• Operating Temperature: -20° to 75°C
• Standard UL Temp: 60°C

»SCP 14/2FPLP-500 American Wire Gauge Solid Plenum Spec Sheet (.pdf)
