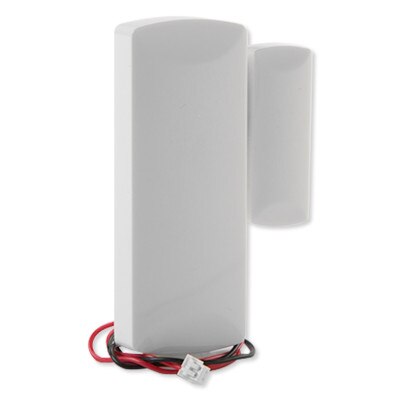

Ecolink Wireless Door/Window Crystal-Based Sensor, 319.5 MHz

SKU: ECTXE231

Usually ships in 3-5 days.

$Dealer

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

DEALER ONLY ITEM: Not Available Directly to End Users.

Dealers, log on to see pricing. »Sign up to become an authorized installer.

Alerts You When Your Door/Window Has Been Opened

Know when your door or window has been opened or closed with the Ecolink Wireless Door/Window Crystal-Based Sensor, 319.5 MHz. This device is compatible with Qolsys, Interlogix, and GE panels/receivers (319.5 MHz wireless frequency) and consists of a sensor body and a magnet piece. The magnet piece mounts on the actual door/window while the sensor body mounts on the door/window frame. Whenever the sensor and magnet are separated or joined together (upon opening or closing the door or window), an alert is triggered. Plus, it includes an external hardwired contact, which is ideal in areas where the sensor cannot be mounted near the magnet.

  • Alerts you when your door/window has been opened or closed
  • Compatible with 319.5 MHz wireless panels, such as GE/Interlogix or Qolsys
  • External contact input for when the sensor can not be mounted near the magnet
  • Includes snap-on brown case and wall mount bracket
  • Designed with wall and case tamper detection

Contents

  • Door/Window Sensor
  • Battery (CR2032)
  • Manual

Ecolink – Intelligent Security and Home Automation

Every Ecolink product originates as an insight – an idea generated by something that people want or something they want to do better. At Ecolink, it's not about the things they make, it's about the things they make possible. Ecolink was born from a pedigree of great distinction within the electronics industry. With countless years of design/development experience and numerous innovative and game-changing products, the Ecolink team designs and manufactures products to the highest standards of performance and quality.

Specifications

  • Manufacturer Part #: TX-E231
  • UPC: 782136724431
  • Color: White and Brown cases
  • Frequency: 319.5 MHz (Crystal based)
  • Battery: CR2032
  • Battery Life: 5 years, typical
  • Operating Temperature: 32°F (0°C) to 120°F (49°C)
  • Operating Humidity: 5-95% non condensing
  • Weight: 1.2 oz.
  • Dimensions (WxHxD):
    • Sensor: 2.62 x 1.0 x 0.31 in. (6.65 x 2.54 x 0.787 cm)
    • Magnet: 1.37 x 0.5 x 0.25 in. (3.47 x 1.27 x 0.635 cm)
  • Magnet Type: N48 rare earth
  • Magnet Gap: 0.625 in. maximum
  • Approvals: FCC/IC

Downloads

»Ecolink TX-E231 Door/Window Sensor with External Contact Input Installation Manual (.pdf)
