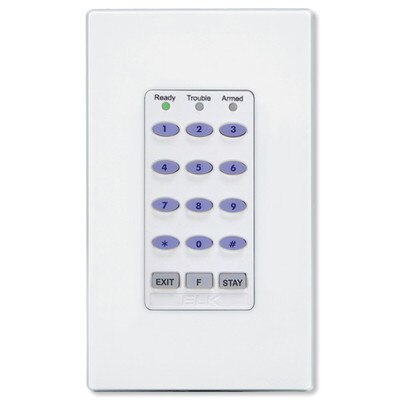

ELK M1 LED Keypad Arming Station

Economical LED Keypad

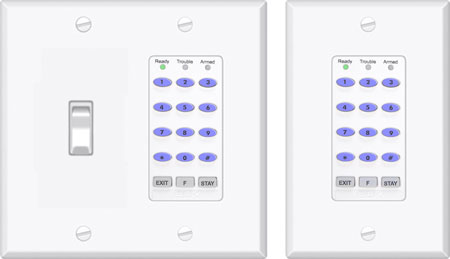

Small, economical, arm/disarm station for M1 Controls which fits into single gang box and utilizes a standard décorator style faceplate (not included). Particularly well suited for partitioned jobs such as an office, workshop, garage, etc., but can also be used as the main keypad for any installation. Displays basic system status with 3 LEDs: Green "Ready", Yellow "Trouble", and Red "Armed". The 12 button keypad is backlit with blue LEDs and has quick arm keys for "EXIT" and "STAY". The ELKM1KPAS also provides access to six (6) programmable function operations by pressing the "F" key followed by the number key (1-6) within 5 seconds

• Blue Backlit Keys
• Quick Arm Exit and Stay Keys
• LED Status Indication
• Instant Activation of 6 Tasks
• Operates from M1G or EZ8 RS-485 Data Bus
• Built-in Piezo Sounder

Elk M1 Cross Platform Controls

Elk Products designs and manufactures premium quality electronic equipment for the professional security and automation installer. The M1 Cross Platform Control Family integrates rock solid security and full featured automation providing convenient user interfaces and remote control options. M1 can be integrated with other manufacturer's systems for complete control of home or business.

• Manufacturer Part #: ELK-M1KPAS
• UPC: 762158550546
• Connection: 4 Pin Plug-in Flying Lead Connector (Included)
• Color: White
• Operating Voltage: 13.8V
