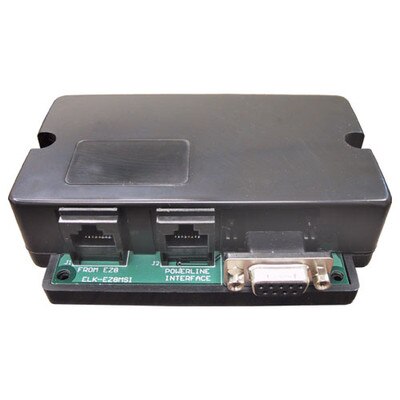

Elk M1 EZ8 Main Serial Interface

SKU: ELKM1EZ8MSI

Usually ships in 1-2 days.

$55.73

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

Adds A High Speed RS232 Serial Port

The ELK-M1EZ8MSI Main Serial Port Interface allows direct RS-232 Serial Communications to an M1EZ8 Control for Upload/Download programming, and for interfacing with other Computer type devices. Also required when adding the M1XEP Ethernet Port to an M1EZ8 Control. The speed of this port is software selectable from 300 to 115,200 baud.

  • Adds A High Speed RS-232 Serial Port To Any M1EZ8 Control
  • Allows Computers And Other Serial Devices To Communicate With The M1EZ8 Control
  • Self-Powered From The Control
  • Modular Connectors For Long Term Reliability
  • Powerline Lighting Pass-through Connector For PSC-05 (or equiv.) Interface

The Elk M1 Cross Platform Control Product Family

Elk's M1 Controls incorporate security, fire, door entry control, and energy & task management to provide total control of home or business. By working with products from over 40 partner manufacturers, the M1Gold & M1EZ8 offer a truly integrated solution. These IP accessible systems offer simple, yet powerful on-site and remote user interfaces, giving the consumer full control anytime, from anywhere.

Specifications

  • Manufacturer Part #: ELK-M1EZ8MSI
  • UPC: 762158550348
  • Gold Plated RJ45 8-Wire Modular Connectors
  • DB9F Female 9-Pin RS-232 Serial Connector
  • Operating Voltage: 12 Volts D.C.
  • Current Draw: Less Than 5mA
  • Housing Dimensions: 4.375" x 3.0" x 1.125"
  • Circuit Board Dimensions: 3.5" x 2.75
