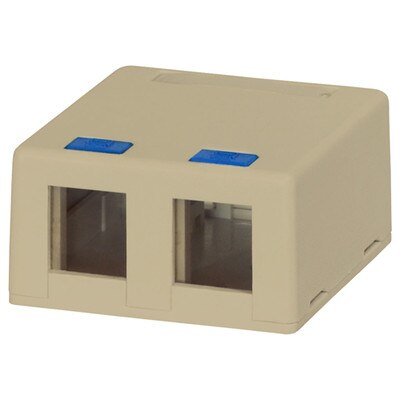

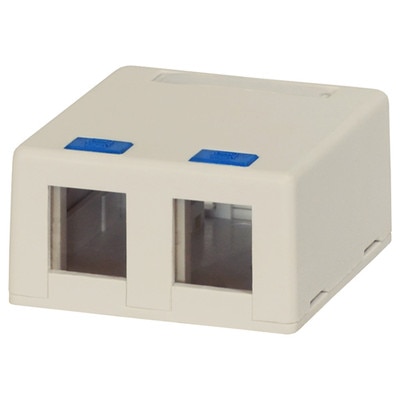

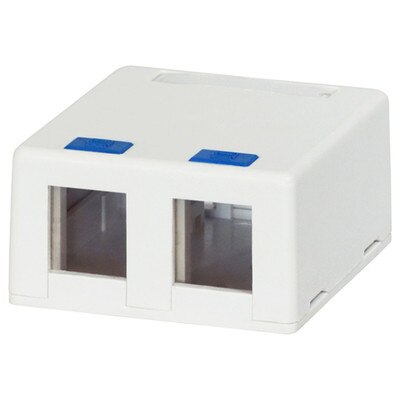

DataComm Keystone Surface-Mount Box, 2-Port

SKU: DT20532x

Please Select Option To View Availability


WARNING: Cancer and Reproductive Harm –


Surface-Mount Two Keystone Inserts

If your installation location does not allow easy in-wall connections, you can alternatively mount keystone inserts to the surface of a wall, baseboard, window sill, etc. with the DataComm Keystone Surface Mount Box (2-Port). Ideal for voice grade, Cat5e, and Cat6 insert jacks, the box's port accepts a variety of Keystone, QuickPort, and other modular snap-ins that fit the standard port cutout size of 0.58 x 0.76 inches. The box mounts with the included double-sided tape or screws.


  • Surface Mount Box
  • Double-Sided Tape
  • (2) Screws

NOTE: Keystone insert(s) not included.

Customize & Connect with DataComm

Long-known for enabling top-quality multimedia connections, manufacturer DataComm Electronics has bolstered its product offering with a complete collection of keystone-style wallplates and inserts. DataComm's Keystone line gives home theater and other multimedia installers the customization options they need from the media experts they trust. Keep data flowing smoothly with solid custom connections by DataComm Electronics.


  • MPN: 20-5321 / 20-5322 / 20-5323
  • Ports: 2
  • Port Cutout: 0.58 x 0.76 inches (14.7 x 19.3 mm); standard size
  • Approvals: UL, RoHS
  • Warranty: 10 Years
