DataComm Full-Size Rough-In Bracket

SKU: DT450102

Order now and we'll ship same business day (if ordered before 3 pm PST).


WARNING: Cancer and Reproductive Harm –


Installation Bracket For Low Voltage Full-Size Plates

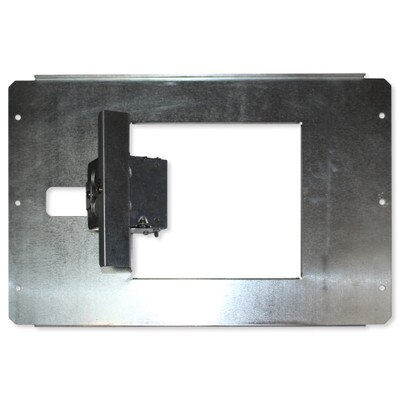

The DataComm Full-Size Rough-In Bracket is used for new construction installation of various DataComm Recessed Low Voltage Full-Size Plates and Expandable Media Boxes. The bracket installs onto standard 16-inch center metal or wood studs and features a built-in mud ring for drywall. The included steel electrical box facilitates pre-wiring of the low voltage plate or box.

  • Sturdy 22GA galvanized steel construction
  • Installs onto 16-inch metal or wood studs
  • Built-in mud ring for drywall
  • Includes single-gang steel outlet box


  • 22GA Galvanized Steel Rough-In Bracket
  • Steel Electrical Box, 2-3/4"
  • 3/8" 10-32 Support Screw for Box Brace

DataComm Electronics Home Theater Products

DataComm Home Theater products provide all the flexibility installers or experienced do-it-yourselfers need to create sophisticated media environments. DataComm plates mount into a standard NEMA enclosure or on to a low-voltage mounting bracket. Straightforward labeling on each plate simplifies room setup and configuration.


Technical Details

  • Manufacturer Part #: 45-0102
  • Dimensions: 17.5 x 12 x 3.75 inches

Compatible Low Voltage Plates:

  • Full-Size Plate with Duplex Receptacle (45-0031-WH)
  • Full-Size Plate with 20A Duplex Receptacle (45-0032-WH)
  • Full-Size Plate with Duplex Surge Suppressor (45-0032-WH)

Compatible Expandable Media Boxes:

  • Box with Duplex Receptacle (45-0051-WH)
  • Box with 20A Duplex Receptacle (45-0052-WH)
  • Box with Duplex Surge Suppressor (45-0062-WH)
