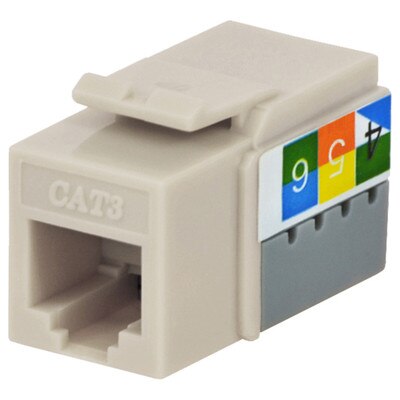

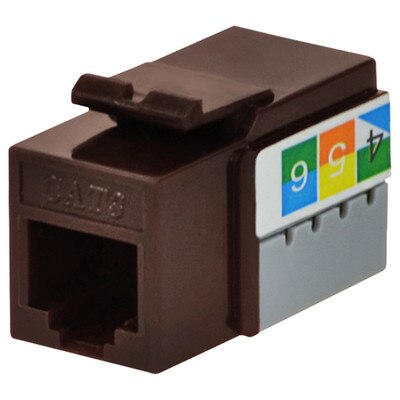

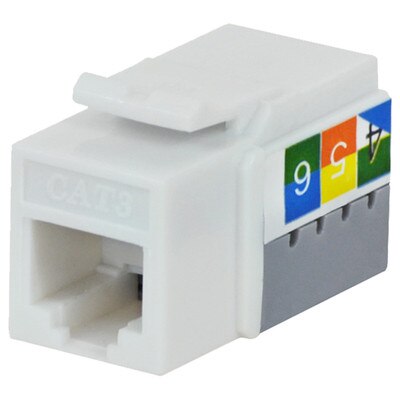

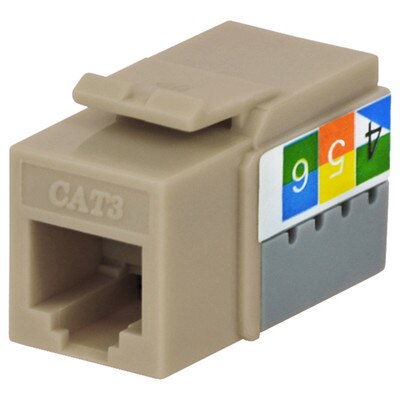

DataComm Cat3 Keystone Snap-In Connector

Keystone Insert with RJ-11/12 Jack

Create a custom RJ-11/12 phone jack for use with Cat3 cable by installing the DataComm Cat3 Keystone Connector. This female RJ-11/12 to 110 IDC insert snaps into any standard keystone wallplate offered by DataComm or various third-party manufacturers. Covered by a 20-year warranty, these inserts are built to last.

• Keystone insert for creating an RJ-11/12 phone jack
• Designed to support high-performance voice/data transmission
• Provides a 110-type insulation displacement connector (IDC)
• Dual wiring code label allows wiring to standard telephone wire or Cat5e wire
• UL listed; meets FCC part 68 requirements

Customize & Connect with DataComm

Long-known for enabling top-quality multimedia connections, manufacturer DataComm Electronics has bolstered its product offering with a complete collection of keystone-style wallplates and inserts. DataComm's Keystone line gives home theater and other multimedia installers the customization options they need from the media experts they trust. Keep data flowing smoothly with solid custom connections by DataComm Electronics.

• Manufacturer Part #: 20-3423-xx
• Cable Type: Cat 3
• Connection Type: Punchdown
• Side 1: RJ-11/12 (Female)
• Side 2: 110 IDC
• Insert Color: White
• Cover: ABS UL94V0
• IDC:
• Plastic: PC
• Pin: Phosphor Bronze Plated with Gold
• Pin: Phosphor Bronze Plated with Gold (50μ)
• PCB: UL 94V0
• IDC Cap: PC
• Approvals: UL, RoHS, FCC Part 68
• Warranty: 20 Years

»DataComm 20-3423 Cat3 Keystone Snap-In Connector Spec Sheet (.pdf)
