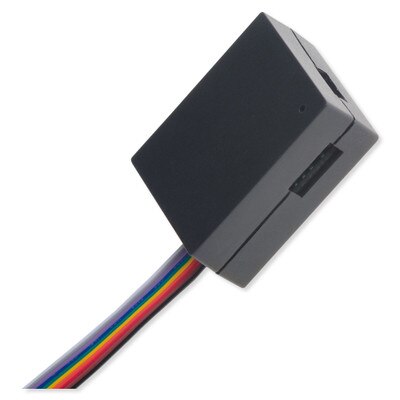

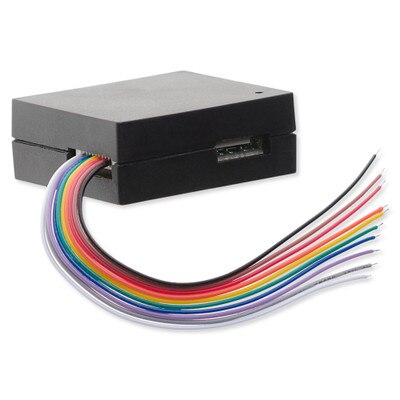

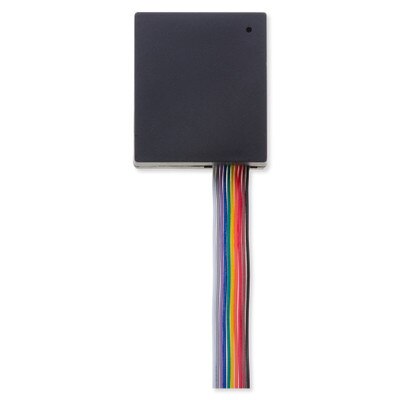

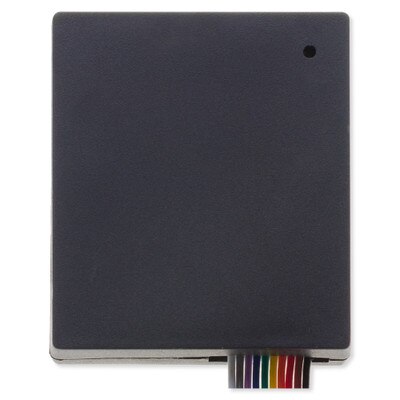

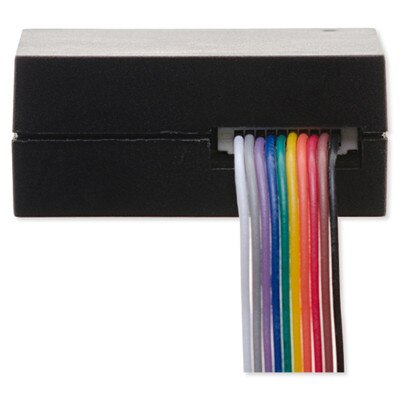

Danalock Universal Module V3, Bluetooth

Control Garage Doors & Electronic Locks With Your Smartphone

Turn almost any 12-24V powered locking mechanism into a wireless, Bluetooth enabled device by connecting it to the Danalock Universal Module V3. This module is designed with two relay outputs and one power output, all which can be controlled remotely using your smartphone via the Danalock app (Android and iOS). This means you'll be able to connect the module to various devices such as a door strike, electromechanical lock, magnetic lock, garage door, gate, or window, and control the device wirelessly using your smartphone. The module can also be configured with Automatic Unlock/Re-Locking functionality, so when the module detects your smartphone as you arrive it will unlock the garage door (or other connected locking mechanism) and re-lock the door after entering.

• Operate electronic devices such as garage doors and electronic locks with your smartphone via Bluetooth and the Danalock app
• Danalock app (iOS or Android) tracks activity and the status of connected devices
• Control who can enter your home by creating digital keys for family members, friends, or temporary guests
• Uses advanced encryption (AES 256) method for transferring data
• Can be integrated into your Bluetooth-friendly, home automation system

Danalock App

Install the Danalock App (iOS or Android) to create unlimited digital keys for family members, friends, or hired help (housekeepers, pet sitters, contractors, etc.). You'll be able to adjust each user's access level by providing permanent or temporary digital keys, and setup alerts to know when the lock was accessed and which digital key was used. Once created, the permanent or temporary access-keys are easy to distribute because they can be sent via SMS or email.

Possible Applications:

• Electric Door Strike
• Electromechanical Lock
• Magnetic Lock
• Gate
• Window
• Window Shades

Contents

• Universal Module V3, Bluetooth
• Manual

Notes

• Make sure to connect the Universal Module to a smartphone during installation to ensure you have sole control of the devices (door, gate, etc.) and can grant access to others as soon as you're the registered owner.
• Requires the free Danalock app and a smartphone (with Bluetooth 4.2).

Automatic Unlock and Flexible Access Control With Danalock

Danalock products are designed to keep your home safe all while providing an easy way to monitor who enters your property when you're away. The Danalock ecosystem includes elegantly designed smart lock products and the Danalock app (iOS or Android), a combination that turns your smartphone into the key to your home. You won't have to worry about losing your house keys or forgetting them anymore. Danalock has made it easy to control your front door because it supports all major smart home systems, including Bluetooth, Z-Wave, Zigbee, Apple HomeKit, and more. Danalock products will enhance your home security, make your smart home smarter, and give you the power to easily provide access to your home to family members and multiple guests – all with your smartphone.

• Manufacturer Part #: UM-V3-B4
• Communication: Bluetooth 4.0
• Bluetooth Range: 5-10 meters
• Operating Voltage Range: 12-24V DC, 12-24V AC
• Max Supply Input (at 24V): 100mA
• Number of Relays:
• 2 Relays
• 1 Power Output
• Type of Relays: Potential-free contacts (NO/NC)
• Max AC Power: 1A at 12V
• Max AC Current: 1A at 12V
• Max Relay Voltage: 48V
• Encryption Level: 256-bit AES
• Color: Black
• Material: ABS
• Dimensions: 1-3/8 x 1-5/6 x 5/8 inches (35 x 40 x 15 mm)

»Danalock Universal Module V3 Installation Manual (.pdf)
»Danalock Universal Module V3 User Manual (.pdf)
