Chief THINSTALL Tilt Wall Display Mount, 26-47"


Usually ships in 1-2 days.

NOTE: This is a heavy/dimensional part; it is not eligible for free shipping.


WARNING: Cancer and Reproductive Harm –


Ultra Low-Profile Design Compliments Ultra-Thin Flat Panel TVs

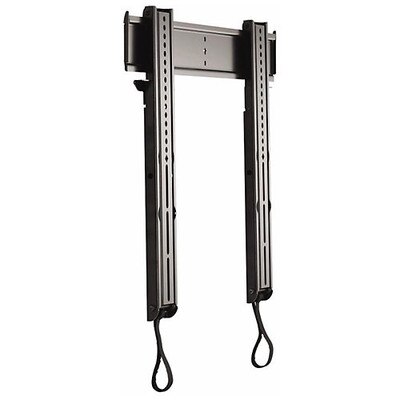

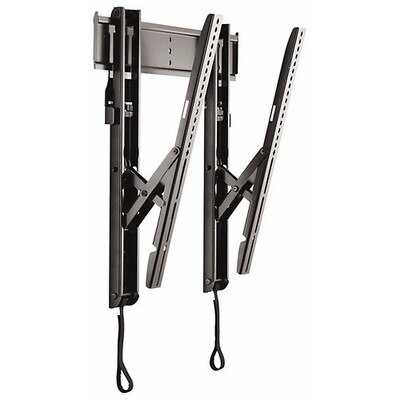

The Chief Manufacturing Thinstall Universal Tilt Wall Mount is the World's Thinnest universal tilt wall mount. It is designed specifically for and only compatible with new ultra-thin Medium TVs 2" (51 mm) deep or less. It provides 12° of smooth, fingertip tilt and tool-less latching for faster installation.

  • Designed specifically for and only compatible with new ultra-thin TVs 2” (51 mm) deep or less
  • Ultra low-profile design compliments ultra-thin flat panel TVs
  • Provides 12° of smooth, fingertip tilt
  • GlideLock provides tool-less latching for faster installation
  • Consists of one-piece steel bracket with two tilting interfaces
  • Each interface includes a sliding flat for increased security
  • Features a cable stand and bottom pullout for cable access
  • Provides lateral shift for increased flexibility

NOTE: Due to their low-profile design, we recommend using an in-wall accessory box to assist in outlet installation

IMPORTANT NOTE: Chief Mounts products are not available to ship outside the U.S. Please contact Chief Mounts directly for international orders.

Ultra-Thin Mounts For Ultra-Thin TVs

Chief's new Thinstall Series Fixed and Tilt Wall Mounts are designed to complement the low profile of the new ultra-thin flat panel TVs. The fixed mount collapses to less than 0.4", and the tilt mount collapses to 0.75" while offering 12° of fingertip tilt.


  • Depth from Wall: 0.75" (19 mm)
  • Tilt: 12°
  • Hole Pattern: 100 x 100 mm to 600 x 400 mm
  • Weight Capacity: 100 lbs (45.4 kg)
  • Maximum Screen Thickness: 2" (51 mm)
  • Color: Black
