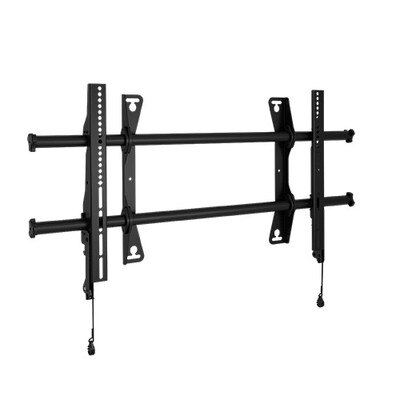

Chief FUSION Fixed Wall Display Mount, 37-63"
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Mount a Large Flat Screen Display Without Tilt
The Chief FUSION Fixed Wall Display Mount (37-63 In) is used to mount a 37-63" flat screen TV in a fixed landscape position. As a fixed mount, this model does not allow manual tilting of the display by the user. However, because the mount doesn't need room to tilt, the display can be mounted as close to the wall as possible.
- Mounts a 37-63" flat screen TV up to 200 pounds in a fixed position
- Allows post-installation "centerless" lateral shift up to 17.4 inches
- Lock-down screws on the sliding bar keep the mount stable
- Built-in cable stand for easy access under the display
- Quick-Store cords use magnets for easy strap storage and access
- Required installation hardware included
Upgraded from the original FUSION series, the new and improved FUSION line of display mounts offer faster installation, improved stability and security, enhanced lateral shift, and better cable management. The Chief FUSION Fixed Wall Display Mount (37-63 In) gives you all the great features of the original design, plus these enhancements.
Built for Quick, Versatile Installation
Designed according to installer feedback, all Chief FUSION display mounts are built for speedy yet safe installation in a variety of settings. These mounts can be fixed to walls with a range of stud distances, and they even come with a custom hardware kit that allows you to hang the mount from rails if you're performing the installation in several phases. The installer can also stack nesting spacers to achieve any desired depth.
One-man installation is sped up thanks to the mount's teardrop-shaped hole for the lag bolts. This allows pre-installation of the bolts, thereby helping the installer mount the wall plate faster without help from a second person.
FUSION-Mounted Displays Are Safe & Easy to Use
The Chief FUSION mount offers features that maximize safety, as well as ease of use. Lock-down screws on the sliding bar keep the mount stable and secure for years, and ClickConnect technology provides an audible click when your flat panel display securely engages with the mount. You also have the option of further securing your display by adding a padlock (not supplied).
Post-installation lateral shift allows up to 17.4 inches (441 mm) of horizontal adjustment for extensive centering capability. The mount also includes integrated cable management with new end caps, making it easy to route power and signal cables, and connect to the wall for a seamless installation. End caps are no longer perfectly round in these new models, so the installer can slip thicker cables behind them without having to remove the caps (although they are still removeable).
A full line of accessories can be installed with the mount and the entire unit can be adjusted together.
IMPORTANT NOTE: Chief Mounts products are not available to ship outside the U.S. Please contact Chief Mounts directly for international orders.
About Chief Manufacturing
Chief Manufacturing designs state-of-the-art mount and rack solutions that complement the technology they support. Chief made its mark in the industry by producing the original projector mount roll, pitch and yaw adjustments in 1978, making registration quick and easy. Today, Chief continues to break new ground with new products and unique, patented features that focus on ease of installation and flexibility for the professional installer.
Specifications
- Manufacturer Part #: LSA1U
- Color: Black
- Lateral Shift: 17.4 inches (441 mm)
- Minimum Depth: 2 inches (51 mm)
- Mounting Pattern Compatibility (Universal Versions): 100 x 100mm – 870 x 400mm
- Orientation: Landscape
- Overall Dimensions: 17.93(H) x 34.75(W) x 2.0(D) inches (455 x 883 x 51 mm)
- Shipping Weight: 16.31 pounds
- Solution Type: Universal
- Typical Screen Sizes: 37 to 63 inches
- Wall Stud Compatibility: 16-32 inches
- Weight Capacity: 200 pounds (90.9kg)
- Certifications: UL Listed
- Warranty: 10 Years
