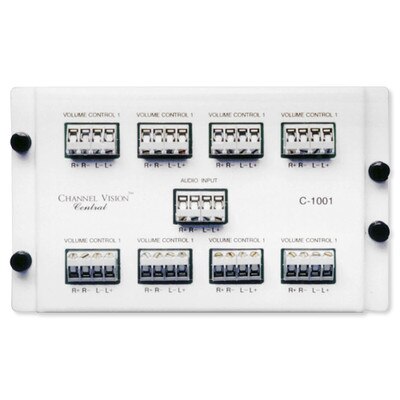

Channel Vision 2x8 Speaker Distribution Module

Features Removable Connectors For Easy Installation

The Channel Vision Speaker Distribution is 1 Pair in x 8 Pair out. The 4 position terminal blocks are UL rated 125V @ 6A and accept 14 to 20 AWG wire. This Speaker Distribution supports power levels to 200 watts.

Note: Requires impedance matching transformers on the volume control.

Channel Vision ARIA IR Control

IR Hubs and connecting blocks make it easy to connect IR receivers and emitters together with a power supply. Amplified hubs buffer the signal while also providing other advanced features. Passive hubs and connecting blocks simply provide a connection point.

• Speaker Distribution 1 Pair in x 8 Pair out (req Impedance Matching)
• 4 position terminal blocks UL rated 125V @ 6A, accept 14 to 20 AWG wire
• Supports power levels to 200 watts

»Channel Vision C-1001 2x8 Speaker Distribution Module Installation Manual (.pdf)
