Arlington Low-Profile TV Box for Shallow Wall Depths


Order now and we'll ship same business day (if ordered before 3 pm PST).


WARNING: Cancer and Reproductive Harm –


Neatly Install Flat Panel TVs On Shallow Walls

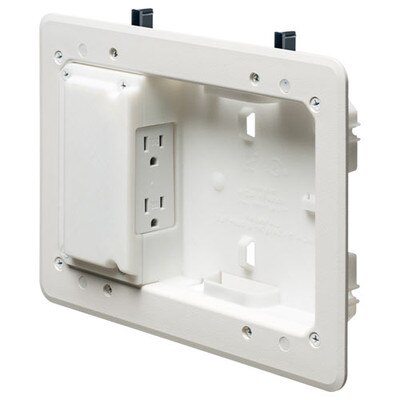

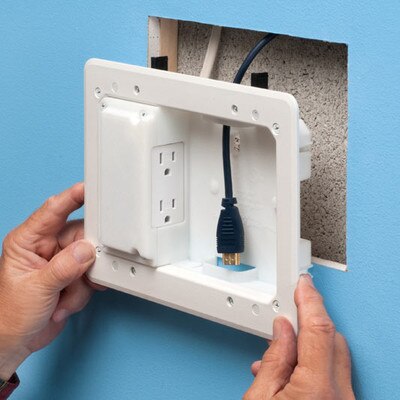

The Arlington Low Profile TV BOX for Shallow Wall Depths is used to install a flat screen TV on 1/2-inch or 5/8-inch drywall with a wall cavity depth 3/4-inches and larger. In addition to accommodating shallow wall depths, the box facilitates installation where plumbing or other obstructions run within the wall cavity. With extra space inside, the box provides room for multiple cables and brackets, ensuring a clean, professional installation.

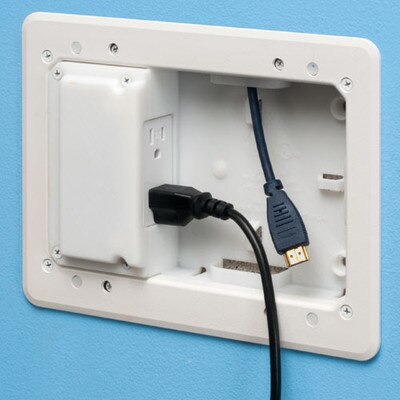

  • Plugs stay inside box so TV mounts closer to the wall
  • Mounting wing screws hold box securely in the wall
  • Includes decorator style receptacle

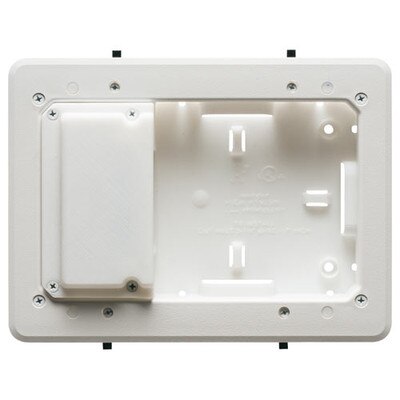

  • Low-Profile TV Box
  • Decorator Style Receptacle

Arlington Industries Inc.

Arlington has become a leading manufacturer of traditional metallic and non-metallic fittings and connectors – and an industry leader in the development of unique and innovative electrical and communications products. They monitor the industry closely to develop products that offer very specific, but innovative solutions to job site problems and situations.


Technical Details

  • Manufacturer Part #: TVL508
  • Size: 5(H) x 8(W) inches
  • Box Depth: 1-1/4 inches
  • Weight: 1.028 pounds
  • Stud Size: 2 x 2, 2 x 3, 2 x 4, or Larger
  • Material: Plastic
  • Listing: cULus
  • Application: Installation of Flat Screen (LCD, LED, Plasma) TV on 1/2" or 5/8" Drywall with Shallow Wall Depths
  • Warranty: 1 Year
