Arlington Low-Profile Low-Voltage Mounting Bracket

Please select option to view availability

SKU: AALVxLP
$1.95 - $2.95

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Install Low Voltage Flush to the Wall

Ideal for cable TV, computer, or communications wiring runs, the Arlington Low-Profile Low-Voltage Mounting Bracket provides an aesthetically pleasing solution for Class 2 low voltage installations. The plastic bracket features a thin front lip and a recessed screw hole, allowing you to seat the wallplate (sold separately) flush against the wall.

  • For cable TV, computer, and communications wiring
  • Allows wallplate to sit flush against the wall
  • Fits 1/4" to 5/8" wallboard, paneling, or drywall
  • Bracket is its own template for cut out
  • Horizontal or vertical mounting

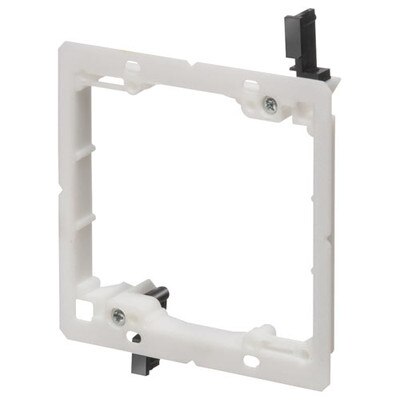

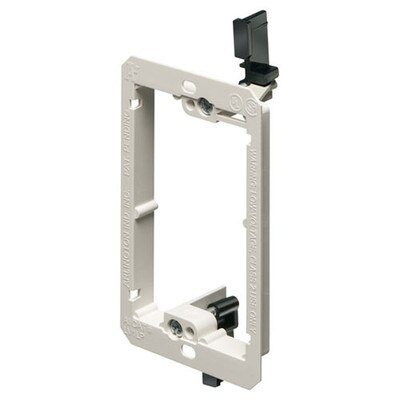

Available Sizes: 1-Gang or 2-Gang

The Low-Profile Low-Voltage Mounting Bracket is used with 1/4" to 5/8" thick wallboard, paneling, or drywall installed on cast concrete or concrete block walls with furring strips. Mounting wings hold the bracket securely against wall when mounting screws are tightened, and the oval hole lets you shift the installed device after installation in order to achieve a straight finish.

Note: For use in low voltage Class 2 installations ONLY.

Arlington Industries Inc.

Arlington has become a leading manufacturer of traditional metallic and non-metallic fittings and connectors – and an industry leader in the development of unique and innovative electrical and communications products. They monitor the industry closely to develop products that offer very specific, but innovative solutions to job site problems and situations.

  • Manufacturer Part #: LV1LP / LV2LP
  • Color: White
  • Material: Plastic
  • Listings: UL, CSA
