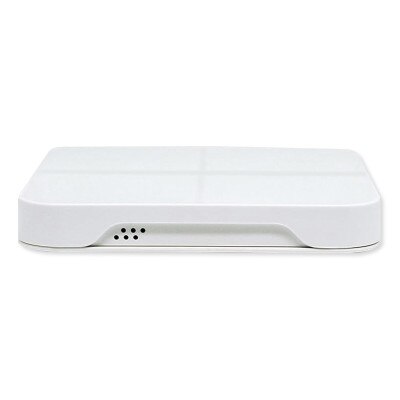

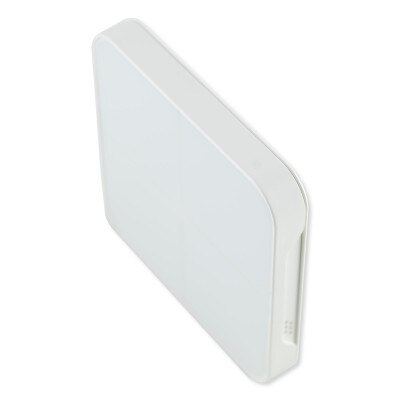

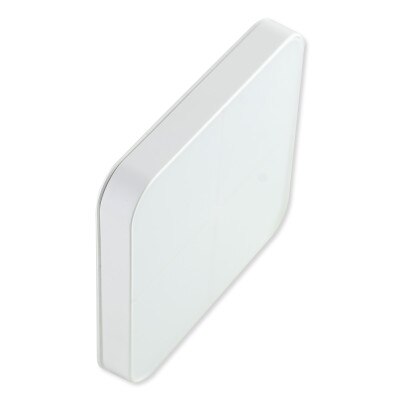

Aeotec Z-Wave WallMote Quad

SKU: AEZW130

Order now and we'll ship same business day (if ordered before 3 pm PST).

$67.99

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Simple Touch or Swipe Commands

Bring the next generation of Z-Wave control to your home with the Aeotec Z-Wave WallMote Quad. The Z-Wave WallMote Quad takes control of up to 4 Z-Wave devices or scenes with touch sensitive buttons that can issue On/Off/Dim/Brighten commands. Built-in LED lights display the action buttons and vibration and touch beep functions help indicate when a touch command is recognized. Mount this remote Z-Wave controller onto a wall to have easy access to your Z-Wave devices.

  • Control up to 4 Z-Wave devices with simple touch sensitive buttons
  • Touch, long press, or slide fingers to command Z-Wave devices
  • LEDs, audio alerts, and vibration signify recognized commands
  • Z-Wave Plus Certified

Installation Details

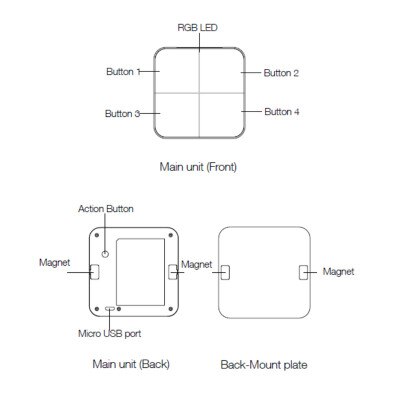

Fix the WallMote Quad's Back Mount Plate to a wall or flat surface. Program your WallMote to add it your Z-Wave network then attach it to the Mount Plate.

Z-Wave Plus Certification

Z-Wave Plus is an upgraded certification program to help you identify products that take advantage of the "Next Gen" Z-Wave hardware platform, also known as 500 Series or Gen5 Z-Wave. Z-Wave Plus certified solutions feature a selected set of extended features and capabilities that enhance your experience with faster and easier installation and setup. Z-Wave Plus advancements also provide longer battery life, faster operation, better wireless range and improved noise immunity.

Contents

  • WallMote Quad
  • (1) Back-Mount Plate
  • (1) Micro USB Cable
  • Double-Sided Tape

NOTE: Requires a Z-Wave hub to operate.

Harmonizing The Digital Home

Aeotec is a leading developer and manufacturer of wireless products which complement the "Digital Smart Home". Their products are designed to save energy, protect the home, and ultimately improve life. They focus on providing innovation, the highest caliber of quality, and unparalleled user experience without sacrifice.

Specifications

  • Manufacturer Part #: ZW130
  • UPC: 810667024000
  • Power supply: Rechargeable lithium battery, 3.7 V, 640mAh
  • Battery charger input: Micro USB port, DC 5V ± 0.5V, max 1A
  • Operating temperature: 0°C to 40°C
  • Relative humidity: 8% to 80%
  • Operating distance: Up to 394 feet/120 meters outdoors

Downloads

»Aeotec ZW130 Z-Wave Wallmote Quad User Manual (.pdf)
