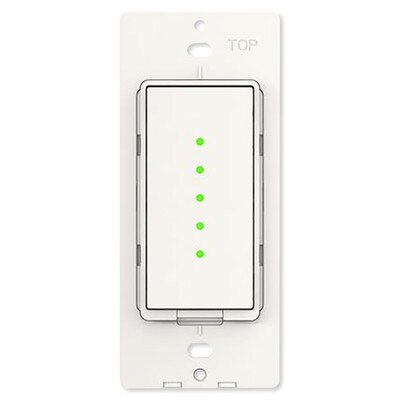

ABB-free@home Dimmer Switch, 3 Wire
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Dim and Brighten Lights with Free@home
Add control to a household light (incandescent, LED, and more) or other device with the ABB-Free@home Dimmer Switch, 3-Wire. This switch supports lights up to 600W incandescent and 150-watt LEDs. It features a wireless receiver that connects to the ABB-free@home system, allowing for wireless remote control of the switch. Include it in a smart home scene and use it to remote control other ABB-free@home connected devices.
- Replaces an existing wall switch and can be programmed as a remote to control other ABB-free@home devices
- Binary input allows for connection of a mechanical switch for three-way applications with scene control from multiple locations
- 5 Green LED lights indicate brightness level when in operation
- LED backlight assists with locating the keypad in the dark
- Fits in standard decorator-style wall plates
The dimmer switch can be programmed as a remote to control other ABB-free@home devicesWhen integrated into the ABB-free@home smart home system. The rocker paddle can be programmed as a keypad controlled with the upper and lower rocker functions.
With ABB-free@home integration, you can configure the dimmer switch to work with a motion detector and automatically switch off after a specified period of inactivity for energy savings. You can also set the maximum and minimum brightness levels to which the switch will dim and set the brightness of the LEDs for day and night or disable the LEDs altogether.
Contents
- Light Switch
- Manual
NOTE: If three dimmer switches are mounted next to one another in a three-gang installation, the maximum output power per device will be reduced to 550 watts.
ABB: Power & Productivity For A Better World
ABB (ASEA Brown Boveri), officially branded the ABB Group, is one of the most expansive engineering corporations in the world. From its hometown in Zurich, Switzerland, this Swedish-Swiss power and automation manufacturer spans across ~100 countries, bringing its technology to every corner of the globe. With history harking back to the 1880's, ABB is a renowned behemoth of cutting-edge development. Create a better world in your own corner of the world with products by ABB.
Specifications
- Manufacturer Part #:
- DS-6.1-LA: Light Almond
- DS-6.1-WH: White
- Load Type:
- Incandescent/halogen: (600 W) 15 A
- Magnetic low voltage transformer (MLV): (600 W) 15 A
- Electronic low voltage transformer (ELV): (600 W) 15 A
- Compact Fluorescent Lamps (CFL): (150 W) 15 A
- LED Lamps (Max. 20 lamps): (150 W) 15 A
- Operative Voltage: 120 VAC, 60Hz
- Connection: Hot and Neutral wires required
- Operating Temperature: 23°F to 113°F (-5°C to 45°C)
- Certifications: UL, FCC, IC
