2GIG SecureNet Rely Kit with Camera

Complete Wireless Security System

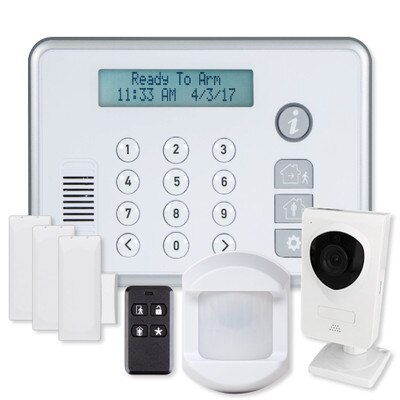

Designed to provide professional grade security at an affordable price, the 2GIG Rely Kit 3 includes everything needed to monitor three entryways (windows/doors) and two living areas of a home. This complete wireless security system includes an intuitive control panel, (3) door/window sensors, one motion detector, an indoor Wi-Fi HD camera, and a keychain remote. The included 2GIG Rely sensors can also connect to other 2GIG systems, giving you the option to easily expand or upgrade your system anytime.

• Control panel with internal cellular radio for communication
• Door/window contacts monitor 3 open/close objects
• Wi-Fi HD camera (720p) with IR LEDs for night vision
• PIR motion detector has 30 x 50-ft sensing range
• Arm/disarm with panel or key ring remote
• Supports remote management/monitoring
• Includes DIY installation hardware
• SecureNet Smartlink+ app for Android or iOS devices

The 2GIG Rely Kit 3 is easy to program and install because it's designed to be used with the SecureNet Smartlink+ app for Android or iOS devices. Using your smartphone, you'll be able to test and program this security system with in-app installation videos featuring best practices for each specific sensor and installation site.

Kit Components

2GIG Rely Panel: Serves as the hub and main control panel for the security system. It can support up to 16 wireless security zones and up to 8 user codes. A built-in piezo sounder provides sound for an alarm siren, voice/tone chimes, system status notifications, and keypad presses. It has an LCD screen with backlit buttons to indicate system status and features an integrated 345 MHz wireless transceiver that can work with many existing 2GIG sensors.

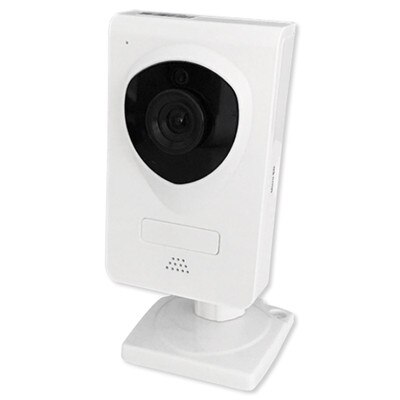

Wi-Fi HD Camera: This wireless indoor camera captures high definition video (720p), features IR LEDs for night vision, provides two-way audio for remote communication, and records video/audio to the camera or the cloud. Up to (8) cameras can be supported by this security system and you can view live or recorded video on your smartphone.

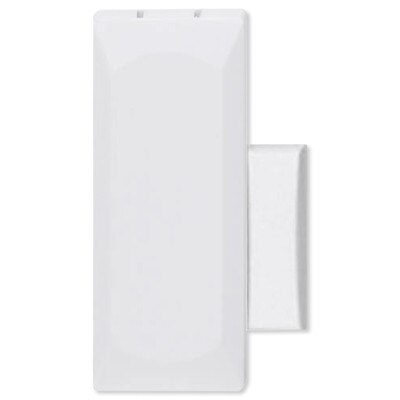

(3) Door/Window Contacts: Monitors the status of any open/close object, including a door, window, cabinet, drawer, etc. Narrow 3/4" sensor fits in small spaces. Can be used for a second security zone; external input accepts Normally Closed (NC) dry contact devices. Tamper-resistant cover triggers an alert if removed.

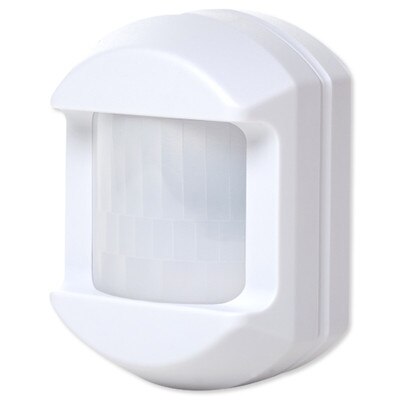

Passive Infrared (PIR) Motion Detector: Detection range covers 30(D) x 50(W) feet with 90-degree downward field of view. Ignores pets up to 55 pounds.

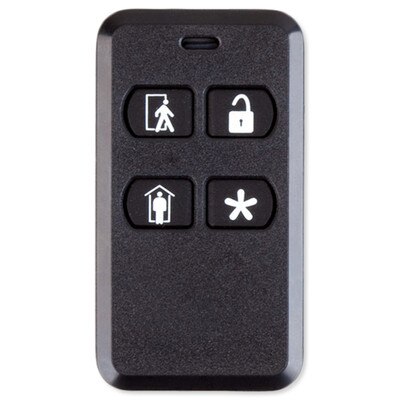

Key Ring Remote: Slips onto a keychain, so when you leave and arrive, you can quickly secure your home. Four buttons: Arm (Stay), Arm (Away), Disarm, Aux. Wireless range up to 350 feet. Fits in a purse or pocket.

SecureNet Smartlink+ App

The 2GIG Rely Kit 3 can be monitored from anywhere using the SecureNet Smartlink+ app. An active service plan is required as well as a smartphone (Android or iOS). The 2GIG Rely panel has an integrated cellular radio that communicates with the SecureNet Smartlink+ app and monitoring center to provide security without the need of a traditional phone line.

The SecureNet Smartlink+ app features the following:

Interactive Security: Arm and Disarm with zone bypass. View zone and real-time system status, and receive notifications and alerts.

Full DIY Capability: In-app, easy to follow instructions allow you to self-install Rely sensors and cameras on your account.

Built-In Automation: Create recipes with "if this, then do that" automations. When specific events occur, devices, notifications, or recordings can be triggered.

Full CS Data Sync: In-app account and user updates are synced to central station automation with fully integrated central station partners.

Video Monitoring: Continuous recording with cloud backup for event and motion recordings. Pan, tilt, and two-way audio on supported cameras.

Manage Users: Easily access levels, panel codes, and set individual user contact information. Simple to add, remove, and edit users.

Set Notifications: Manage email and text, plus, push notifications for alarm and other system events.

Built for Custom Branding: Smartlink+ can be completely white-label, customized for your brand, and submitted to your App Store and Google Play account.

Back-End Support

2GIG has partnered with SecureNet, a leader in powering some of the world's largest professional security providers, to provide backend services for the Rely platform. There's no fee to become a Rely Dealer, no minimum monthly volume, and no activation fee.

Contents

• 2GIG Rely Panel
• 2GIG Wi-Fi HD Camera (2GIG-RELY-KIT3)
• 2GIG Wireless Door/Window Sensor (2GIG-DW10-345)
• 2GIG Wireless Passive Infrared Motion Detector (2GIG-PIR1-345)
• 2GIG 4-Button Key Ring Remote (2GIG-KEY2-345)
• User Manual

Notes

• Requires a smartphone with the SecureNet Smartlink+ app (Android or iOS) for the initial set-up, and to monitor the system remotely.
• Indoor Wi-Fi HD Camera requires 120VAC outlet.

Innovation Drives 2GIG Technology

Now under Nortek's family of Linear products, 2GIG offers intuitive and creative home technology with its premier self-contained, all-in-one security and home automation system. 2GIG's GoControl system has become a leading control hub for Z-Wave wireless systems, has and won numerous industry awards, including TechHome's 2011 Security Product of the Year and the 2012 Overall Maximum Impact Award at Electronic Security Expo (ESX). With 2GIG in control, users experience technology they never thought possible.

• Manufacturer Part #: 2GIG-RELY-KIT3

2GIG Rely Panel

• Power Input: 100-240 VAC, 50-60 Hz
• Power Output: 5V, 1.5A, 7.5W max
• Mobile App: SecureNet Smartlink+ app
• Android (4.1 or later)
• iOS (9.0 or later)
• Back-Up Battery: Flat Lithium, 4.44Wh 3.7V (included)
• Peak Current: 1.7A
• Cellular Network: 3G GSM AT&T Radio
• Radio Frequency: 908.4MHz US
• Operating Temperature: 32° to 120° F (0° to 49° C)
• Storage Temperature: 30° to 140° F (34° to 60° C)
• Max. Relative Humidity: 90% non-condensing
• Dimensions: 3.8(H) x 5.2(W) x 0.9(D) inches (96.52 x 132.08 x 22.86 mm)
• Certifications: UL, FCC, CE, RoHS
• Warranty: 1-Year Limited

Indoor Wi-Fi HD Camera (2GIG-CAM-101-NET)

• Video Resolution: 720p (1280 x 720, 640 x 360, 320 x 180)
• Compression: H.264 and MJPEG (32kbps -2Mbps)
• Night Vision: 4 IR LEDs (15 feet range)
• IR-Cut Filter: Yes
• Camera Sensor: 1/4-inch CMOS, 1 Mega Pixel
• Lens: 3.6mm
• Viewing Angle: Horizontal: 60°
• Frame Rate: 1 to 30 FPS
• Pan/Tilt: No
• Audio: Two-Way
• Wi-Fi Connectivity: 802.11 b/g/n (2.4Ghz)
• Wired Connectivity: 10/100 Mbps RJ45 Ethernet
• Setup: WPS, Wired
• Motion Detection: Yes
• Video Storage: MicroSD (not included)
• Power Input: 5V DC, >4W
• Regulatory Listings: FCC, RoHS
• Warranty: 1-Year Limited

Door/Window Contact (2GIG-DW10-345)

• Wireless Signal Range: 350 feet, open air, with 2GIG Wireless Control Panel
• Code Outputs: Alarm; Alarm Restore; Supervisory; Low Battery; External Alarm; External Restore; Tamper; Tamper Restore
• Transmitter Frequency: 345.000 MHz (crystal controlled)
• Transmitter Frequency Tolerance: ±15kHz
• Transmitter Bandwidth: 24kHz
• Modulation Type: Amplitude Shift Keying-On/Off Keying (ASK-OOK)
• Unique ID Codes: Over one million different code combinations
• Supervisory Interval: 70 minutes
• Peak Field Strength: Typical 36,000 uV/m at 3m
• External Input Sampling Current: 20 uA
• External Input: Accepts N/C dry contact devices
• Reed Switch Magnetic Sensitivity: 10 to 20 amp turns
• Reed Sensitivity: 0.625 in. (1.59 cm) minimum gap, 0.85 in. (2.16 cm) typical
• Magnet Dimensions: 1.3(L) x 0.435(W) x 0.312(H) inches (3.3 x 1.1 x 0.79 cm) typical
• Magnet Type: Rare earth
• Sensor Dimensions: 2.59 x 1.03 x 0.49 inches (6.58 x 2.62 x 1.24 cm)
• Weight: 1.1 ounces (31.2 g), including battery and magnet
• Housing Material: ABS plastic
• Color: White
• Operating Temperature: 32° to 104° F (0° to 40° C)
• Relative Humidity: 5 to 95 percent Non-Condensing
• Battery: Two Panasonic CR2032 or equivalent Lithium batteries (installed with pull tab)
• Included Accessories: Two Phillips flat-head screws
• Warranty: 2-Year Limited

Passive Infrared Motion Detector (2GIG-PIR1-345)

• Wireless Signal Range: 350 feet, open air, with 2GIG Wireless Control Panel
• Code Outputs: Alarm; Alarm Restore; Tamper; Tamper Restore; Supervisory; Low Battery
• Transmitter Frequency: 345.000 MHz (crystal controlled)
• Transmitter Frequency Tolerance: ±15kHz
• Transmitter Bandwidth: 24kHz
• Modulation Type: Amplitude Shift Keying-On/Off Keying (ASK-OOK)
• Unique ID Codes: Over one million different code combinations
• Supervisory Interval: 70 minutes
• Peak Field Strength: Typical 50,000 uV/m at 3m
• Sensor Type: Quad element
• Pet Immunity: Selectable – 15 kg (33 lbs) or 25 kg (55 lbs; default)
• Sensitivity Jumper: Selectable – High or Low (default)
• Suggested Mounting Height: 7.5 feet (2.3 m)
• Sensor Range: 30 x 50 feet (9.1 x 15.2 m)
• Max. Horizontal Sensing Angle: 90 degrees
• Dimensions: 3.2(L) x 2.5(W) x 1.9(H) inches (8.12 x 6.35 x 4.82 cm)
• Weight: 3.7 ounces (104.9 g)
• Housing Material: ABS plastic and polycarbonate
• Color: White
• Operating Temperature: 32° to 120° F (0° to 49° C)
• Relative Humidity: 5 to 95 percent Non-Condensing
• Battery: One (1) Panasonic CR123A or equivalent Lithium battery (included)
• Regulatory Listings: ETL, FCC Part 15, Industry Canada
• Included Accessories: Mounting brackets, 2 long Phillip's head screws, 2 plastic wall anchors
• Warranty: 2-Year Limited

Key Ring Remote (2GIG-KEY2-345)

• Wireless Signal Range: 350 feet, open air, with 2GIG Wireless Control Panel
• Code Outputs: Arm; Disarm; Panic; Relay Control
• Transmitter Frequency: 345.000 MHz (crystal controlled)
• Transmitter Frequency Tolerance: ±15kHz
• Transmitter Bandwidth: 24kHz
• Modulation Type: Amplitude Shift Keying-On/Off Keying (ASK-OOK)
• Unique ID Codes: Over one million different code combinations
• Supervisory Interval: 70 minutes
• Peak Field Strength: Typical 40,000 uV/m at 3m
• Dimensions: 1.23(L) x 2.26(W) x 0.45(H) inches (3.12 x 5.74 x 1.14 cm)
• Weight: 0.65 ounces (18.4 g)
• Housing Material: ABS plastic
• Color: White
• Operating Temperature: 32° to 104° F (0° to 40° C)
• Relative Humidity: 5 to 95 percent Non-Condensing
• Battery: One Panasonic CR2032 or equivalent Lithium battery
• Included Accessories: Key ring
• Warranty: 2-Year Limited
