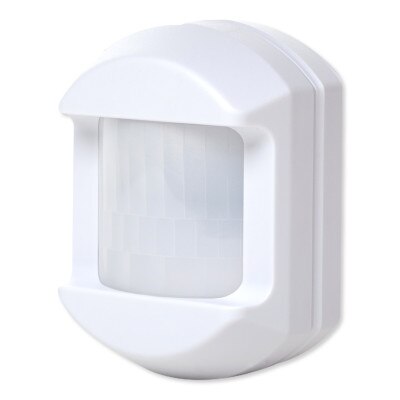

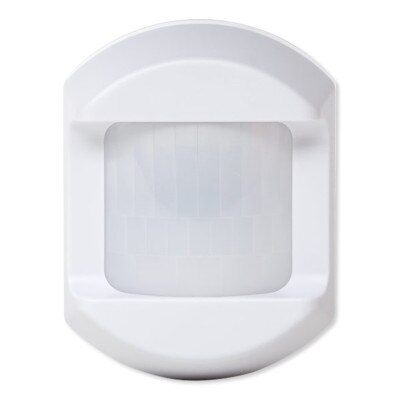

2GIG Wireless Passive Infrared Motion Detector

Indoor PIR Motion Detector

Monitor activity around your home with the 2GIG Wireless Passive Infrared Motion Detector. Perfect for any home or small business, the PIR detector senses movement up to a 30-foot distance within a 50-foot horizontal view. It also features pet immunity for small to medium-sized animals up to 55 pounds, allowing pets to roam your home anytime without setting off an alarm. The motion detector mounts indoors either flat against a wall or in a corner with the included installation hardware.

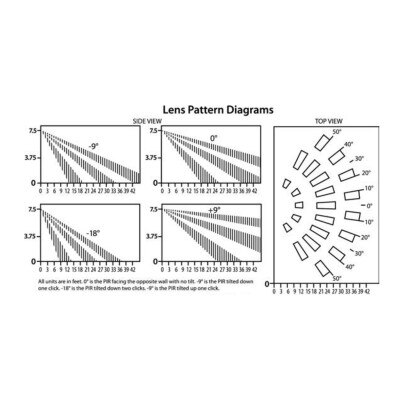

• Detection range covers 30(D) x 50(W) feet
• 90-degree downward field of view
• Ignores pets up to 55 pounds
• Works with 2GIG wireless systems (345 MHz)

Contents

• PIR Motion Detector
• Lithium Battery
• Mounting Bracket
• Flat Wall Mount
• Corner Mount
• (3) Screws
• (2) Dowels

NOTE: Requires connection to a 2GIG wireless system, such as a GoControl Panel or a Vario wireless-enabled system. Not rated for outdoor use.

Innovation Drives 2GIG Technology

Now a member of NICE's family brands, 2GIG offers intuitive and creative home automation and smart security technologies. Their premium security and home automation security panels, thermostats, and security sensors provide reliable and easy to use solutions to improve your home living or routine business days. 2GIG's has become a leading name in Z-Wave wireless systems, and has won numerous industry awards since 2011. With 2GIG in control, users experience cutting edge technology to make their homes smarter, safer, and more efficient. 2GIG offers intuitive and creative home technology with its premier self-contained, all-in-one security and home automation system. 2GIG's GoControl system has become a leading control hub for Z-Wave wireless systems, has and won numerous industry awards, including TechHome's 2011 Security Product of the Year and the 2012 Overall Maximum Impact Award at Electronic Security Expo (ESX). With 2GIG in control, users experience technology they never thought possible.

• Manufacturer Part #: 2GIG-PIR1-345
• Wireless Signal Range: 350 feet, open air, with 2GIG Wireless Control Panel
• Code Outputs: Alarm; Alarm Restore; Tamper; Tamper Restore; Supervisory; Low Battery
• Transmitter Frequency: 345.000 MHz (crystal controlled)
• Transmitter Frequency Tolerance: ±15kHz
• Transmitter Bandwidth: 24kHz
• Modulation Type: Amplitude Shift Keying-On/Off Keying (ASK-OOK)
• Unique ID Codes: Over one million different code combinations
• Supervisory Interval: 70 minutes
• Peak Field Strength: Typical 50,000 uV/m at 3m
• Sensor Type: Quad element
• Pet Immunity: Selectable – 15 kg (33 lbs) or 25 kg (55 lbs; default)
• Sensitivity Jumper: Selectable – High or Low (default)
• Suggested Mounting Height: 7.5 feet (2.3 m)
• Sensor Range: 30 x 50 feet (9.1 x 15.2 m)
• Max. Horizontal Sensing Angle: 90 degrees
• Dimensions: 3.2(L) x 2.5(W) x 1.9(H) inches (8.12 x 6.35 x 4.82 cm)
• Weight: 3.7 ounces (104.9 g)
• Housing Material: ABS plastic and polycarbonate
• Color: White
• Operating Temperature: 32° to 120° F (0° to 49° C)
• Relative Humidity: 5 to 95 percent Non-Condensing
• Battery: One (1) Panasonic CR123A or equivalent Lithium battery (included)
• Regulatory Listings: ETL, FCC Part 15, Industry Canada
• Included Accessories: Mounting brackets, 2 long Phillip's head screws, 2 plastic wall anchors
• Warranty: 2-Year Limited

»2GIG 2GIG-PIR1-345 Passive Infrared Motion Detector Installation Manual (.pdf)
