2GIG 4-Button Key Ring Remote

Arm/Disarm Your GoControl System

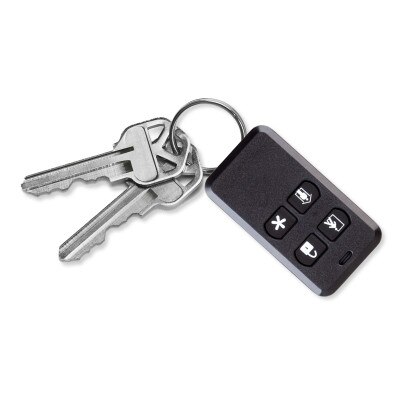

Conveniently arm and disarm your GoControl or Vario security system with the 2GIG 4-Button Key Ring Remote. The remote comes with a keyring to slip onto your keychain, so when you leave and arrive, you can quickly secure your home. The remote also provides an auxiliary button that can be programmed as a panic button to immediately trigger an alarm in the event of an emergency. Alternatively, the aux button could be used to operate system-controlled lights, a garage door opener, or another system-controlled device.

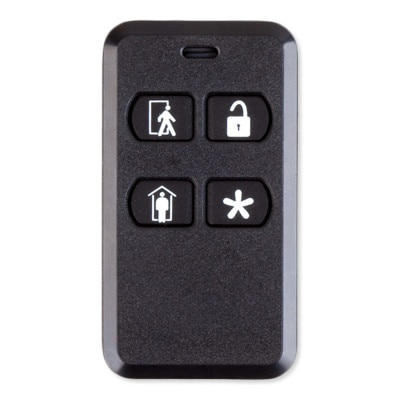

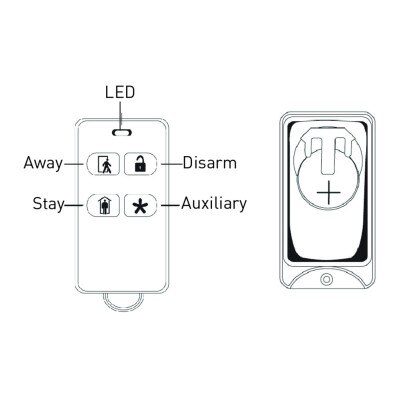

• Four buttons: Arm (Stay), Arm (Away), Disarm, Aux
• Small remote fits in a purse or pocket
• Works with 2GIG wireless systems (345 MHz)
• Wireless range up to 350 feet

Contents

• 4-Button Remote
• Key Ring
• Lithium Battery

Note: Requires connection to a 2GIG wireless system, such as a GoControl Panel or a Vario wireless-enabled system.

Innovation Drives 2GIG Technology

Now a member of NICE's family brands, 2GIG offers intuitive and creative home automation and smart security technologies. Their premium security and home automation security panels, thermostats, and security sensors provide reliable and easy to use solutions to improve your home living or routine business days. 2GIG's has become a leading name in Z-Wave wireless systems, and has won numerous industry awards since 2011. With 2GIG in control, users experience cutting edge technology to make their homes smarter, safer, and more efficient.

• Manufacturer Part #: 2GIG-KEY2-345
• Wireless Signal Range: 350 feet, open air, with 2GIG Wireless Control Panel
• Code Outputs: Arm; Disarm; Panic; Relay Control
• Transmitter Frequency: 345.000 MHz (crystal controlled)
• Transmitter Frequency Tolerance: ±15kHz
• Transmitter Bandwidth: 24kHz
• Modulation Type: Amplitude Shift Keying-On/Off Keying (ASK-OOK)
• Unique ID Codes: Over one million different code combinations
• Supervisory Interval: 70 minutes
• Peak Field Strength: Typical 40,000 uV/m at 3m
• Dimensions: 1.23(L) x 2.26(W) x 0.45(H) inches (3.12 x 5.74 x 1.14 cm)
• Weight: 0.65 ounces (18.4 g)
• Housing Material: ABS plastic
• Color: White
• Operating Temperature: 32° to 104° F (0° to 40° C)
• Relative Humidity: 5 to 95 percent Non-Condensing
• Battery: One Panasonic CR2032 or equivalent Lithium battery
• Included Accessories: Key ring
• Warranty: 2-Year Limited

»2GIG 2GIG-KEY2-345 4-Button Key Ring Remote Instructions (.pdf)
