LEVITON STRUCTURED MEDIA CENTER ENCLOSURE WITH COVER

SERIES 140, 280 & 420 ENCLOSURES WITH SCREW ON COVER

The Series 140, 280 and 420 Structured Media enclosures are used to terminate all of the home-run wires from wall outlets and provide a distribution point for voice, data and video wiring in a residence or multiple dwelling unit. These enclosures are ideal for new installations or retrofits. The 140, 280 and 420 Structured Media enclosures (SMCs) can be surface-mounted or recessed by mounting between wall studs (on 16 inch centers), using provided wood screws for a clean and professionally finished appearance. After installation of the drywall, during the trim-out stage, the distribution panel(s) and cover can be installed.

Available in 14 Inch (Series 140), 28 Inch (Series 280), and 42 Inch (Series 420).

Features

• Cutout pattern in bottom accommodates single gang or full width AC power modules and Mini and Universal DC power supplies
• Mounting slots on the enclosure simplify adjustment for different sheetrock depths
• Sheetrock depth marks (1/2", 5/8", 3/4") on the enclosure simplify alignment
• Lance slots provide clean cable management within the enclosure
• Product may be surface- or recess-mounted
• Flush Mount Cover overlaps ¾" to hide possible uneven drywall cuts around the enclosure
• Ships with a cardboard insert to help prevent drywall debris or paint over-spray from entering the enclosure during the rough-in stage of installation
• Multiple knockouts on the top and bottom support conduit up to 2" in diameter and facilitate cable routing and entry
• Self-healing foam grommets protect cable bundles and protects from dust entering the enclosure

STRUCTURED MEDIA SYSTEMS FROM LEVITON

Home office, home theater, home entertainment, home networking, home security, home technology - the definition of home is evolving. We expect more from our residences now than ever before, and a host of new words and concepts are entering our collective vocabulary to reflect that change. The wired home, once a novelty, has become essential - providing crucial access to advances such as high-speed internet, digital television and data networking. Advances that are becoming vital to functioning in the digital age. The challenge lies in creating an infrastructure that works with the systems already in a home. The answer lies in the Structured Media Systems from Leviton.

Series 280 and 420 Enclosure Spec Sheet (.pdf)
Series 140 Enclosure Spec Sheet (.pdf)
Series 140, 280 and 420 Instruction Sheet (.pdf)

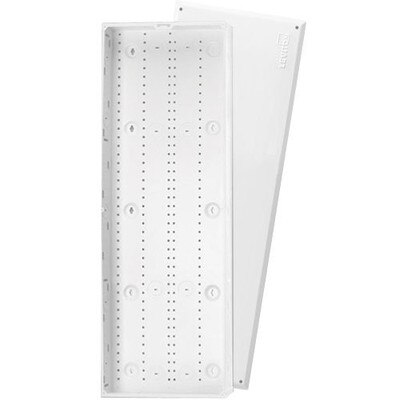

Series 420 (42 Inch) Enclosure Specifications

• Series: Series 420
• Height: 42 Inch
• Width: 14.38 Inch
• Depth: 3.6 Inch
• Gauge of Steel: 18 Gauge
• Paint Finish: Powder-Coated
• Max. Module Capacity: 12 (depends on what type used)
• Color: White
• Standards and Certifications: ACA/CULUS/UL/TIA/EIA/FCC

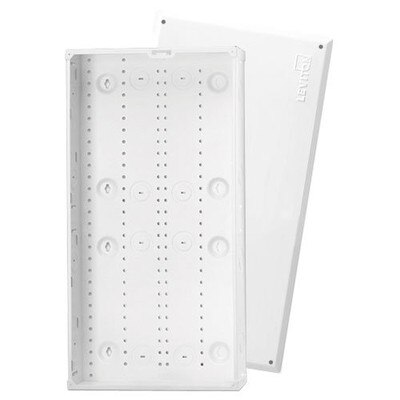

Series 280 (28 Inch) Enclosure Specifications

• Series: Series 280
• Height: 28 Inch
• Width: 14.38 Inch
• Depth: 3 Inch
• Gauge of Steel: 18 Guage
• Paint Finish: Powder-Coated
• Max. Module Capacity: 8 (depends on what type used)
• Color: White
• Standards and Certifications: ACA/CULUS/UL/TIA/EIA/FCC

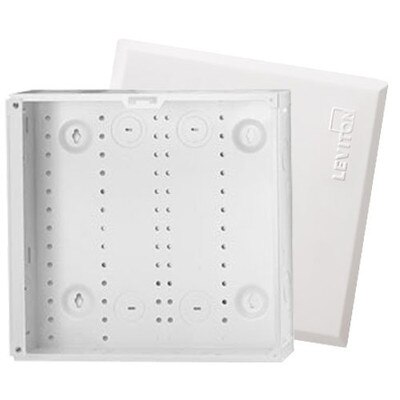

Series 140 (14 Inch) Enclosure Specifications

• Dimensions: Enclosure: 14.0" H x 14.38" W x 3.63" D
• Cover: 15.32" H x 15.62" W x 0.20" D
• Materials: Enclosure: 20-gauge, white powder-coated steel
• Cover: 18-gauge, white powder-coated steel
• Capacity: Maximum of two full-sized distribution panels
• cULus and ACA listed
• Complies with all TIA-568A and TIA-570B requirements
• Meets FCC part 68
• UL Listed for fire and alarm systems
