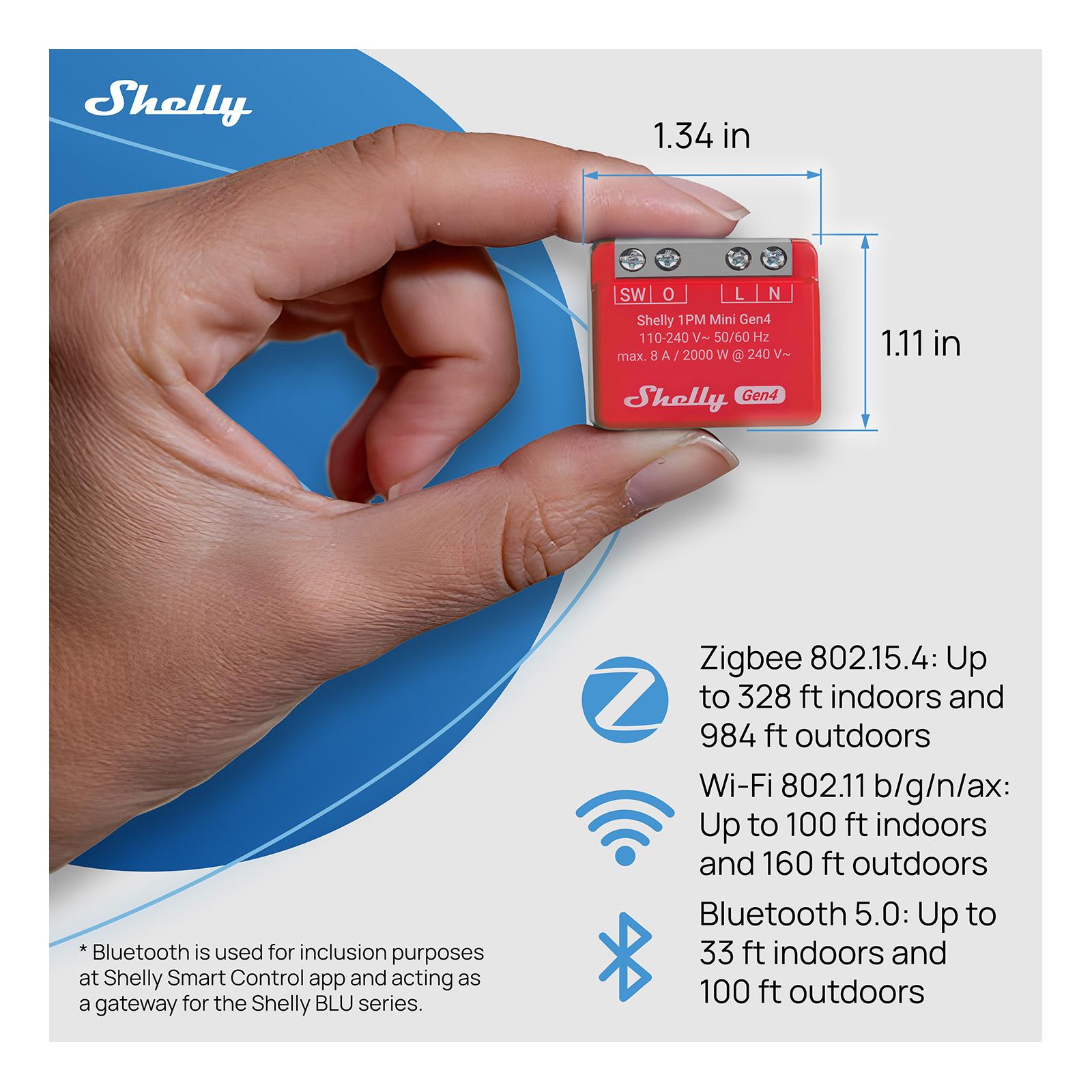

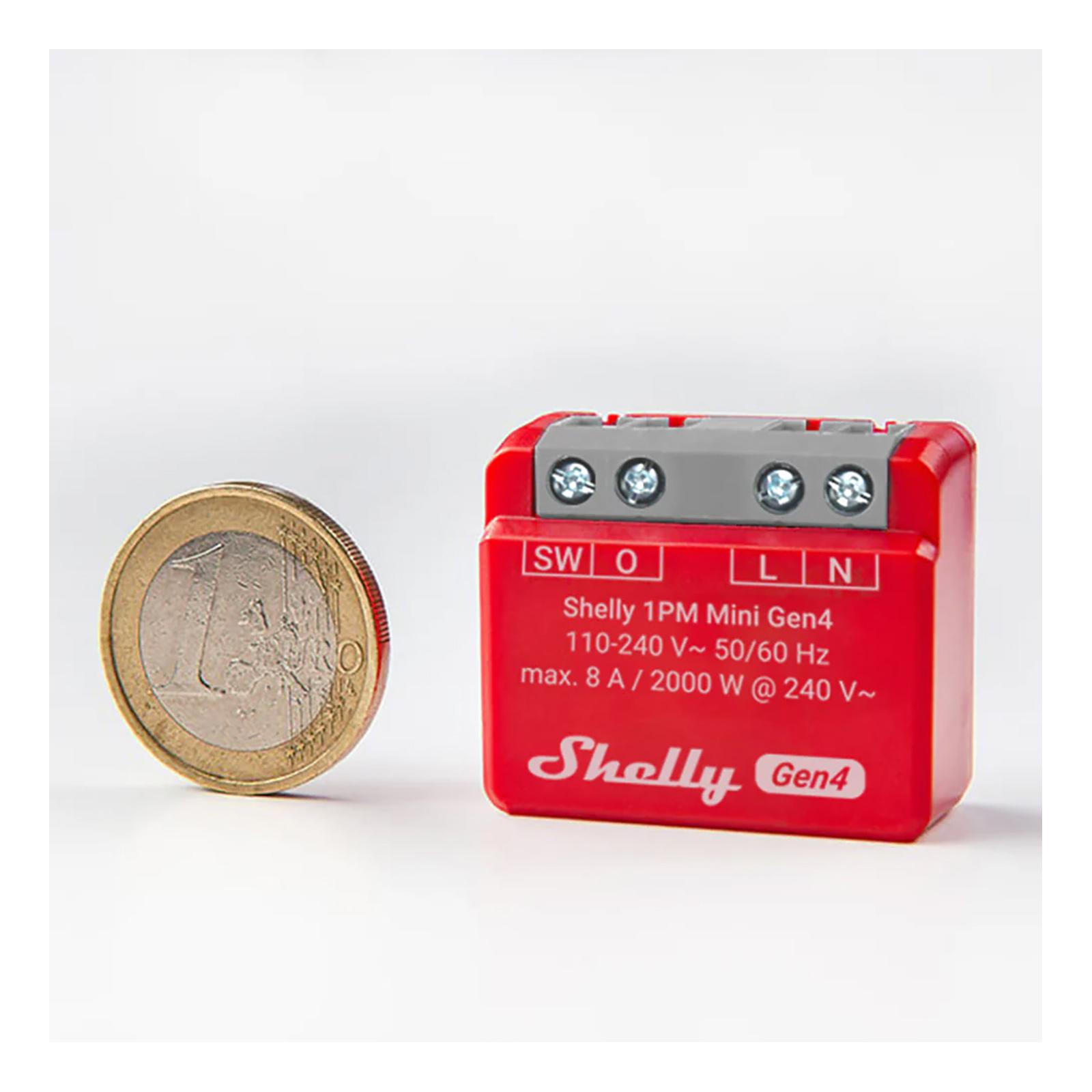

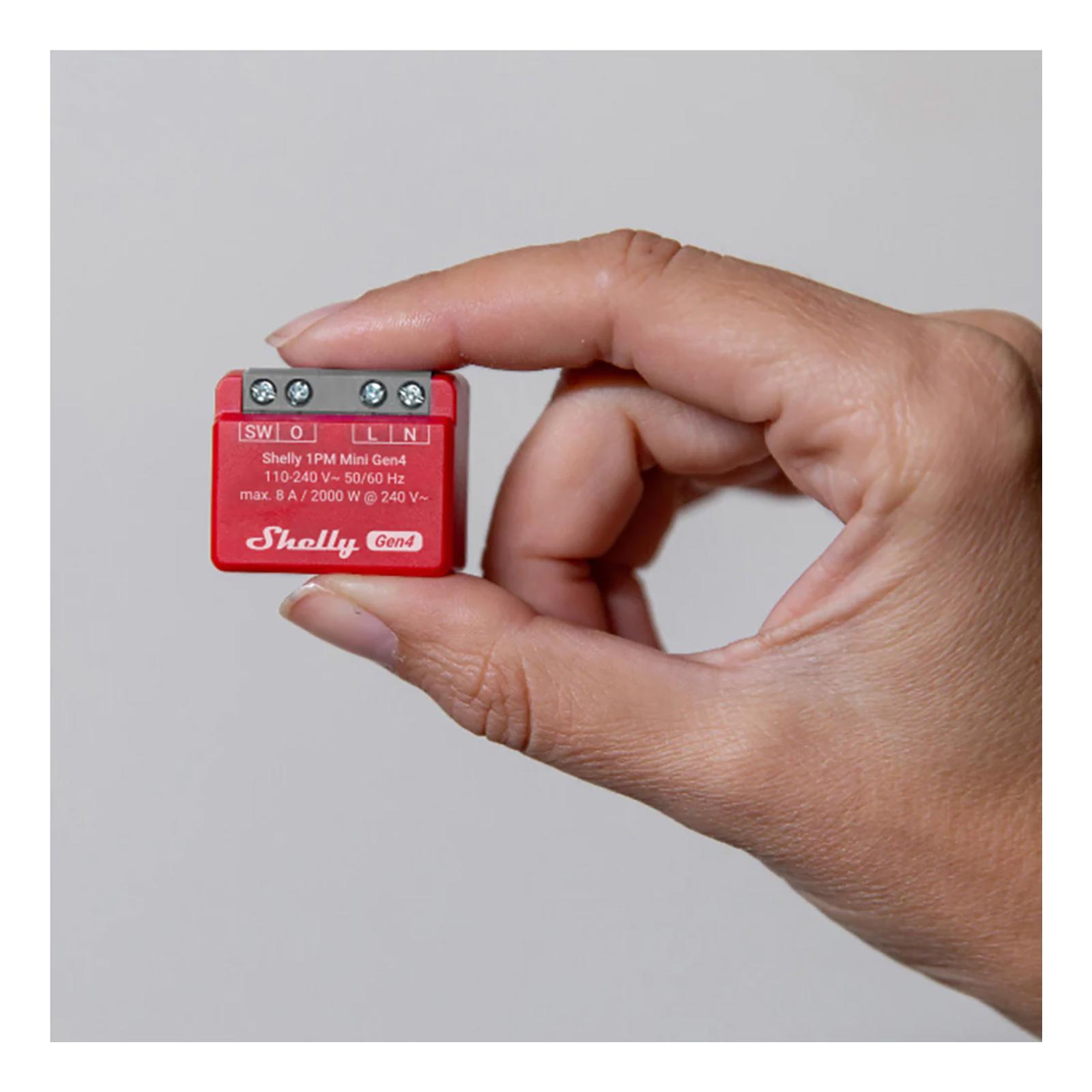

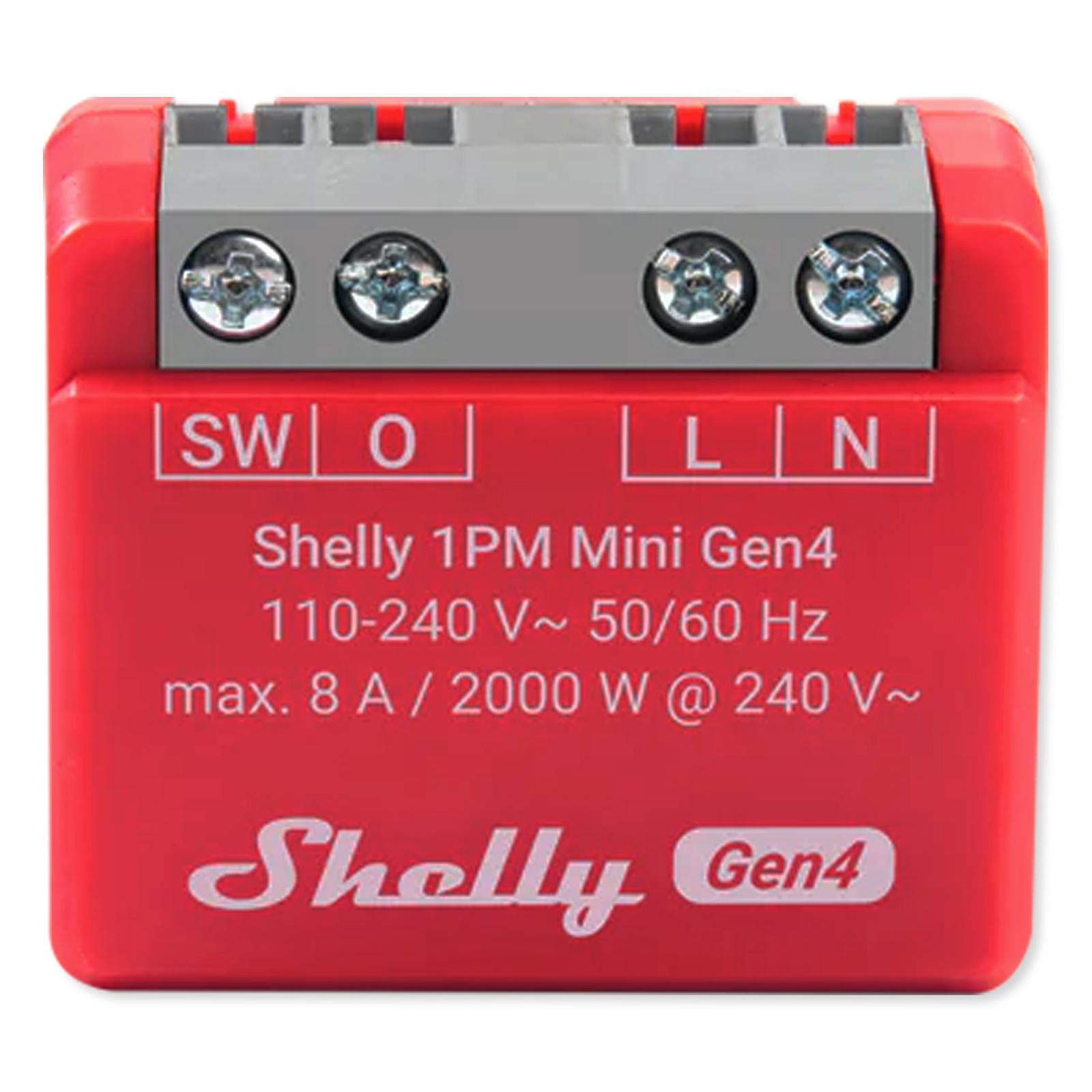

Shelly 1PM Mini Gen4 Smart Relay

Add Wi-Fi or Zigbee Connectivity To Connected Lights And Appliances

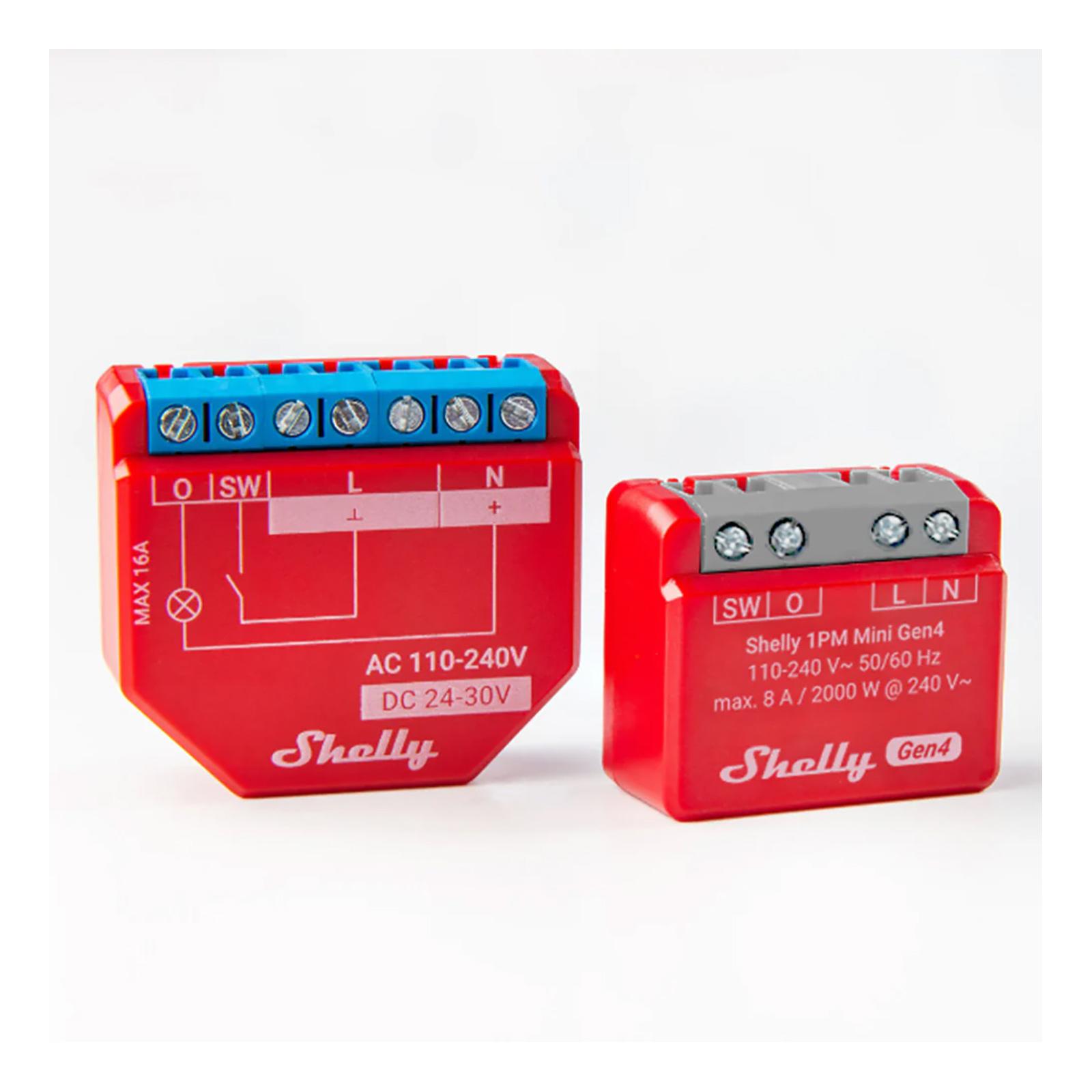

Upgrade an outlet or switch to include Wi-Fi or Zigbee connectivity by installing the Shelly 1PM Mini Gen4 Smart Relay. This mini relay module adds remote control via Wi-Fi or Zigbee over lights or devices controlled by the switch or outlet. It features 1 switch/button input, 2 power supply inputs, and 1 relay output with power measurement and supports resistive (incandescent bulbs, heating devices), capacitive (capacitor banks, electronic equipment, motor start capacitors), and inductive (LED light drivers, transformers, fans, refrigerators, air-conditioners). The Mini Gen4 Smart Relay tracks power consumption of controlled devices, enabling you to remotely monitor energy usage and turn devices On/Off to save on electricity costs. As an improved version of the Shelly 1PM Mini Gen3, the Shelly 1PM Mini Gen4 Smart Relay is equipped with a more advanced processor, Zigbee connectivity, and Matter certification for enhanced and more versatile performance.

The Shelly 1PM Mini Gen4 Smart Relay can be directly controlled and monitored using your smartphone or tablet using the Shelly Smart Control App for iOS and Android. Power Monitoring data is stored online in the Shelly Smart Control app for you to access and analyze historical usage of your monitored devices. The Mini Gen4 Smart Relay acts as a Bluetooth gateway for Shelly BLU devices to increase the size and scope of your smart home network. Additionally, Matter certification, as well as Zigbee and Wi-Fi range extenders, allow the Mini Gen4 Smart Relay to be included in a variety of smart home networks, including voice assistant ecosystems such as Amazon Alexa and Google Home.

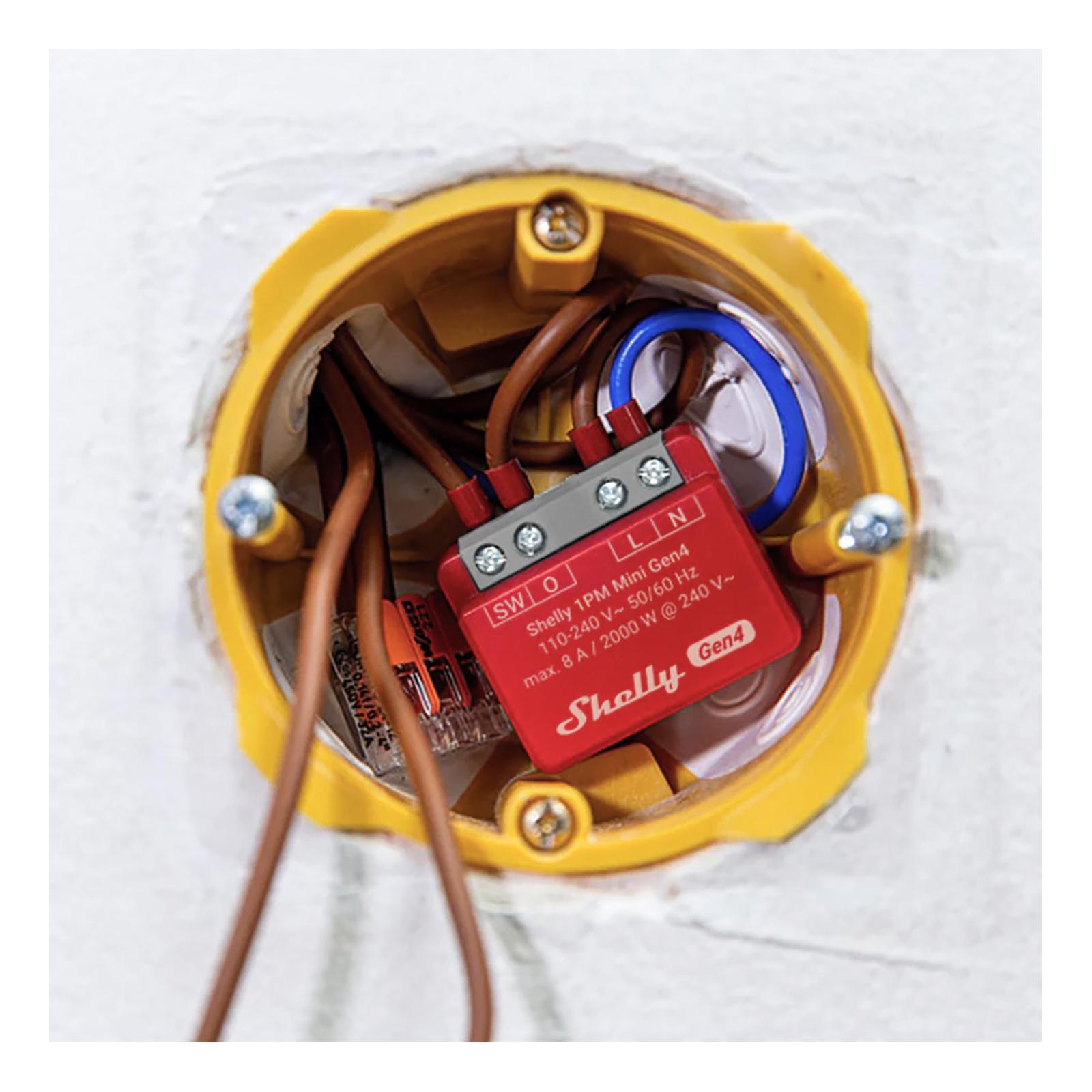

• Relay module installs behind wall outlets, light switches, or in the casting of an appliance to add Wi-Fi or Zigbee connectivity
• Control the Mini Gen4 Smart Relay independently without a smart hub, or use it as a Wi-Fi and Zigbee extender as part of your smart home network
• Acts as a Bluetooth gateway for Shelly BLU devices to include them into your network
• Equipped with an upgraded processor, Zigbee connectivity, and expanded flash memory for improved performance
• Real-time power monitoring with free cloud storage for data analysis of energy consumption
• Supports automated or scheduled scenes, as well as scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
• Voice control compatible with Amazon Alexa and Google Assistant

Shelly Smart Control App – Everything at Home Connected

Enjoy enhanced home automation control and precise monitoring of your Shelly devices no matter where you are with the Shelly Smart Control app. The app connects to Shelly's cloud service to help you control your connected devices remotely and send notifications for all automated events in your home directly to your smart device. You can easily configure devices and manage their settings individually, or you can create personalized scenes by combining Shelly devices to trigger certain actions in your home automation. The Shelly Smart Control App supports real-time power metering with power management (PM) devices, smart plugs, and smart bulbs in order to allow you to build complex automation solutions for improved energy efficiency and lower electricity bills.

• Easy Inclusion and Control: Include and name new devices in the Shelly Smart Control app, assign them to the rooms they are located in, and group them into scheduled or automated scenes.
• Custom Dashboard: Create multiple dashboards for quick access to your preferred devices, rooms, and scenes. Issue commands using your dashboards or your preferred voice assistant towards individual devices or a group of devices.
• Smart Scenes: Combine multiple devices into one smart scene with pre-set triggered actions. Lower the lights when the TV is turned on for a "Movie night". Cut off the power and send a notification when a space heater has been left on past 9am while you are "Away at Work".
• Custom Schedules and Timers: Teach your home how to make you more comfortable by setting custom schedules based on your agenda. You can set a Shelly controlled switch to turn on the outdoor lights at 7:00 PM on workdays, or turn on your heater an hour before you return from work.
• Energy Monitoring: An energy consumption panel gives you a detailed view of your live and recorded energy usage from devices controlled by Shelly products. The information is stored in a free cloud and fully accessible to you for further analysis of your energy consumption habits.
• Works with Alexa: The Shelly Smart Control app is natively compatible with Amazon Alexa.

Contents

• Wi-Fi 1PM Mini Gen4 Smart Relay
• Manual

NOTE: Requires connection to a Wi-Fi network.

Shelly Provides A 100% Wireless Smart Home

Shelly creates innovative and affordable smart home devices for residential and business applications. Shelly, formerly Qubino, now focuses on providing Wi-Fi and Z-Wave compatible smart home solutions. Shelly devices are among the smallest automation control devices in the world, allowing them to find their place in nearly any sized smart home installation. Shelly utilizes the latest technologies to deliver superior automation, safety, and energy efficiency to their customers without breaking down their walls or bank accounts.
