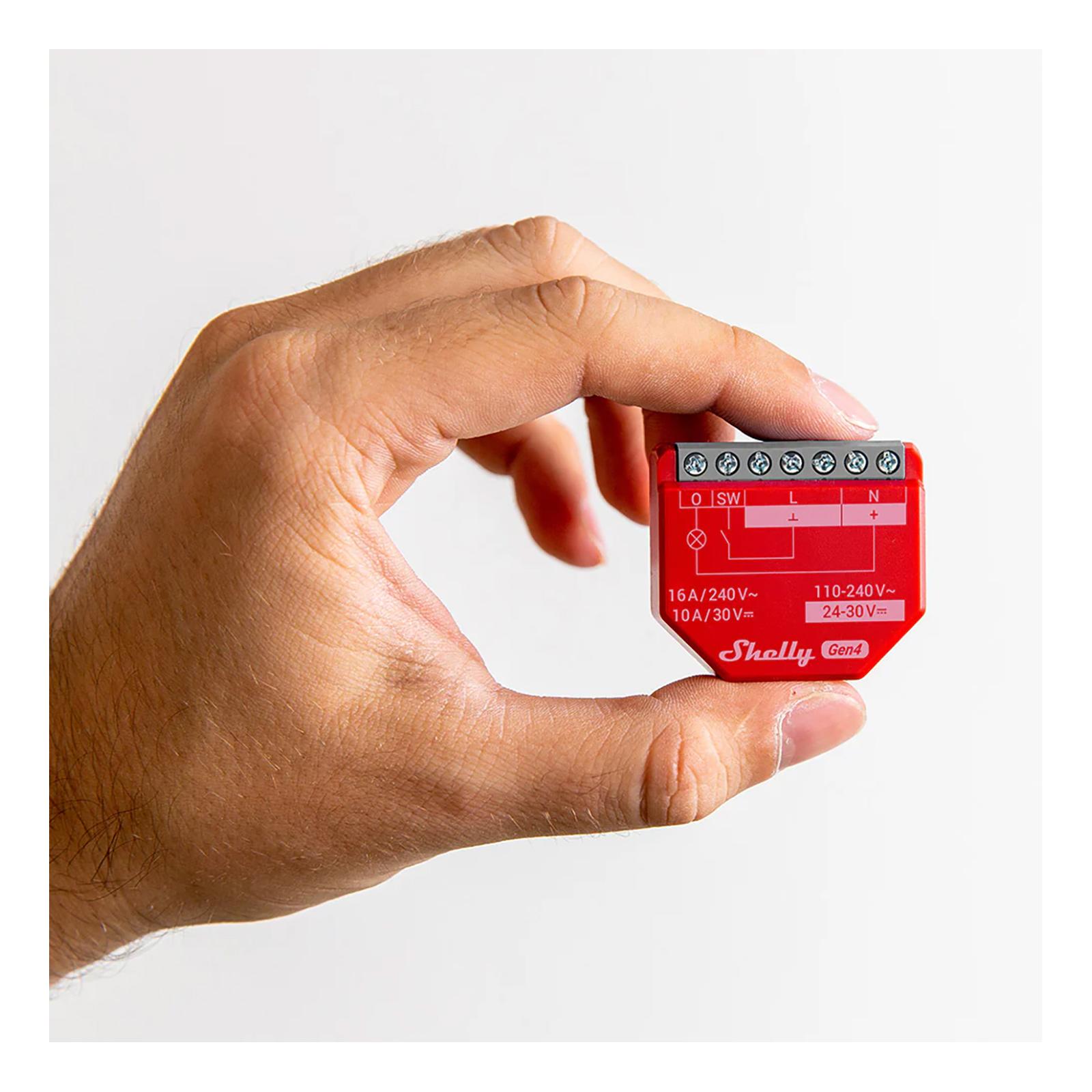

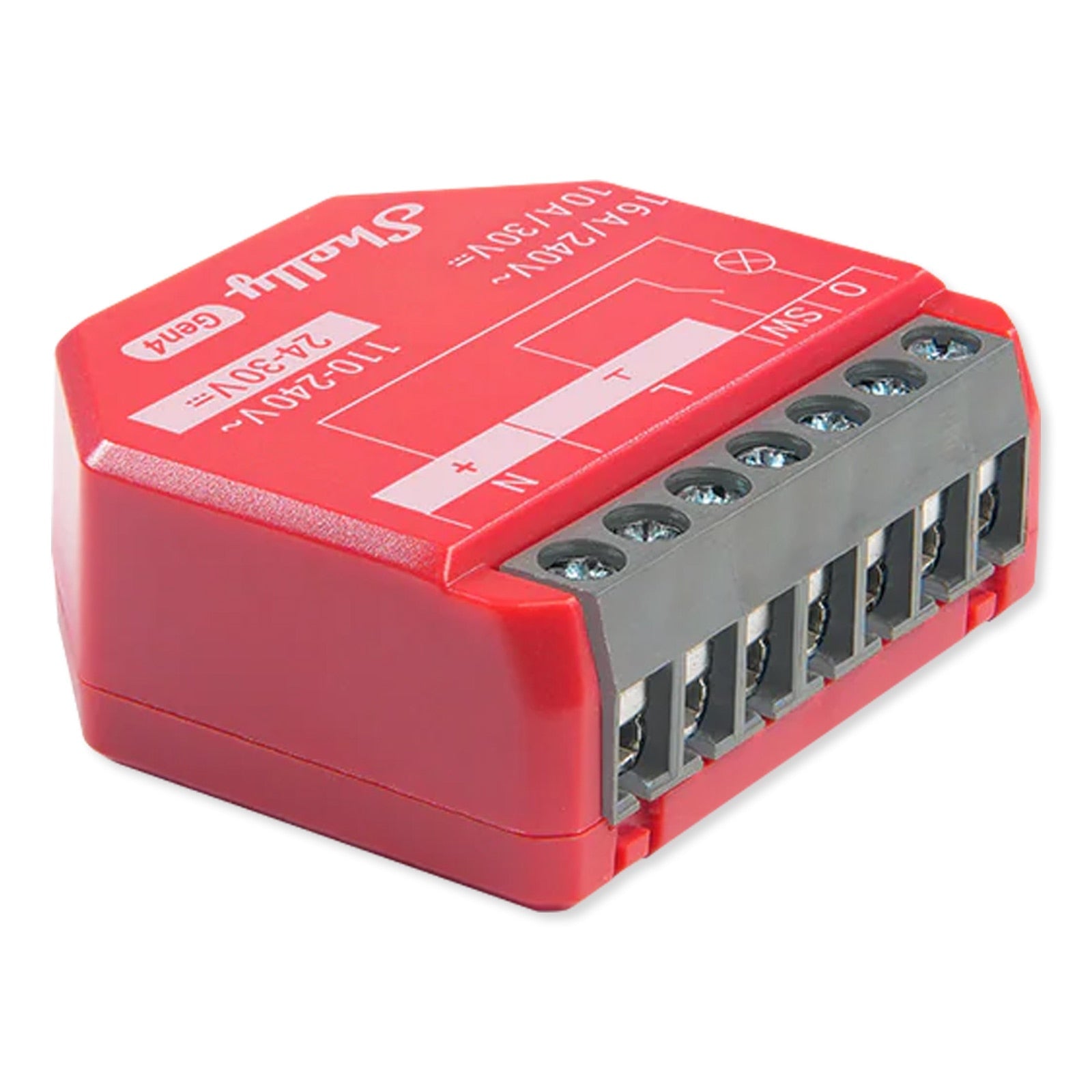

Shelly 1PM Gen4 Smart Switch with Power Monitoring

Add Multiprotocol Connectivity & Power Monitoring To Connected Devices

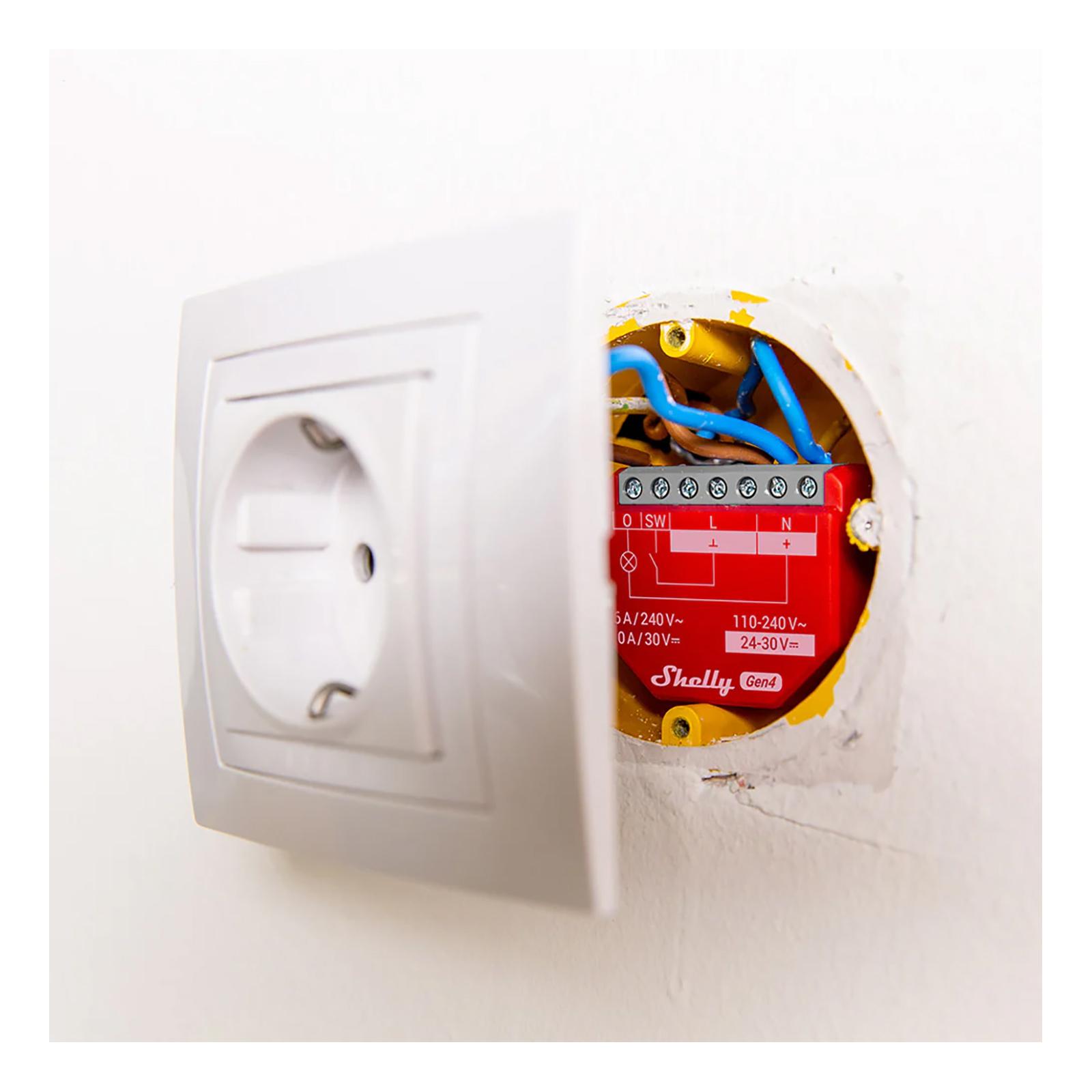

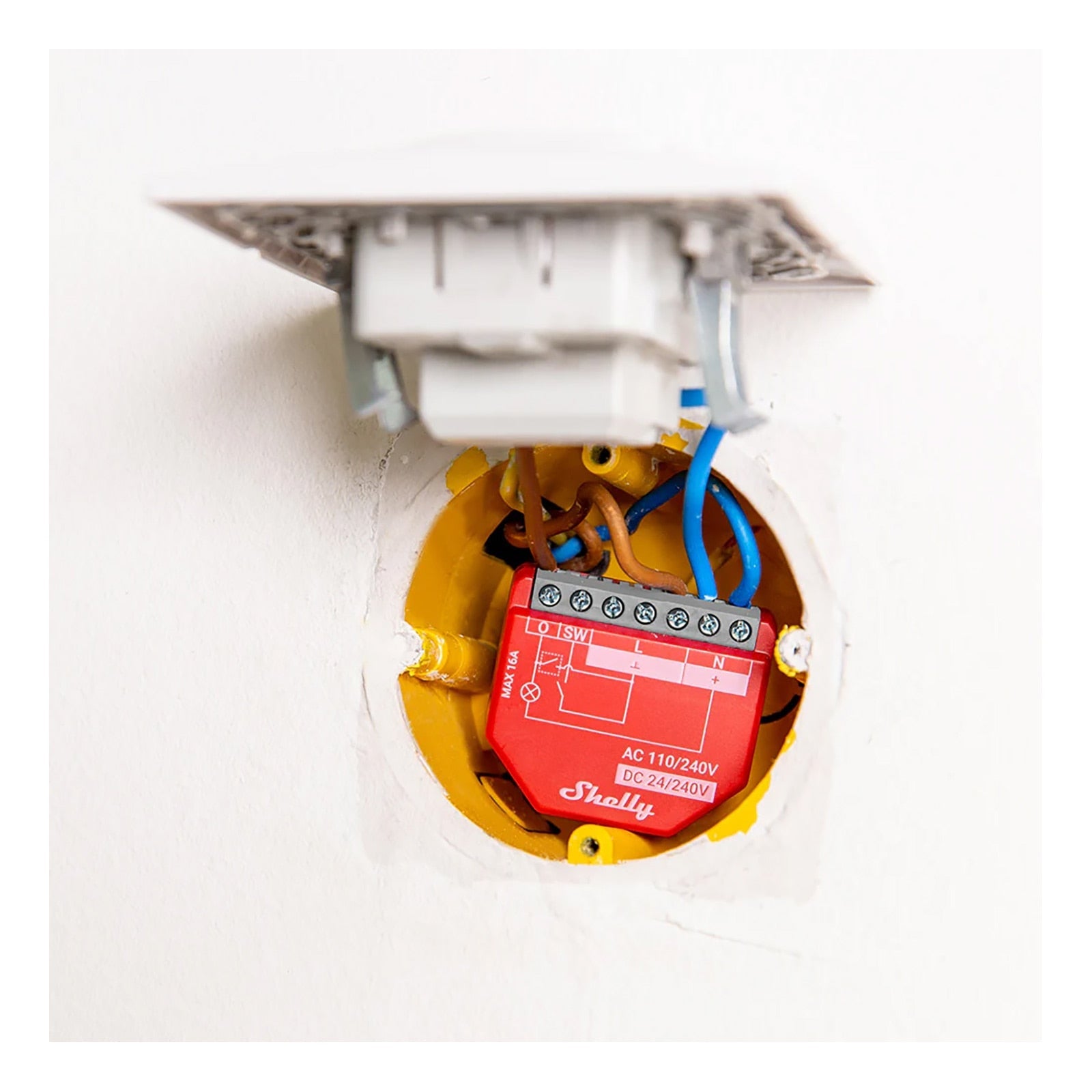

Add Wi-Fi, Bluetooth, Matter, or Zigbee connectivity to a wall outlet, light switch, or an electrical appliance with the Shelly 1PM Gen4 Smart Switch with Power Monitoring. This compact smart switch is designed to be installed behind an existing wall switch or outlet to add multiprotocol support to lights and connected devices; plus, it's equipped with a power meter so you can get real-time energy monitoring of connected devices. It features 1 switch/button input and 5 power supply inputs with 1 relay output with power measurement. It's compatible with various load types, such as resistive loads (incandescent bulbs and heating devices), capacitive loads (capacitor banks, electronic equipment, and motor start capacitors), and inductive with RC Snubber (LED light drivers, transformers, fans, refrigerators, air-conditioners, washing machines, tumble dryers).

The Shelly 1PM Gen4 Smart Switch operates without the need for a smart hub and can easily be controlled via the Shelly Smart Control app (for iOS and Android). It is also compatible with voice assistants like Amazon Alexa, Google Assistant, and Siri. Once integrated, you can create automation scenes, set schedules, and trigger local actions. For example, by installing a Shelly 1PM Gen4 in both your bedroom and kitchen, you can have the lights in those rooms automatically turn on at a specific time each morning, allowing you to wake up without the need to stumble around trying to find the light switch. And since it has a power meter, you'll have access to how much power consumption is used from the lights connected to the smart switch.

• Adds Wi-Fi, Zigbee, Matter, or Bluetooth functionality by installing behind wall outlets or light switches – no smart hub required
• Monitors and records energy consumption of devices controlled by connected switch or outlet to track activity status and optimize energy usage
• Ideal for lights, garage doors, fan or ventilation control, door locks, irrigation pumps, heaters, and other small appliances
• Supports up to 16 amps at 240 volts AC and 10 amps at 30 volts DC and offers overheating protection
• Compatible with SmartThings and voice assistants, including Amazon Alexa and Google Assistant, as well as Siri through Matter integration
• Supports scripting, HTTPS, MQTTS, Inbound and Outbound Web Sockets

Shelly Smart Control App – Everything at Home Connected

Enjoy enhanced home automation control and precise monitoring of your Shelly devices no matter where you are with the Shelly Smart Control app. The app connects to Shelly's cloud service to help you control your connected devices remotely and send notifications for all automated events in your home directly to your smart device. You can easily configure devices and manage their settings individually, or you can create personalized scenes by combining Shelly devices to trigger certain actions in your home automation. The Shelly Smart Control App supports real-time power metering with power management (PM) devices, smart plugs, and smart bulbs in order to allow you to build complex automation solutions for improved energy efficiency and lower electricity bills.

• Easy Inclusion and Control: Include and name new devices in the Shelly Smart Control app, assign them to the rooms they are located in, and group them into scheduled or automated scenes.
• Custom Dashboard: Create multiple dashboards for quick access to your preferred devices, rooms, and scenes. Issue commands using your dashboards or your preferred voice assistant towards individual devices or a group of devices.
• Smart Scenes: Combine multiple devices into one smart scene with pre-set triggered actions. Lower the lights when the TV is turned on for a "Movie night". Cut off the power and send a notification when a space heater has been left on past 9am while you are "Away at Work".
• Custom Schedules and Timers: Teach your home how to make you more comfortable by setting custom schedules based on your agenda. You can set a Shelly controlled switch to turn on the outdoor lights at 7:00 PM on workdays, or turn on your heater an hour before you return from work.
• Energy Monitoring: An energy consumption panel gives you a detailed view of your live and recorded energy usage from devices controlled by Shelly products. The information is stored in a free cloud and fully accessible to you for further analysis of your energy consumption habits.
• Works with Alexa: The Shelly Smart Control app is natively compatible with Amazon Alexa.

Contents

• Shelly 1PM Gen4 Smart Switch with Power Monitoring
• Manual

NOTE: Requires connection to a Wi-Fi network.

Shelly Provides A 100% Wireless Smart Home

Shelly creates innovative and affordable smart home devices for residential and business applications. Shelly, formerly Qubino, now focuses on providing Wi-Fi and Z-Wave compatible smart home solutions. Shelly devices are among the smallest automation control devices in the world, allowing them to find their place in nearly any sized smart home installation. Shelly utilizes the latest technologies to deliver superior automation, safety, and energy efficiency to their customers without breaking down their walls or bank accounts.
