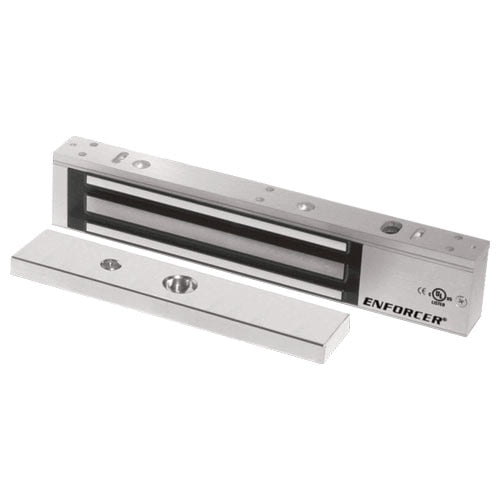

  • Seco-Larm Enforcer Electromagnetic Lock, Bond Sensor, 600 Lbs.

    SEE941SA600PQ

    Built-In Status LED & Bond Sensor To Show Locking Status

    The Seco-Larm Electromagnetic Lock is the ideal way to secure a door against unauthorized entry. When power is applied to the electromagnetic lock, it creates an extremely strong magnetic field. The electromagnet is strongly attracted to the steel armature plate which is mounted on the secured door. Once the electromagnet is deactivated, the door will function normally with no residual magnetism.

    • Anodized aluminum
    • No residual magnetism
    • MOV surge protection
    • Adjustable mounting bracket
    • Complete mounting hardware for typical installations
    • "L" bracket and "Z" brackets available for easy mounting
    • 12/24VDC selectable
    • Detachable faceplate
    • Built-in dual-colored status LED and bond sensor to show locking status:
      • Green: Door is closed and locked
      • Red: Door not closed and/or locked
    • Manufacturer Part #: E-941SA-600PQ
    • Holding force: 600-lb (272kg)
    • Current draw: 500mA@12VDC, 250mA@24VDC
    • Operating voltage: 12 or 24 VDC ±10%
    • Temperature: 14° ~ 131° F (-10° ~ 55° C)
    • Magnet size: 9-7/8" x 1-1/16" x 1-5/8" (250 x 27 x 42 mm)
    • Armature size: 7-1/4" x 1/2" x 1-1/2" (185 x 12 x 38 mm)
    • Certification: UL, ULC, CE
    • RoHS: compliance Yes
    • Bond sensor: Yes
    • Status LED: Yes
    • Warranty: 1 Year
