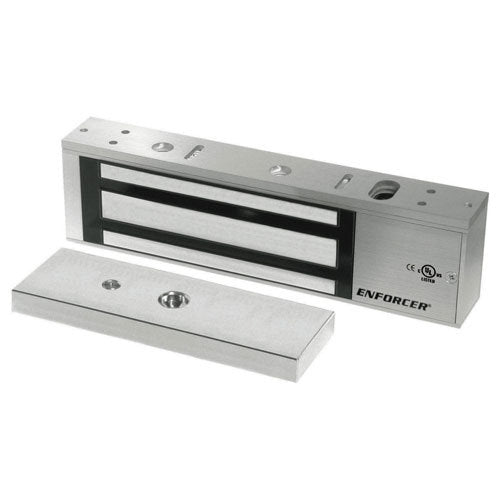

  • Seco-Larm Enforcer Electromagnetic Lock, 1,200 Lbs.

    SEE941SA1200

    Notify me when this product is available:

    Ultra-Strong Holding Force For Heavy Duty Applications

    With 1,200 pounds (545kg) of electromagnetic holding force, the Seco-Larm Enforcer Electromagnetic Lock, 1,200 Lbs. is ideal for securing high-security doors in heavy duty applications. This premium mag-lock is housed in anodized aluminum and features MOV surge protection to ensure long-term reliability. It also comes with a detachable faceplate, an adjustable mounting bracket, and all mounting hardware, making installation quick and easy.

    • Secures a door with 1,200 pounds (545kg) of holding force
    • Reliable security with MOV surge protection
    • Powered by 12 or 24 VDC
    • All mounting hardware included

    Seco-Larm's E-941SA series of electromagnetic locks provide an ideal solution for securing a door, cabinet or drawer against unauthorized entry. When the electromagnetic lock is powered, a strong magnetic field is created to attract the lock to a s

    Parts List

    • Mounting plate
    • Electromagnet
    • Armature plate
    • Armature screw
    • (2) Steel washers
    • Rubber washer
    • Door spacer
    • Sexnut bolt
    • (2) Guide pins
    • (4) Long self-tapping screws
    • (2) Short self-tapping screws
    • (2) Hex-head mounting screws
    • (2) Tamper caps
    • (2) Allen wrenches

    Technical Details

    • Manufacturer Part #: E-941SA-1200
    • Magnet Size: 10-1/2 x 1-5/8 x 2-5/8 inches (268 x 42 x 67mm)
    • Armature Size: 7-1/4 x 5/8 x 2-3/8 inches (185 x 16 x 61mm)
    • Holding Force: 1,200 pounds (545kg)
    • Current Drain: 500mA/12VDC, 250mA/24VAC
    • Voltage Tolerance: ± 10 percent
    • Temperature: -13 to 131 degrees F (-25 to 55 degrees C)
    • Weight: 10.46 pounds (5kg)
    • Certifications: UL, ULC, UL 864 (Fire Al
