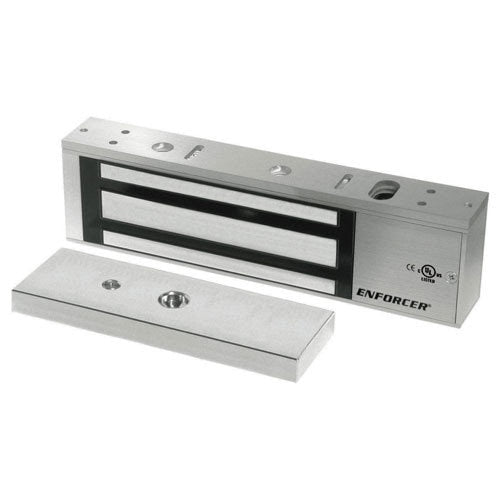

  • Seco-Larm Enforcer Electromagnetic Lock, Bond Sensor, 1,200 Lbs.

    SEE941SA1K2PQ

    Notify me when this product is available:

    Dual-Color Status LED & Bond Sensor Show Locking Status

    The Seco-Larm Enforcer Electromagnetic Lock with Bond Sensor is the ideal way to secure a door against unauthorized entry. When power is applied to the electromagnetic lock, it creates an extremely strong magnetic field. The electromagnet is strongly attracted to the steel armature plate which is mounted on the secured door. Once the electromagnet is deactivated, the secured door will function normally without any residual magnetism.

    • Anodized aluminum.
    • No residual magnetism.
    • MOV surge protection.
    • Adjustable mounting bracket.
    • Complete mounting hardware for typical installations.
    • "L" bracket and "Z" brackets available for easy mounting.
    • 12/24VDC selectable.
    • Detachable faceplate.
    • Built-in dual-color status LED and bond sensor to show locking status:
      • Green: Door is closed and locked
    • Manufacturer Part #: E-941SA-1K2PQ
    • Holding force: 1,200-lb (545kg)
    • Current draw: 500mA@12VDC, 250mA@24VDC
    • Operating voltage: 12 or 24 VDC ±10%
    • Temperature: 14° ~131° F (-10° ~55° C)
    • Magnet size: 10-1/2"x1-5/8"x2-5/8" (268x42x67 mm)
    • Armature size: 7-1/4"x5/8"x2-3/8" (185x16x61 mm)
    • Certification: UL, ULC, CE
    • RoHS compliant: Yes
    • Bond sensor: Yes
    • Status LED: Yes
    • Warranty: 1 Year
