    Home / Chief Manufacturing / Chief FUSION Tilt Wall Display Mount, 37-63 In.

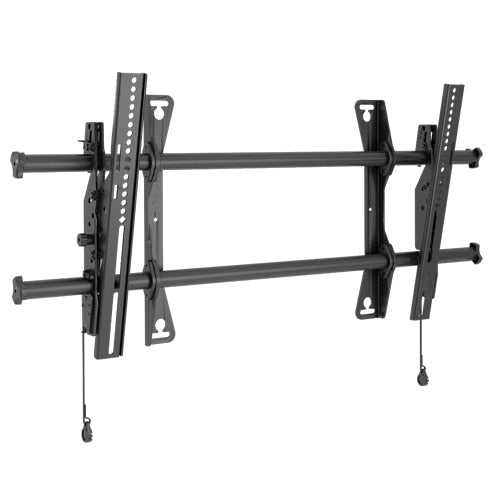

    Chief FUSION Tilt Wall Display Mount, 37-63 In.

    Chief FUSION Tilt Wall Display Mount, 37-63 In.

    CMLTA1U

    $315.67

    Notify me when this product is available:

    Mount a Large Flat Screen Display With Tilt

    The Chief FUSION Tilt Wall Display Mount (37-63 In.) provides a secure, tilting landscape-oriented mounting solution for a large flat screen TV. The mount supports 37-63" displays weighing up to 200 pounds and provides smooth up/down fingertip tilt up to 12 degrees, allowing users to achieve the ideal viewing angle. The mount can be locked into place at one of three tilt positions – 0 degrees, 6 degrees, and 12 degrees – for increased stability. Additionally, the mount's Centris low-profile tilt feature uses the center of gravity to balance the display while maintaining a low profile.

    • Mounts a 37-63" flat screen TV up to 200 pounds with tilt capability
    • Allows post-installation "centerless" lateral shift up to 17.4 inches
    • Lock-down screws on the sliding bar keep the mount stable
    • Built-in cable stand for easy access under the disp
    • Manufacturer Part #: LTA1U
    • Color: Black
    • Lateral Shift: 17.4 inches (441 mm)
    • Maximum Screen Thickness: 6 inches
    • Minimum Depth: 2 inches (51 mm)
    • Mounting Pattern Compatibility (Universal Versions): 100 x 100mm – 870 x 400mm
    • Orientation: Landscape
    • Overall Dimensions: 16.5(H) x 34.75(W) x 2.0(D) inches (419 x 883 x 51 mm)
    • Shipping Weight: 18.34 pounds
    • Solution Type: Universal
    • Tilt: +2° , -12°
    • Typical Screen Sizes: 37 to 63 inches
    • Wall Stud Compatibility: 16-32 inches
    • Weight Capacity: 200 pounds (90.9kg)
    • Certifications: UL Listed
    • Warranty: 10 Years

    »Chief LTA1U Fusion Tilt Wall Display Mount Installation Manual (.pdf)»Chief LTA1U Fusion Tilt Wall Display Mount Technical Drawing (.pdf)
